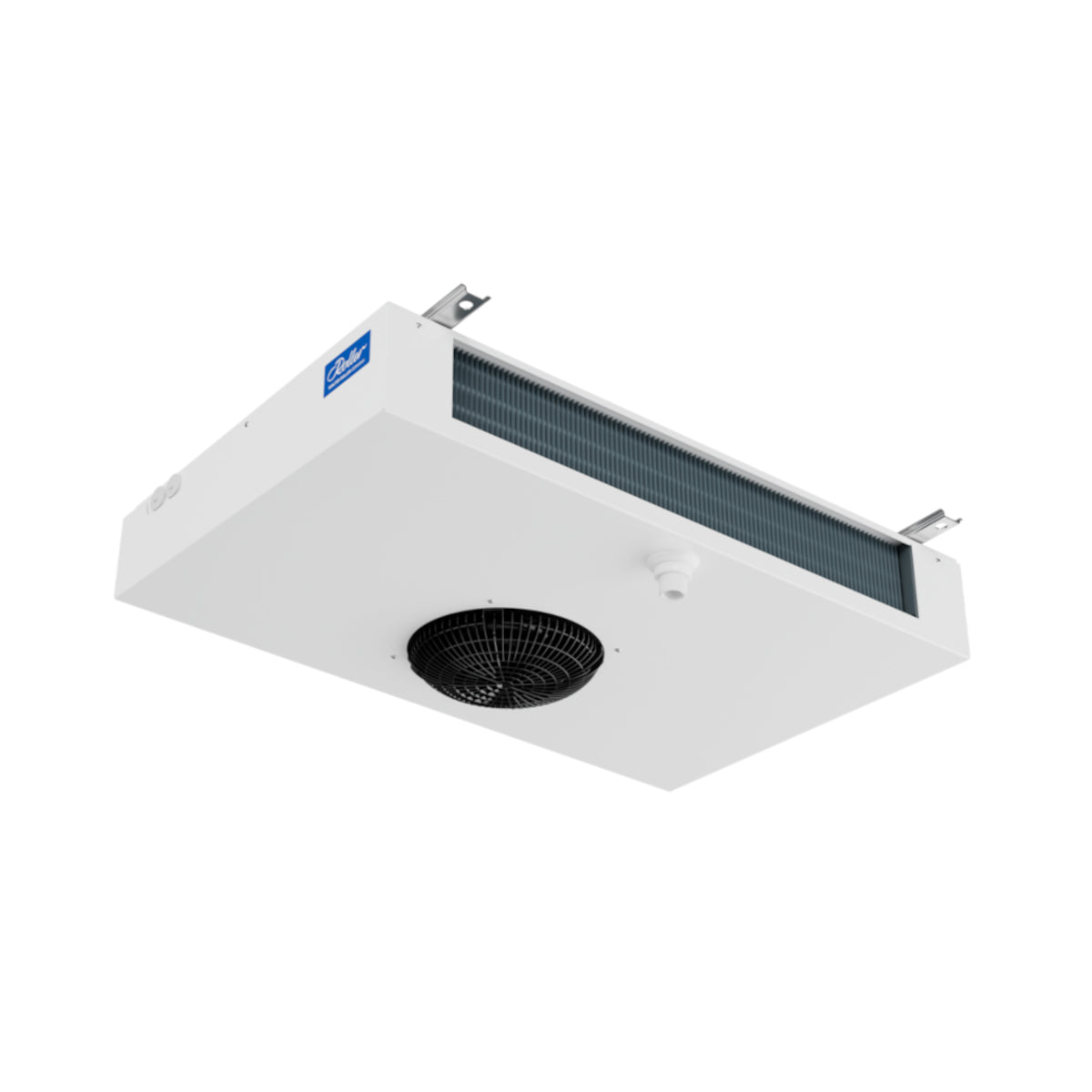

FKNT 414 MultiRef Air Cooler Roller

FKNT 414 MultiRef Air Cooler Roller with Defrost Heater

The FKN is specially designed for small, walk-in cold rooms and, due to its complete corrosion protection coating, is particularly suitable for the hygienic requirements of fresh food. The powerful diagonal fan ensures long-lasting cooling phases with uniform air distribution in the cold room.

Technical Data

• Capacity R290: 0.822 kW at -8°C to 8K, 0.612 kW at – 25°C to 7K
• Capacity R513A: 0.801kW at -8°C to 8K, 0.566 kW at – 25°C to 7K
• Capacity R1234yf: 0.776 kW at -8°C to 8K, 0.542 kW at – 25°C to 7K
• Capacity R452A: 0.829 kW at -8°C to 8K, 0.624 kW at – 25°C to 7K
• Capacity R454C: 0.884 kW at -8°C to 8K, 0.663 KW at – 25°C to 7K
• Fin spacing: 4mm
• Cooling surface area: 3.8 m²
• Air flow: 380 m³/h
• Throw: 5m
• Inlet/Outlet connections: 10 mm / 10 mm
• Number x Diameter Fans: 1 x 200 mm
• Fan Voltage: 100-240V 50/60 Hz
• Fan Speed: 1500 rpm
• Fan Power: 10 W
• Airflow: 0.25 A
• Tube volume: 1.0 dm³
• Dimensions (W x H x L): 472 x 145 x 748 mm
• Sound pressure level: 47 db(A)
• Sound power level: 65 db(A)

Replaces the ceiling evaporator FKNT 614 ECD Roller 0013318
