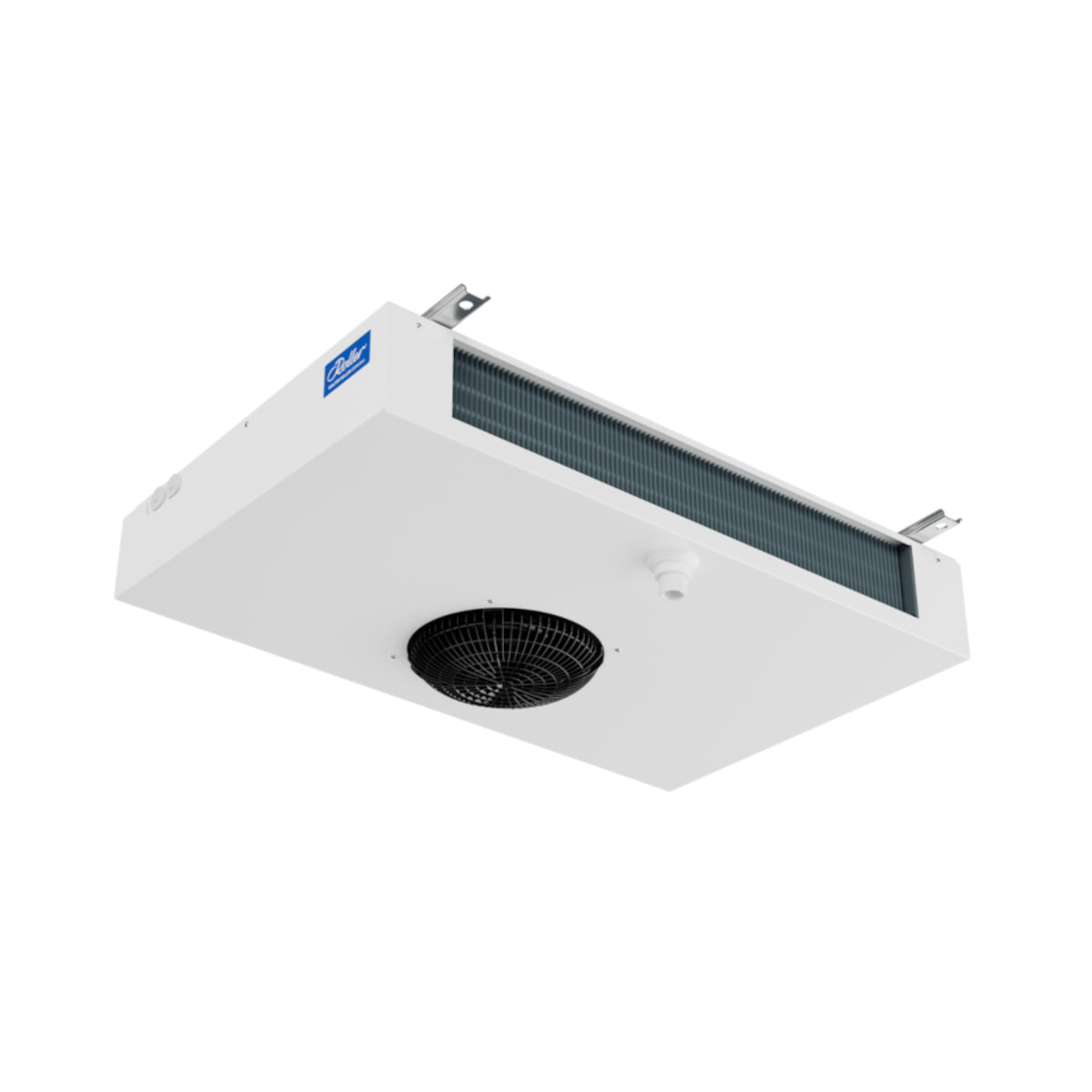

FKNT 413 MultiRef Air Cooler Roller

FKNT 413 ECD Refrigerated Air Cooler with Defrost Heater

The FKN is specially designed for small, walk-in cold rooms and, thanks to its complete corrosion-resistant coating, is particularly suitable for the hygienic requirements of fresh food. The powerful diagonal fan ensures long-lasting cooling phases with uniform air distribution in the cold room.

Technical Data

• Capacity R290: 0.608 kW at -8°C to 8K, 0.489 kW at – 25°C to 7K
• Capacity R513A: 0.586 kW at -8°C to 8K, 0.445 kW at – 25°C to 7K
• Capacity R1234yf: 0.640 kW at -8°C to 8K, 0.479 kW at – 25°C to 7K
• Capacity R452A: 0.606 kW at -8°C to 8K, 0.490 kW at – 25°C to 7K
• Capacity R454C: 0.646 kW at -8°C to 8K, 0.521 KW at – 25°C to 7K
• Fin spacing: 4mm
• Cooling surface: 2.5 m²
• Air flow: 400 m³/h
• Throw distance: 5m
• Inlet/outlet connections: 10 mm / 10 mm
• Number x diameter of fans: 1 x 200 mm
• Fan voltage: 100-240V 50/60 Hz
• Fan speed: 1100 rpm
• Fan power: 10 W
• Airflow: 0.25 A
• Tube volume: 0.7 dm³
• Dimensions (W x H x L): 472 x 145 x 748 mm
• Sound pressure level: 47 db(A)
• Sound power level: 65 db(A)

Replaces ceiling evaporator FKNT 614 ECD Roller 0013317
