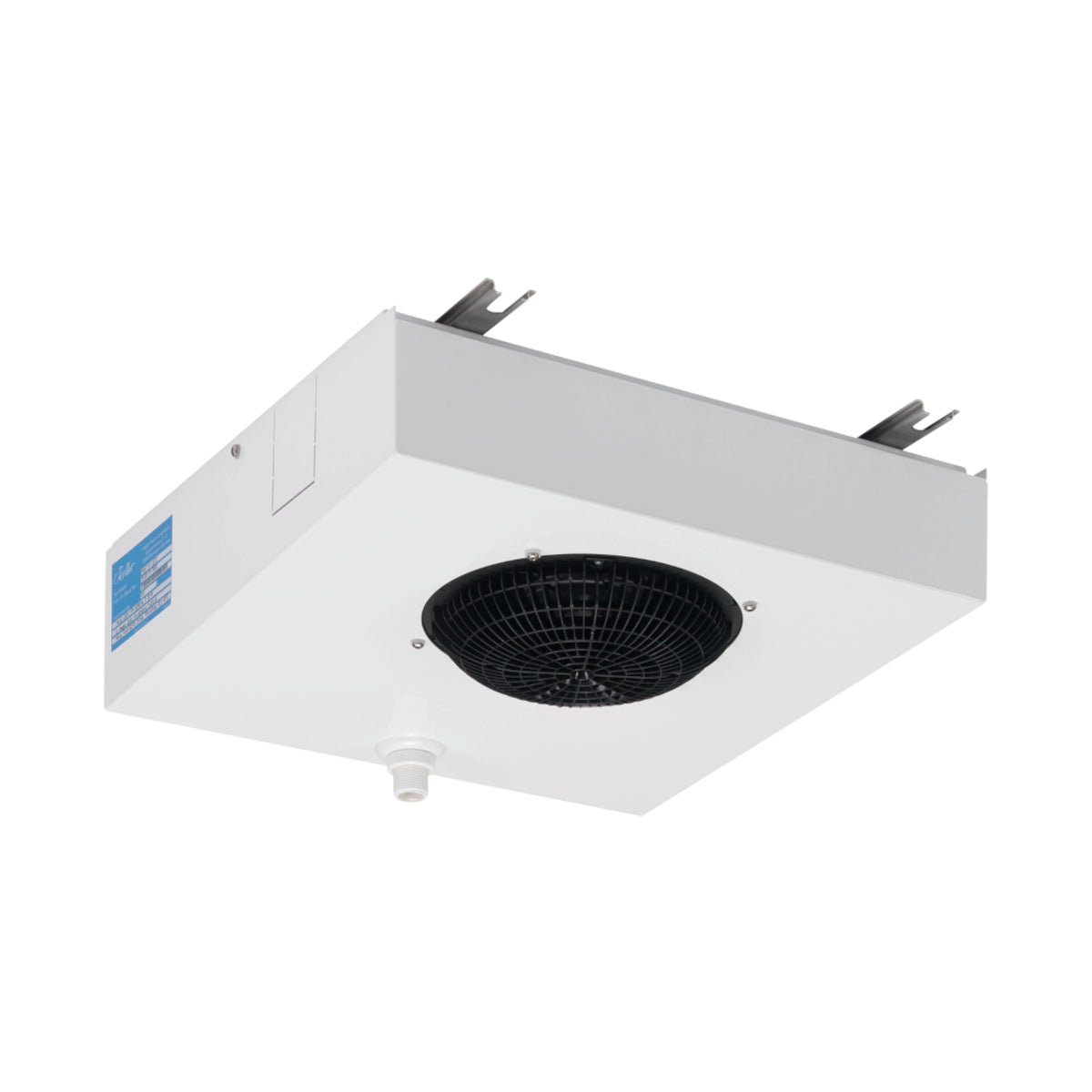

FKN 611 ECD Air Cooler Roller

FKN 611 ECD Air Cooler Roller 230V | 0013329

The FKN is specially designed for small, walk-in cold rooms and is particularly suitable for the hygienic requirements of fresh food due to its complete corrosion protection coating. The powerful diagonal fan ensures long-lasting cooling phases with uniform air distribution in the cold room.

Technical Data

• Power 0.40 kW at DeltaT = 8K To = -8°C
• Power 0.31 kW at DeltaT = 7K To = -25°C
• Energy efficiency class: B
• Fin spacing: 4 to 6 mm
• Cooling surface: 0.9 m²
• Airflow: 240 m³/h
• Throw distance: 4 m
• Connections inlet/outlet: 10 mm / 10 mm
• Number x Diameter Fans: 1 x 200 mm
• Fan Voltage: 230 V 50/60 Hz
• Fan Speed: 1100 rpm
• Fan Power: 10 W
• Airflow: 0.08 A
• Cooling capacity from 0.2 to 2 kW
• Temperature range: FKN: 0 to 40 ˚C
• Defrosting: Electric and hot gas
• Operating pressure up to 25 bar / 80 bar with CO2

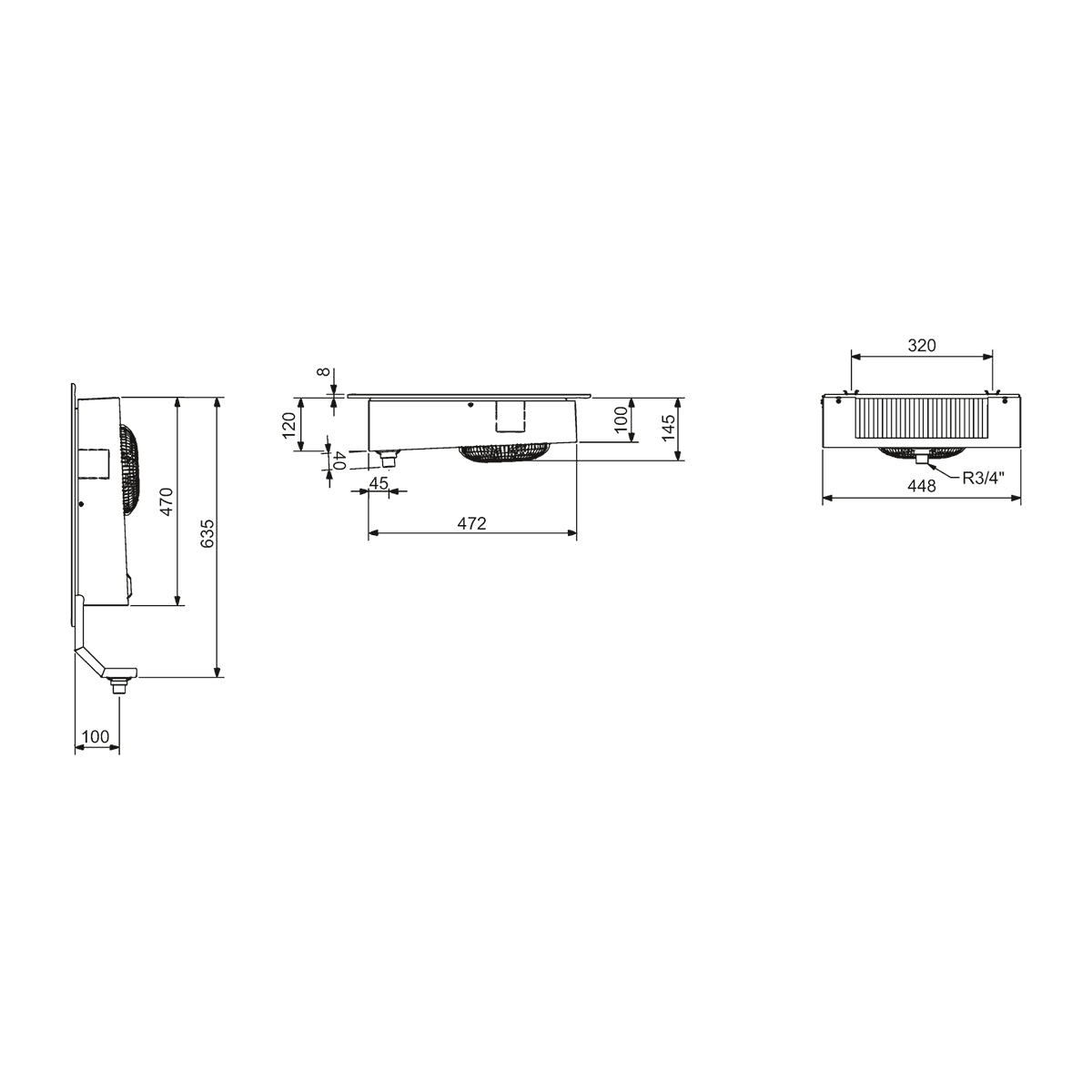

• Dimensions (H x L x D): 145 x 448 x 472 mm
• Sound pressure level: 36 db(A)
• Sound power level: 54 db(A)
• OEM number: 0013329
