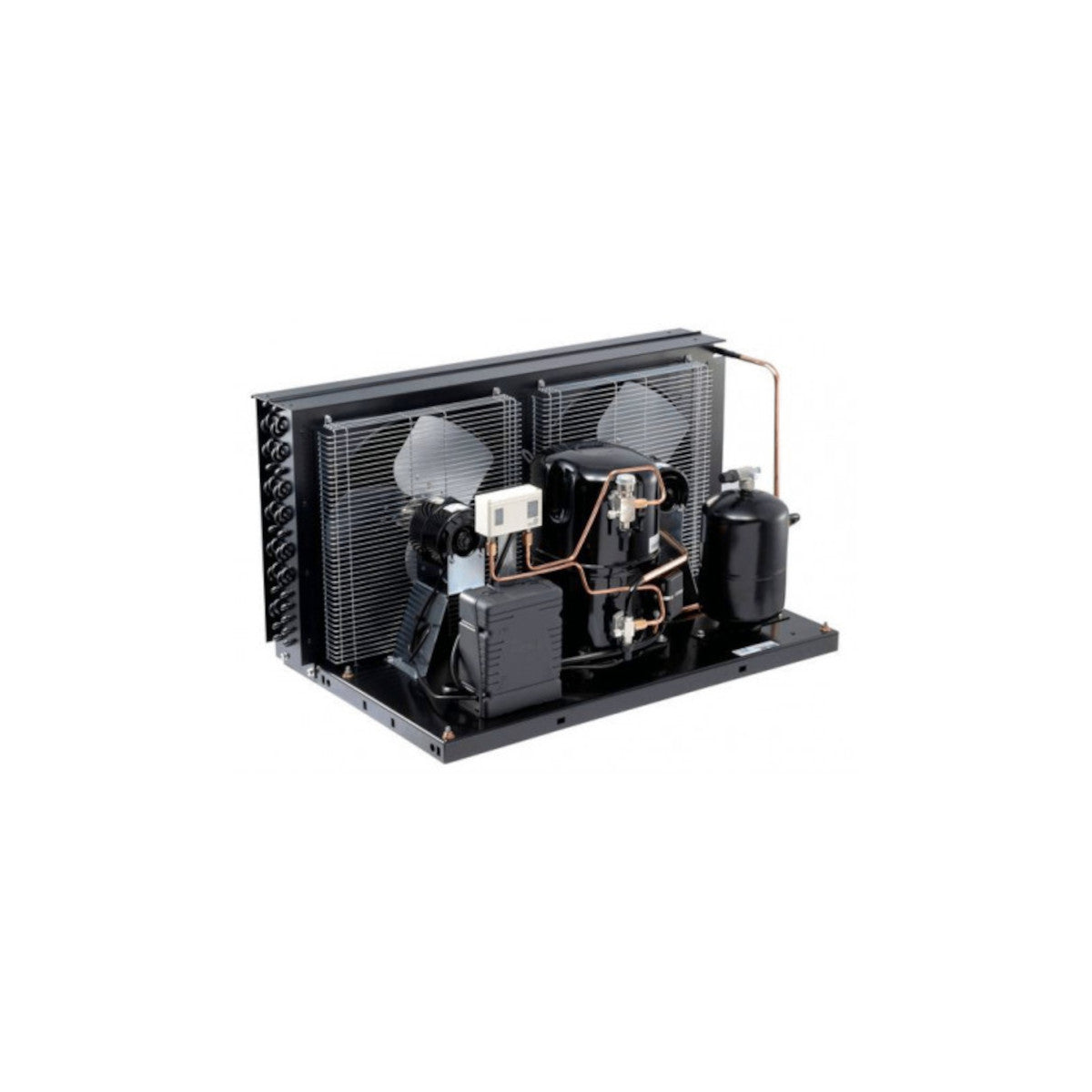

Condensing Unit FHT4538ZHR-XG
Fully hermetic condensing unit FHT4538ZHR-XG by Tecumseh for high-pressure applications in a compact design. Replaces models TFHT4540ZHR and TFH4540ZHR.
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: TRI
- Refrigerant: R452A, R404A, R448A, R449A
- Power supply: 380-460V/3/50-60Hz
- Air flow: 3300 m³/h
- Max. current consumption: 9.7 A
- Suction line: 7/8"
- Discharge line: 1/2"

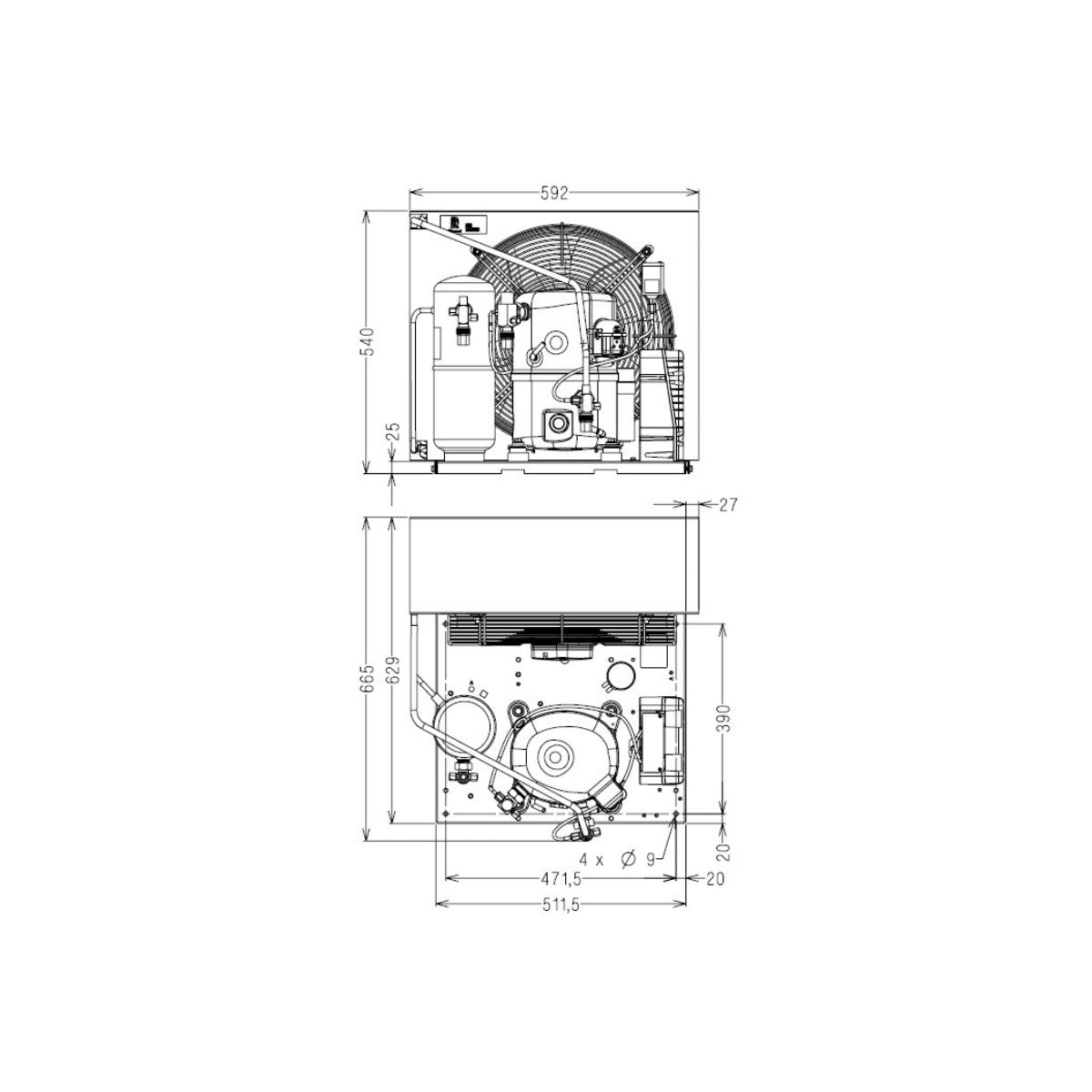

- Dimensions (LxWxH): 665 x 592 x 540 mm
- long service life
- tested brand quality
- efficient and consumption-friendly
