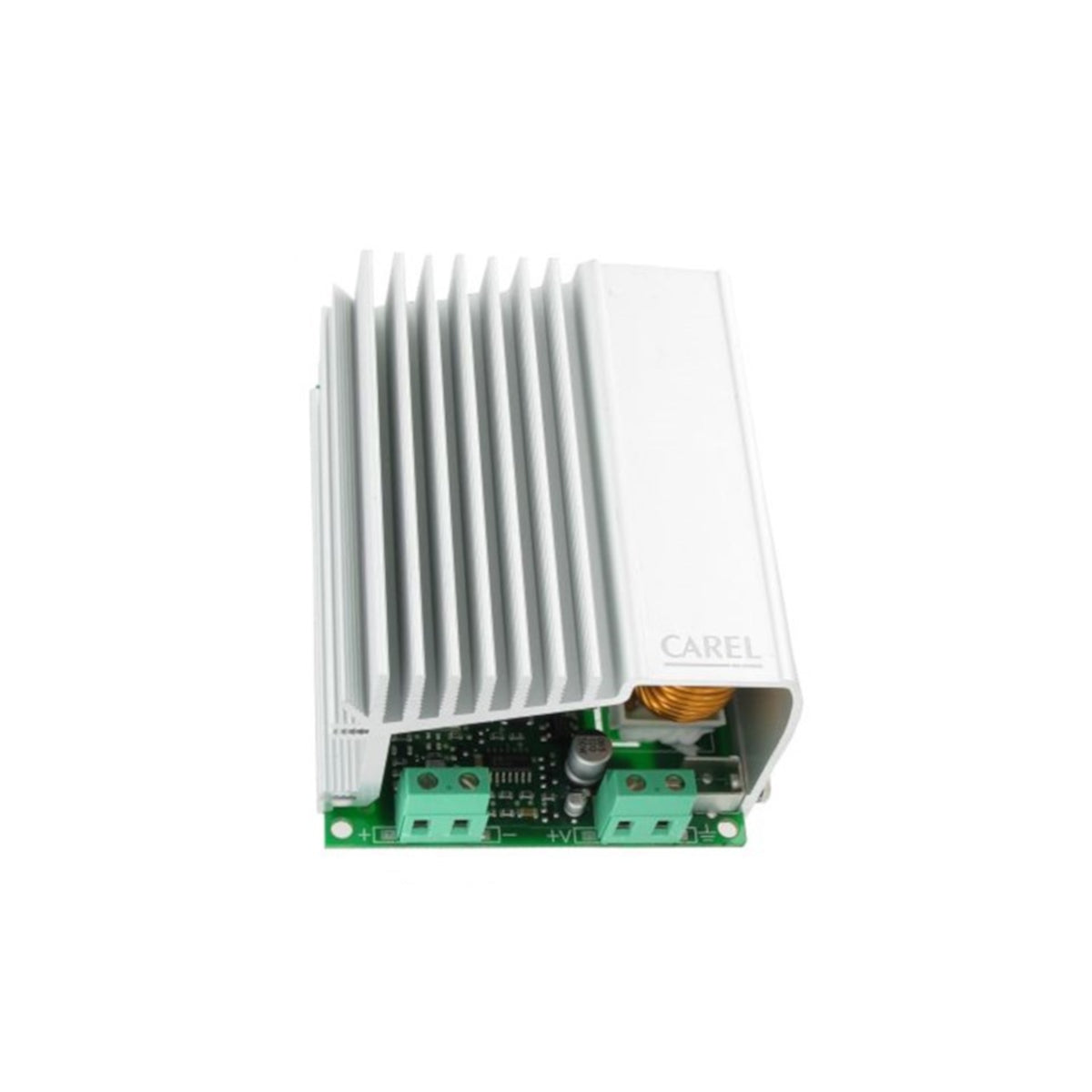

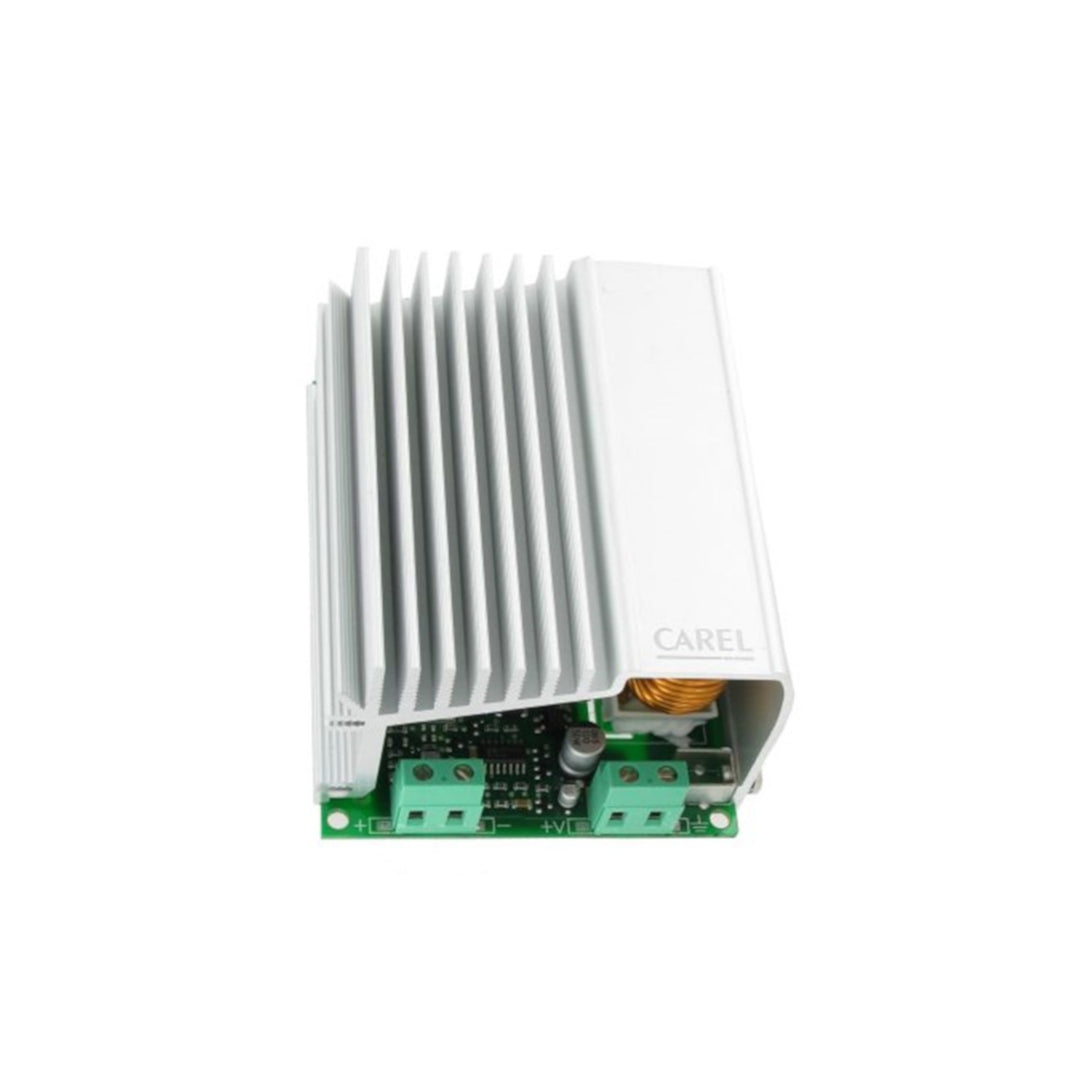

FCSM122300 Carel

FCSM122300 Carel Speed Controller 12A, 230V, 50/60Hz, IP00, with 0-10V input

Technical Data

• Operating voltage: 230V
• Input signal: 0-10V
• Operating temperature: -10 - 50 °C, max 90% r.H.
• Protection class: IP00
• Dimensions: 82 x 107 x 58 mm

FCSM speed controllers are suitable for stepless speed control of asynchronous motors approved for phase-cut control. Application examples include fans, pumps, and mixers. All Carel speed controllers are controlled by an external control unit. The FCSM is connected to an external controller with a continuous 0-10 V output such as pRack, pCO5, or IR33 Universal. For manual speed preselection, a 10 kOhm potentiometer can be connected to all FCSMs. When selecting the size of the speed controller, any increased current consumption of the connected motors in the low speed range (lower operating voltage) must be taken into account. Function: All speed controllers operate on the phase-cut principle, allowing stepless speed control between 0-230V. The motors to be controlled should correspond to class H and must be approved for phase-cut control. Mounting: FCSM speed controllers for 230 V are intended for installation in control cabinets or equipment housings. Sufficient air circulation is required for cooling the controllers. Installation must be carried out in such a way that the cooling fins are vertical. The setting for "Min-mode" (min-speed) or "Cut-off operation" (CUT-OFF) is done in the external controller for the FCSM. Electrical connection: Please note the phase equality for the 230V models – the control transformer for the controlling regulator (e.g. Microrack or Microchiller² SE) must use the same phase.
