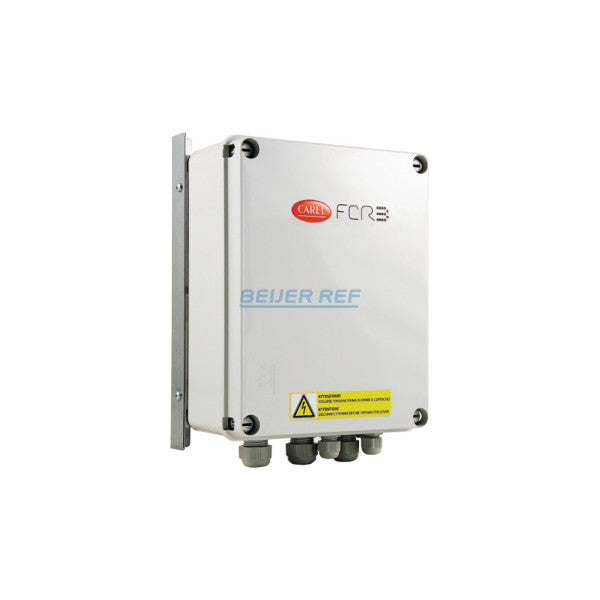

FCR3124020 3-400V/12A Carel

FCR3124020 Carel Speed Controller 12A, 400V/3/50-60Hz, IP55 0-10V

FCR Speed Controller 3-400V/12A FCR3124020 with 0-10V and PWM input

General Features:

• Operating voltage: 400V/3/50-60Hz
• Input signal: 0-10V
• Operating temperature: -20 - 50 °C, max 90% RH
• Protection class: IP55
• Dimensions: 205 x 280 x 130 mm

FCR speed controllers are suitable for stepless speed control of asynchronous motors approved for phase-angle control. Examples of applications include fans, pumps, and mixers. All Carel speed controllers are controlled by an external control unit. The FCSM is connected to an external controller with a continuous 0-10 V output, such as pRack, pCO5, or IR33 Universal. A 10 kOhm potentiometer can be connected to all FCSMs for manual speed selection. When selecting the size of the speed controller, any increased current consumption of the connected motors in the low speed range (lower operating voltage) must be taken into account.
