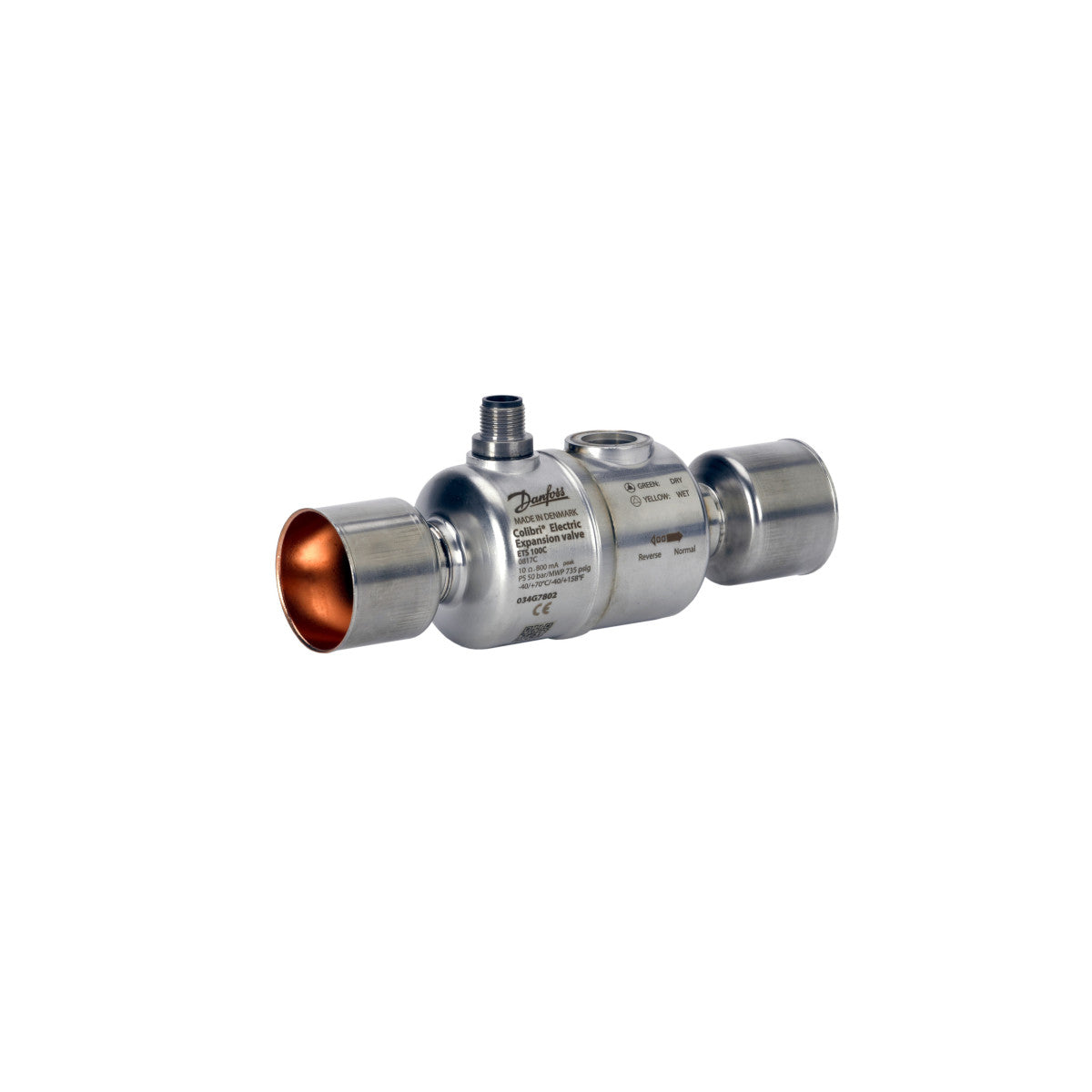

Expansion valve ETS 50C 034G7702 Danfoss

Expansion valve ETS 50C Danfoss 034G7702 \\replaces ETS 50B Danfoss 034G1706, 1 1/8" x 1 1/8"

tested brand quality

durable and robust

easy installation

excl. VAT incl. VAT

489,00 € 581,91 € incl. VAT

489,00 € excl. VAT 581,91 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 9050020 Manufacturer Danfoss

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Expansion Valve ETS 50C 1 1/8 x 1 1/8 Danfoss 034G7702

Danfoss Colibri ETS 50C with sight glass, electric expansion valve ETS 50C Danfoss 034G7702 replaces the ETS 50B Danfoss 034G1706, 1 1/8" x 1 1/8" stepper motor valve with sight glass and moisture indicator.

Technical Data

Maximum Opening Differential Pressure (MOPD): 40 bar
Inlet connection: 28mm, 1 1/8"
Outlet connection: 28mm, 1 1/8"
Max. admissible operating pressure: 50 bar
Refrigerant temperature: –40 - +70°C
Fluid group: II
Motor protection class: IP 67
Approvals: CE, EAC, LLC CDC TYSK
Electrical connection: M12 plug (external)
Housing and AST motor housing in brass, bimetal connections (stainless steel/copper)
Nominal capacity: 210.00 kW (R134a) / 282.00 kW (R290) / 323.00 kW (R410A) / 294.00 kW (R407C)

Refrigerants: R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22 R227ea R23 R245fa R290 R32 R404A R407A R407B R407C R407F R407H R410A R412A R413A R417A R422A R422B R422D R427A R438A R442A R444B R447A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R500 R502 R507A R512A R513A R513B R515A R515B R516A R600 R600a
