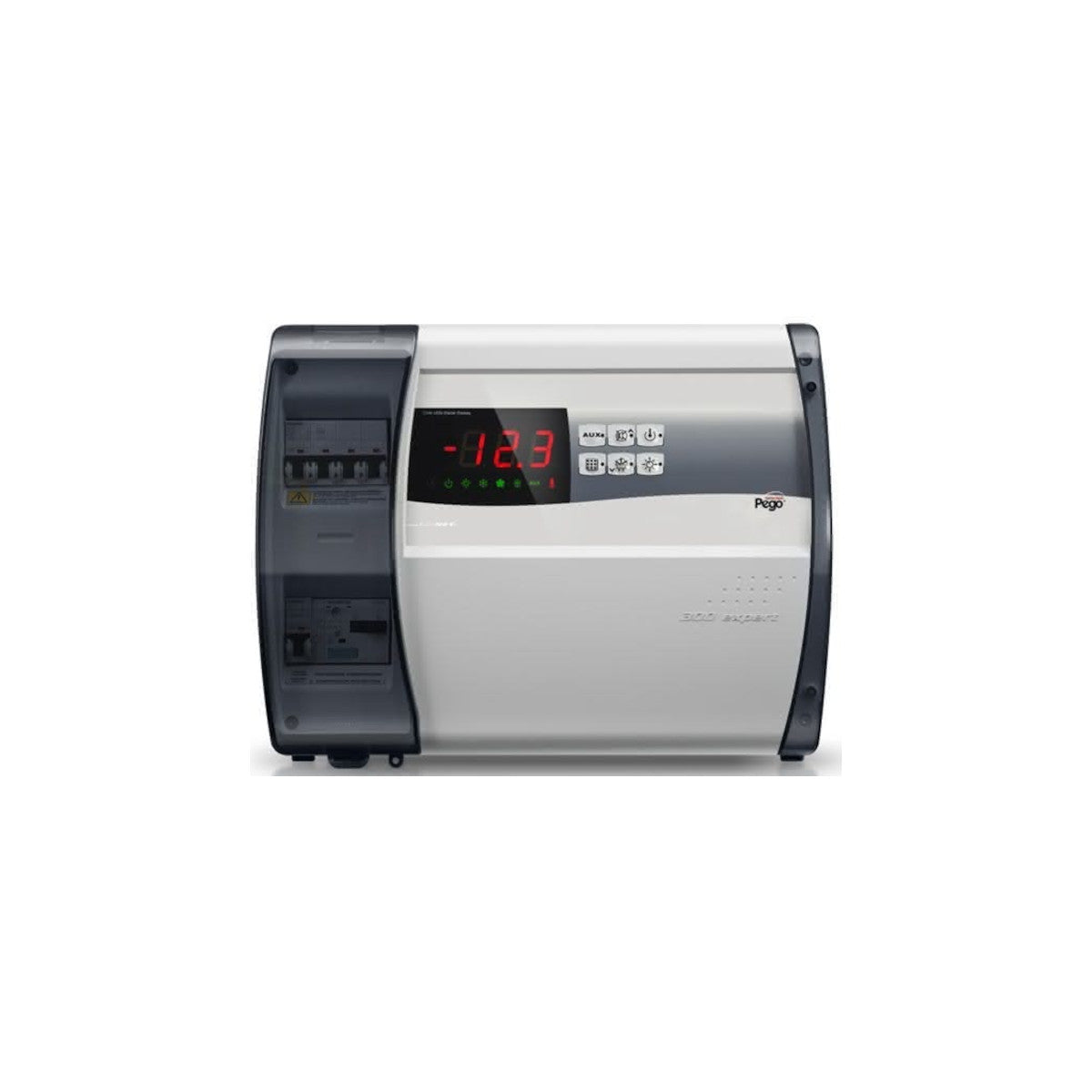

ECP300 Expert VD4 400V Pego

ECP300 Expert VD4 Control Cabinet 400V incl. 2xNTC for normal and deep freezing, max. compressor: 3 kW, evaporator fan: 500 W, defrost heater 6 kW

A simple and compact refrigeration system controller for regulating refrigeration systems in positive and negative temperature ranges. The ECP 300 Expert is a microprocessor-controlled refrigeration system controller for regulating room temperature and the evaporator fan. The refrigeration system controller has five independent relay outputs, one each for the compressor, evaporator fan, defrost heater, alarm output, and cold room light. In addition, the ECP 202 Expert refrigeration system controller is equipped with two potential-free input contacts (door contact switch and compressor protection) that can be configured accordingly.

Technical Data

• Dimensions: W x H x D: 400 x 300 x 135 mm
• Housing: ABS plastic housing
• Protection class: IP 65
• Power supply: 400V/3/50 Hz
• Sensor inputs: 3 x NTC
• Compressor output: 3000 W (AC 3)
• Defrost heater output: 6000 W (AC 1)
• Condenser fan output: 800 W (1 ~)
• Evaporator fan output: 500 W (1 ~)
• Alarm output: 100 W (AC 1)
• Light output: 800 W (AC 1)
• Resolution: 0.1°C
• max. power consumption defrost heater: 3 kW
• max. power consumption fan: 0.5 kW
• max. power consumption compressor: 1.5 kW
• Ambient temperature: - 5°C to + 70°C
• Temperature measuring range: - 45°C to + 45°C
Motor protection: Kriwan

General Features

• Direct control of the compressor, evaporator fan, defrost heater, cold room light, and alarm output
• Control unit in Pego design
• Compact self-extinguishing ABS plastic housing with IP65 protection class
• Status messages and alarm messages are indicated via LED
• Two NTC sensors are included in the delivery
• Power section in wiring technology
