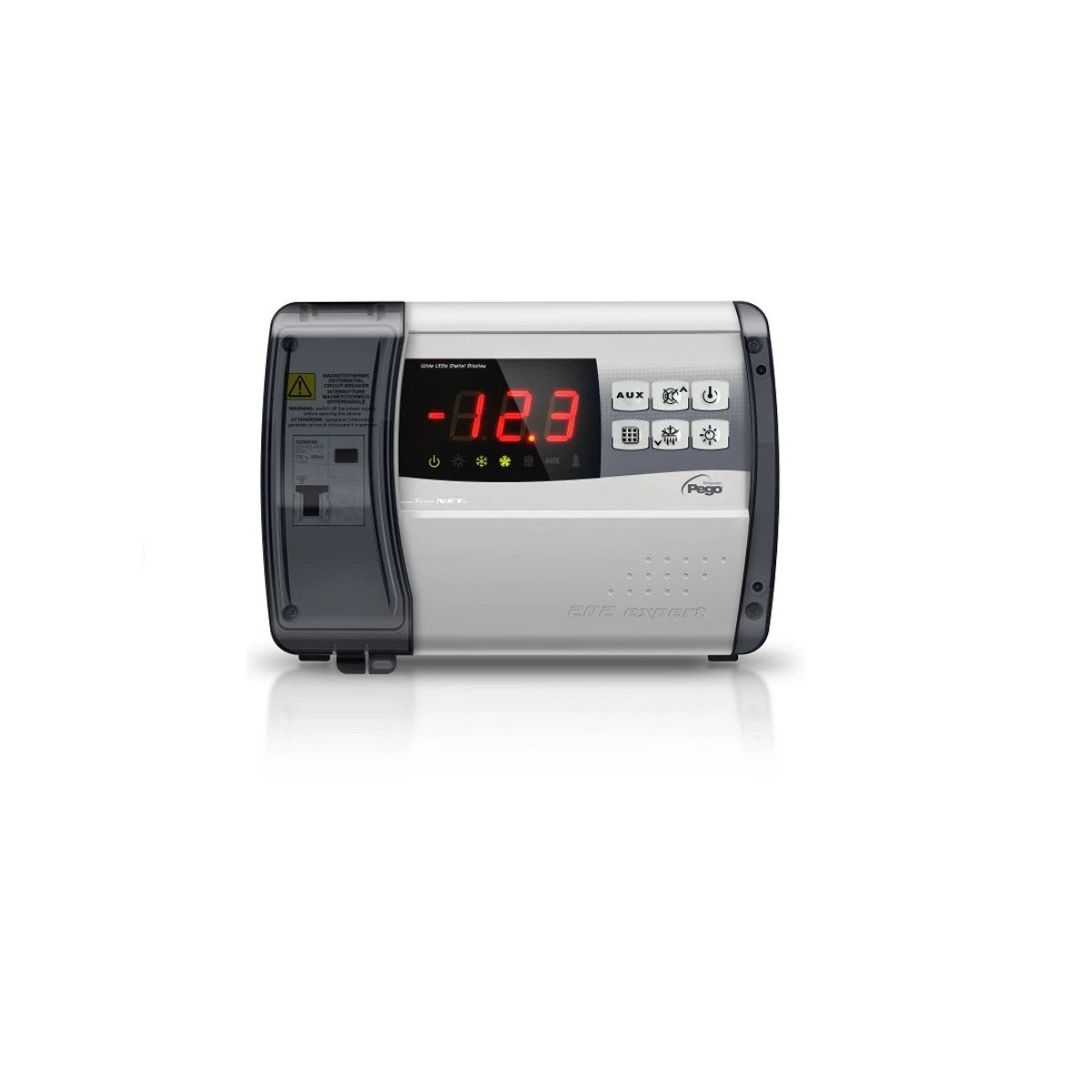

ECP202 Expert 230V Control Cabinet Pego

Control Cabinet ECP202 Expert 230V for Normal and Deep Freezing incl. 2 NTC Sensors | Max. Compressor: 1.5 kW, Evaporator Fan: 500 W, Defrost: 3kW

Control cabinet ECP202 Expert replaces the ECP200 Expert. A simple and compact refrigeration control unit for regulating refrigeration systems in positive and negative temperature ranges. The ECP 200 Expert is a microprocessor-controlled refrigeration unit for regulating room temperature and the evaporator fan. The refrigeration control unit has five independent relay outputs, one each for the compressor, the evaporator fan, the defrost heater, the alarm output, and the cold room light. In addition, the ECP 202 Expert refrigeration control unit is equipped with two potential-free input contacts (door contact switch and compressor protection) which can be configured accordingly.

Technical Data

• Dimensions: W x H x D: 263 x 180 x 96 mm
• Housing: ABS plastic housing
• Protection class: IP 65
• Power supply: 230V/1/50 Hz
• Sensor inputs: 2 x NTC
• Compressor output: 1500 W (2 HP)
• Defrost heater output: 3000 W (AC 1)
• Fan output: 500 W (AC 3)
• Light output: 800 W (AC 1)
• AUX 1 output: potential-free
• AUX 2 output: potential-free
• Resolution: 0.1°C
• Max. power consumption defrost heater: 3 kW
• Max. power consumption fan: 0.5 kW
• Max. power consumption compressor: 1.5 kW
• Ambient temperature: - 5°C to + 70°C

General Features

• Direct control of the compressor, evaporator fan, defrost heater, cold room light, and alarm output
• Control unit in Pego design
• Compact self-extinguishing ABS plastic housing with protection class IP65
• Status messages and alarm messages are indicated via LED
• Two NTC sensors are included in the scope of delivery
• Power section in PCB technology
• Circuit breaker (2-pole) 16 A
