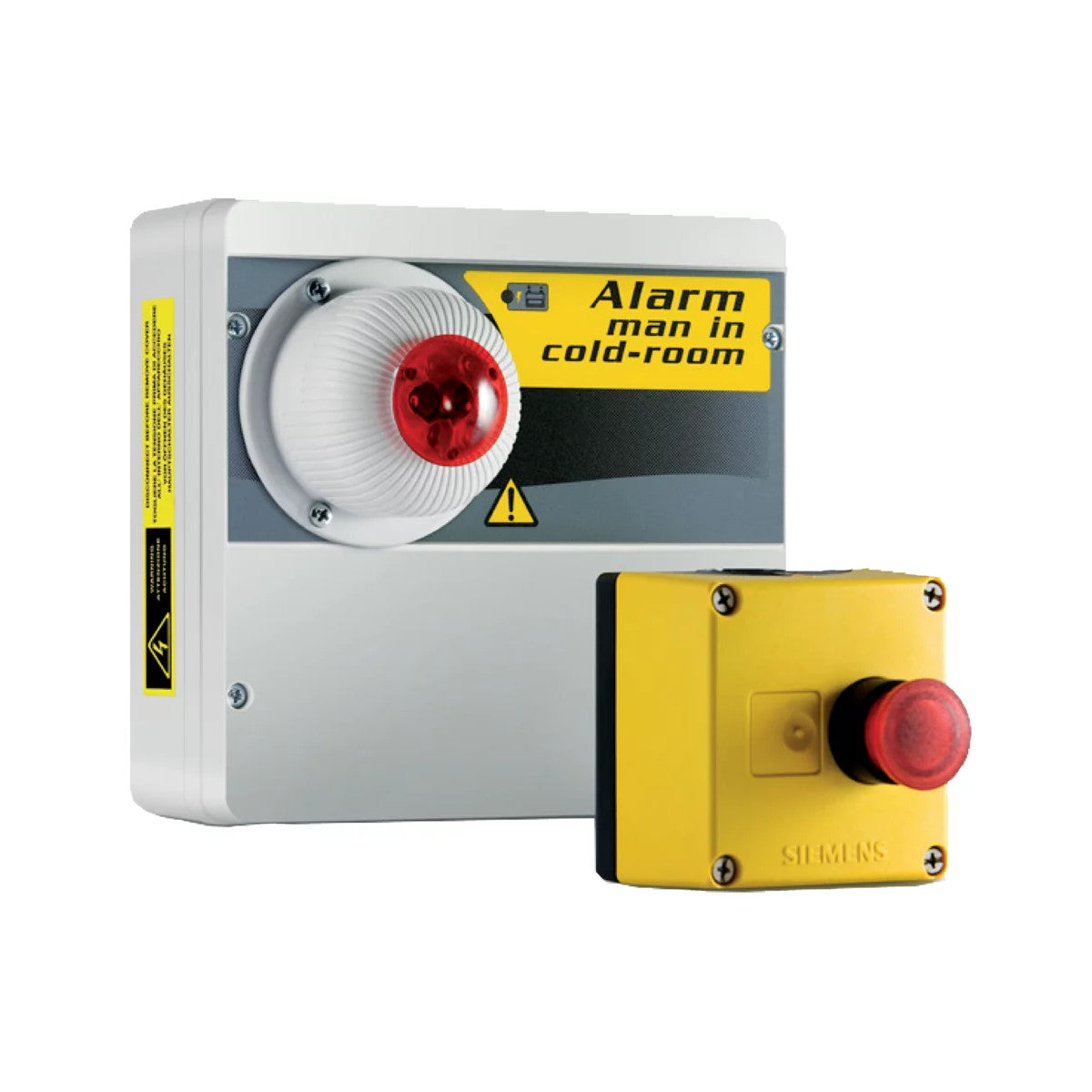

ECP-APE-03 Pego Personnel Alarm

Pego Man-Overboard Alarm Device ECP APE 03 with Illuminated Strike Button and Backup Battery SP1PAPE03-01

Technical Data

• Main power supply: 230V AC 50/60 Hz
• Maximum main supply consumption: 20 mA
• Backup battery: 12 VD C Ni-MH 1300 mAh
• Charge time completed: 110 h
• Operating autonomy: Operation with charged backup battery: approx. 14 hours. With 230VAC supply present: unlimited.
• Operating temperature: -5 to +45°C
• Acoustic properties: Type: piezoelectric
• Sound power: 90 dB at 1m
• Visual display: LED red flashing 12 VDC
• Emergency button in the cell: Illumination: LED red 12 Vdc
• NC contact
• Operating temperature: -25 to +70 °C
• Auxiliary relay: 8A AC1 (SPDT)
• Dimensions; Button: 68 x 68 x 53 mm / Control unit: 203 x 193 x 79 mm
• Protection class: Control unit: IP 43, Button: IP 65

Alarm system for freezer rooms with a volume of more than 10 m³ (compliant with EN 378-1:2016). An illuminated strike button for emergencies is to be installed inside the cell. It consists of an illuminated mushroom button with an NC contact. The operating element is illuminated by an LED and is continuously switched on so that it can also be seen in the dark.

The control unit for controlling the acoustic and visual alarm is to be mounted outside the cell. This consists of a siren and a flashing light for alarm indication, and also a backup battery for power failure. In addition, a potential-free contact (SPDT) is available, which can be used to switch off the refrigeration system, switch on the interior light of the cell, or activate other devices, such as a GSM modem for forwarding the alarm.
