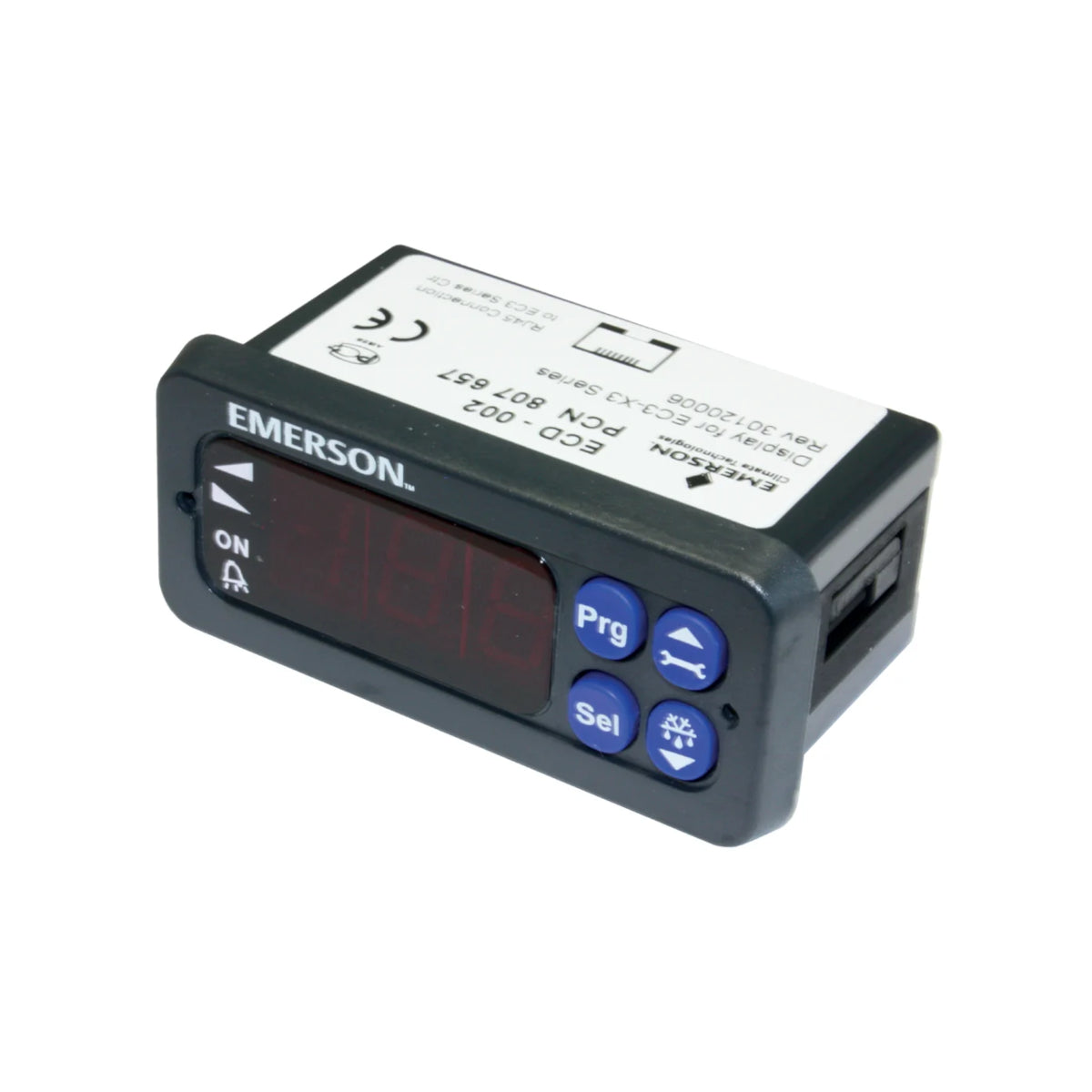

ECD-002 Display Unit 807657 Alco

Alco display unit ECD-002 807657

easy setup

appealing design

long-lasting and robust

excl. VAT incl. VAT

119,00 € 141,61 € incl. VAT

119,00 € excl. VAT 141,61 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 1019000 Manufacturer Alco

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Display Unit Display ECD-002 Alco 807657

Alco Display and Keypad Unit ECD-002 for EC3-X32 / EC3-X33 / EC3-D7X.

Technical Data

Display for ECX-X3 controllers
RJ45 interface for EC3 controllers
Power supply: via ECC-Nxx cable from the EC3 controller

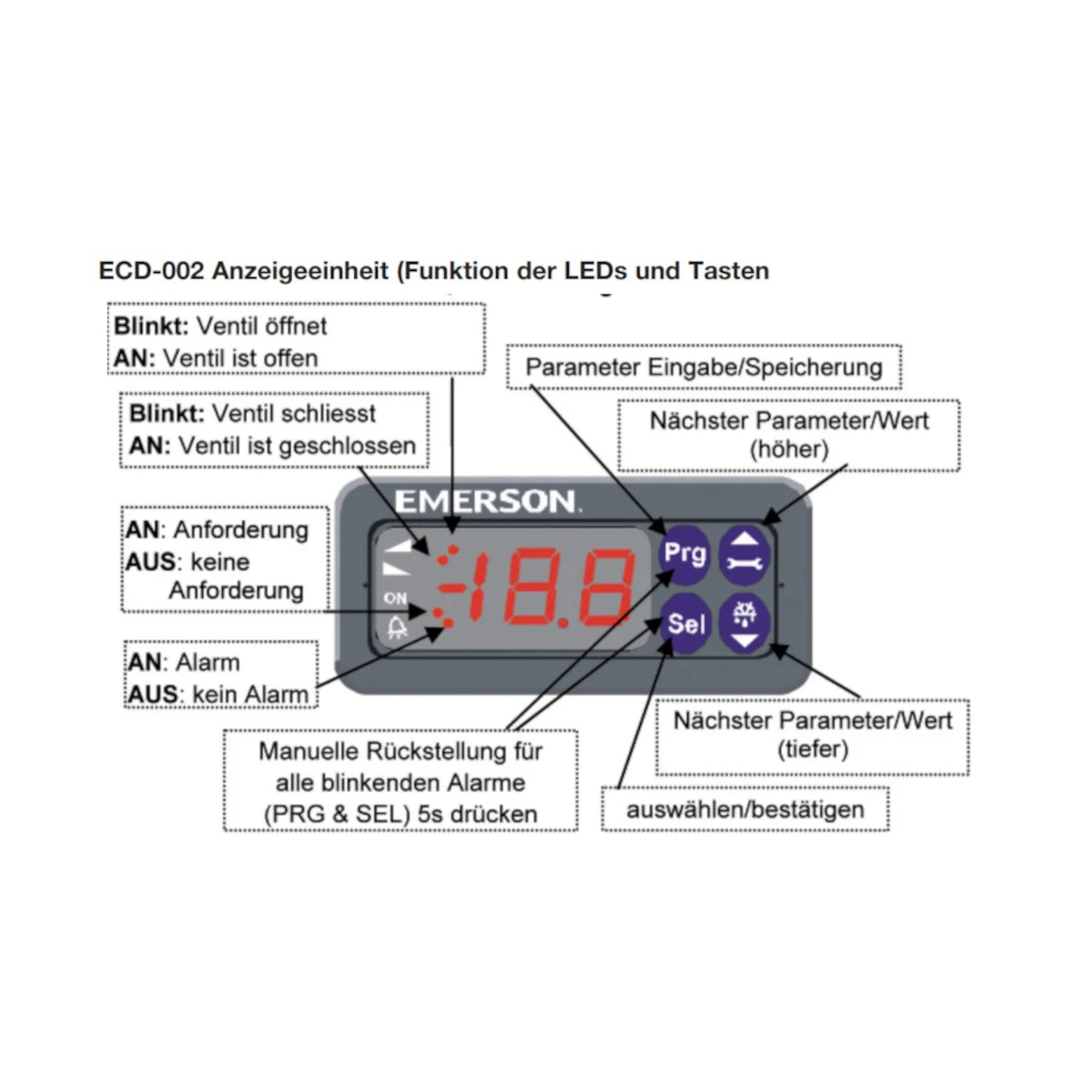

LEDs: Valve opens, Valve closes, Alarm, Request
LED display: numerical 2½-digit display, red, with automatic decimal point between ±19.9, switchable between °C and °F
Connection cable: ECC-Nxx or standard CAT5 cable with RJ45 connectors
Panel mount (71 x 29mm cutout)

The ECD-002 is only required for entering parameters during commissioning. Afterwards, it can be removed, but can also still be used for data and alarm display. The display can be switched from K/bar/°C to R/psig/°F. LEDs indicate the valve status, requests, and alarm messages.
