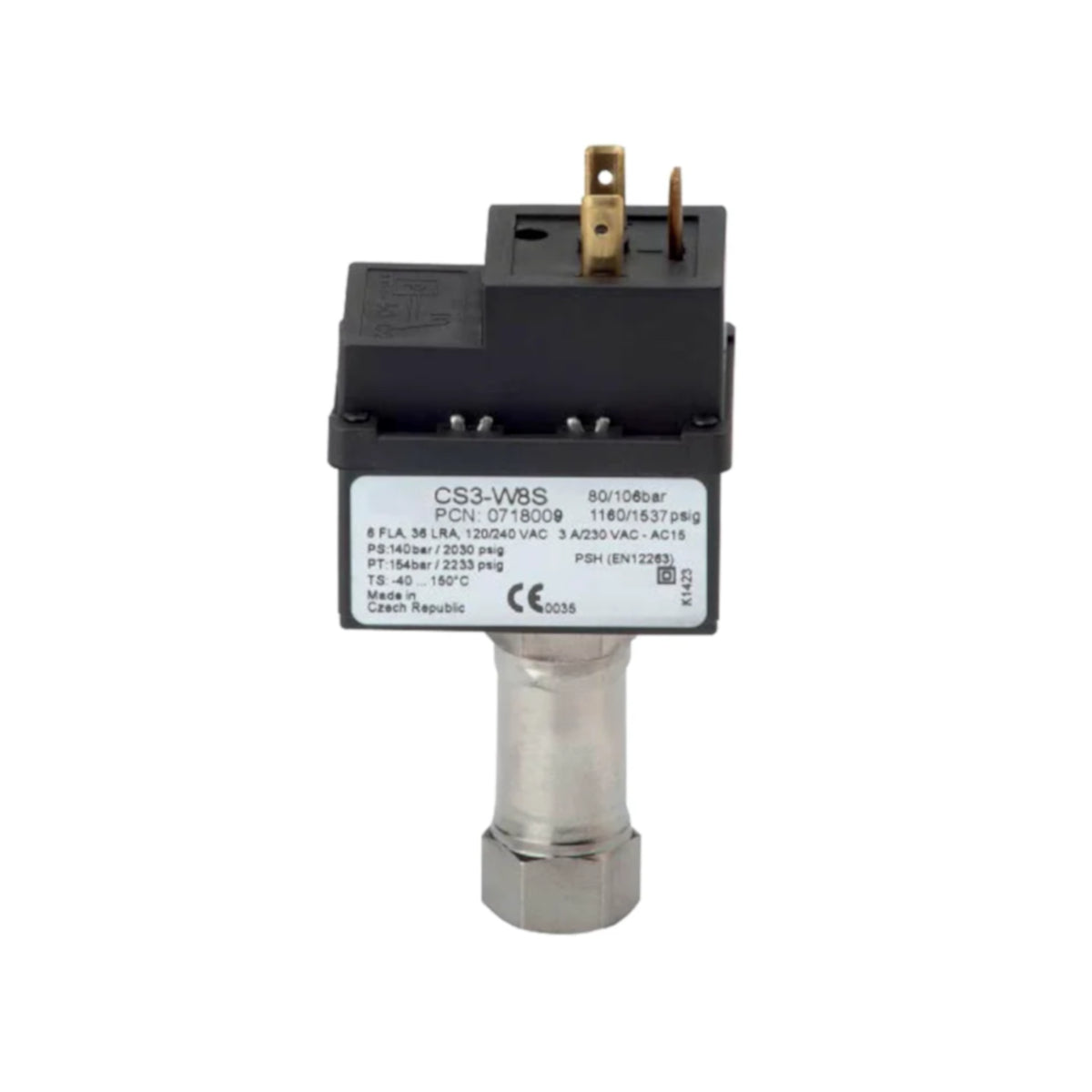

Pressure Switch CS3-WQS Alco 0718008
Small pressure switch CS3, fixed setting, for free-standing direct mounting on the pressure port, for R744 applications
Technical Data
- Pressure range: HP
- Cut-out pressure: 106 bar
- Cut-in pressure: approx. 100 bar
- Connection: 7/16'' -20 UNF (1/4'' SAE)
- Max. ambient temperature: +70 °C
- Max. temperature at pressure port: +150°C
- Max. test pressure: 154 bar
- Automatic reset
- Protection class: IP65
- Type tested EN 12263: PSH
- tested brand quality
- durable and robust
- easy to assemble
