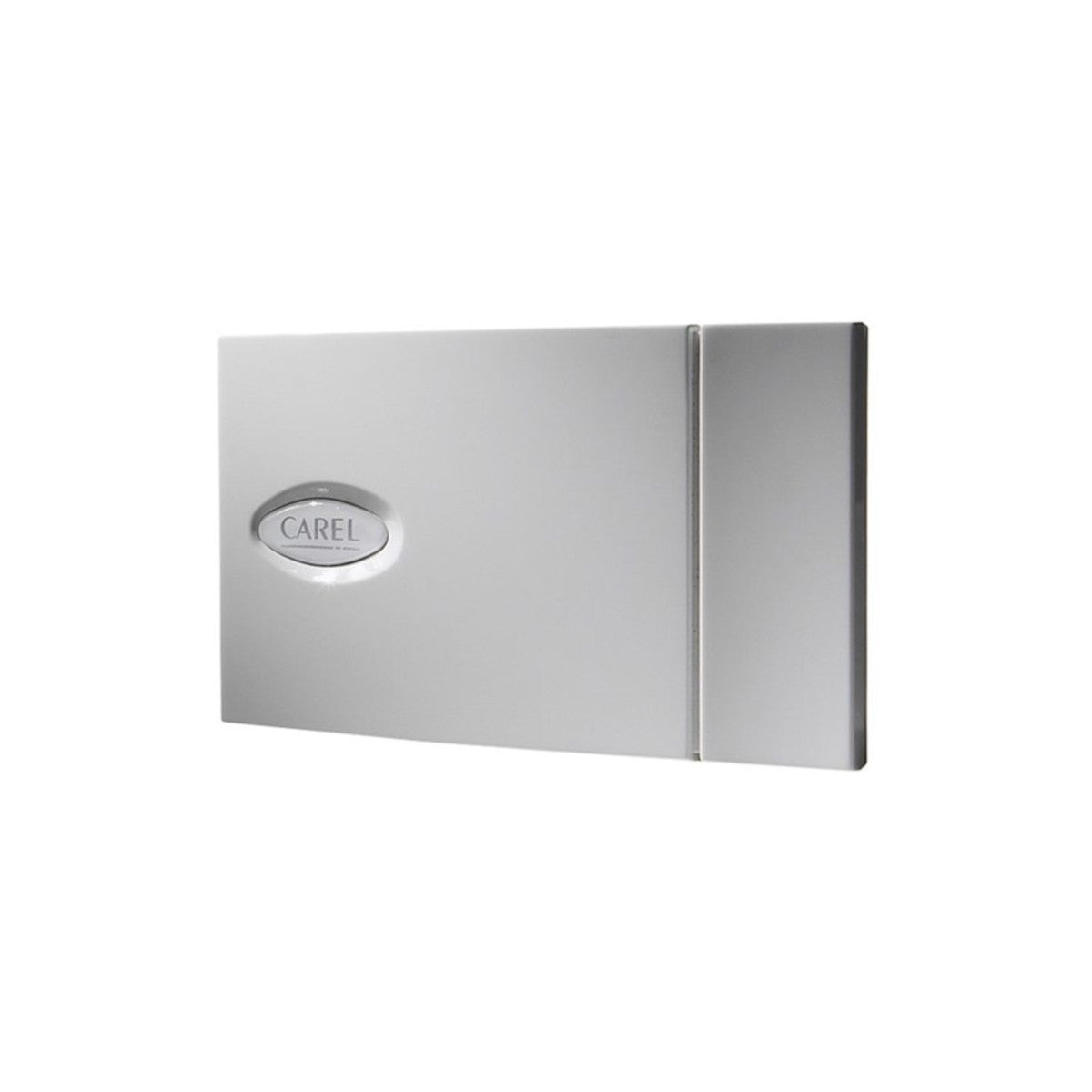

DPWC111000 Carel

DPWC111000 Temperature and Humidity Sensor Wall Mount NTC, 4-20mA /-0.5-1Vdc

The wall-mounted humidity sensor measures temperatures from -10 °C to 60 °C and features a wall-mount housing. It has a selectable sensor output between 0 V dc and 1 V dc or 4 mA and 20 mA with NTC resistance. This sensor is designed to detect temperature and humidity in commercial and industrial applications. Humidity measurement or combined humidity and temperature measurement, output signal 4 to 20mA or 10mV/unit, adjustable with jumpers. Optional NTC temperature measurement

General Details:

• NTC temperature option
• Maximum humidity measurement is 90% relative humidity
• Temperature measurement accuracy is ±1.2 °C.
• Humidity measurement accuracy is ±3% relative humidity
• Supply voltage is between 8 V dc and 30 V dc or 12 V ac and 24 V ac

Certifications: IP30 protection, CE certified
