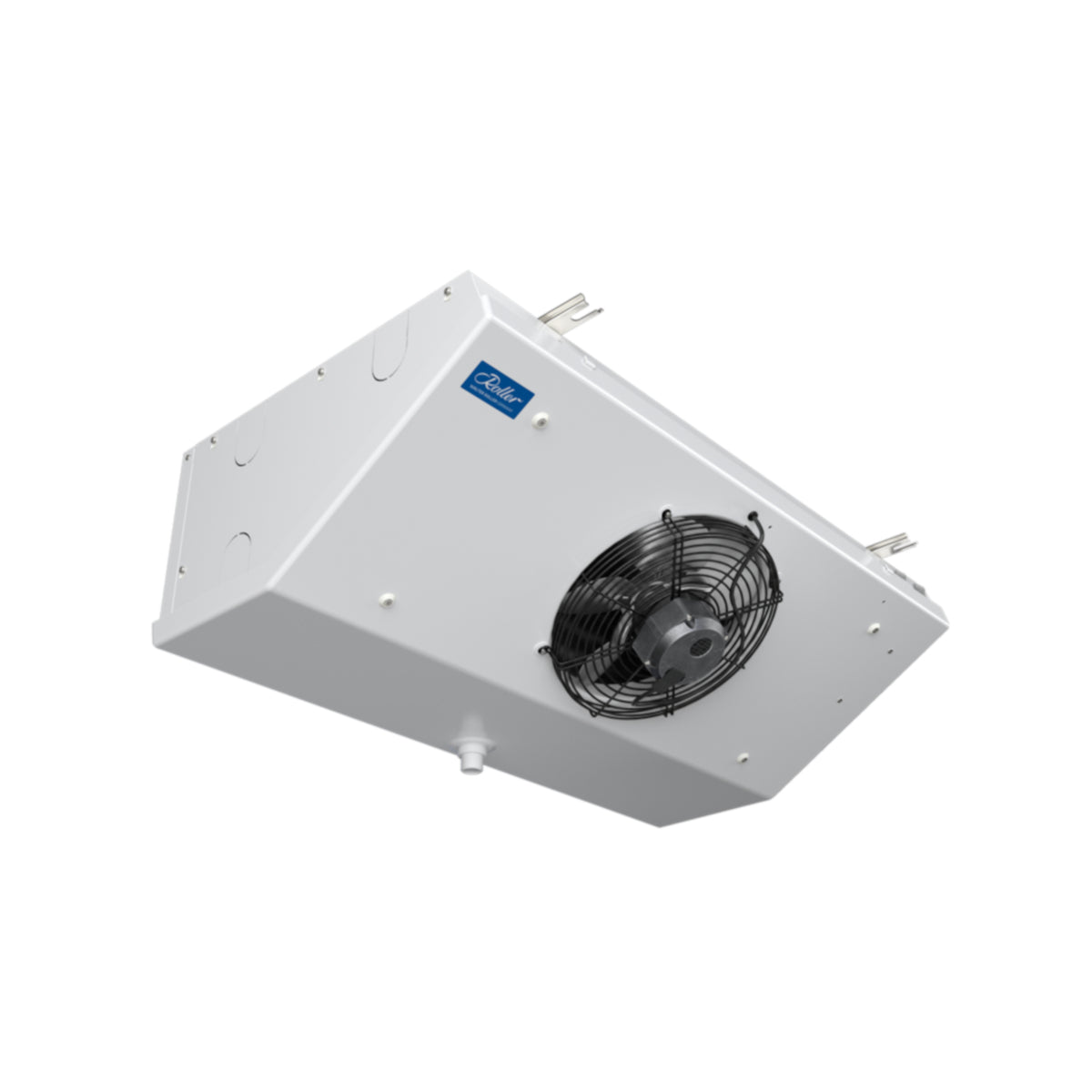

DLKT631EC Ceiling Evaporator Roller

With its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles due to a wide variety of goods, or temporarily different purposes. With uniform air distribution, it ensures a stable room temperature and, thanks to its corrosion resistance, meets the highest hygiene requirements.

Technical data

• E2V09
• Capacity R134a: 1.18 kW at -8°C to 8K, 0.810 kW at -25°C to 7K
• Capacity R513A: 1.17 kW at -8°C to 8K, 0.800 kW at -25°C to 7K
• Capacity R449A: 1.24 kW at -8°C to 8K, 0.920 kW at -25°C to 7K
• Capacity R452A: 1.22 kW at -8°C to 8K, 0.900 kW at -25°C to 7K
• Fin spacing: 6mm
• Cooling surface: 5.4 m²
• Air flow: 910 m³/h
• Throw distance: 6m
• Connections inlet/outlet: 12 mm / 18 mm
• Number x Diameter fans: 1 x 250 mm
• Fan voltage: 230V 50/60 Hz
• Fan speed: 1400 rpm
• Fan power: 31 W
• Airflow: 0.24 A
• Pipe volume: 1.6 dm³
• Dimensions (H x L x D): 246 x 860 x 497 mm
• Sound pressure level: 46 db(A)
• Sound power level: 67 db(A)
