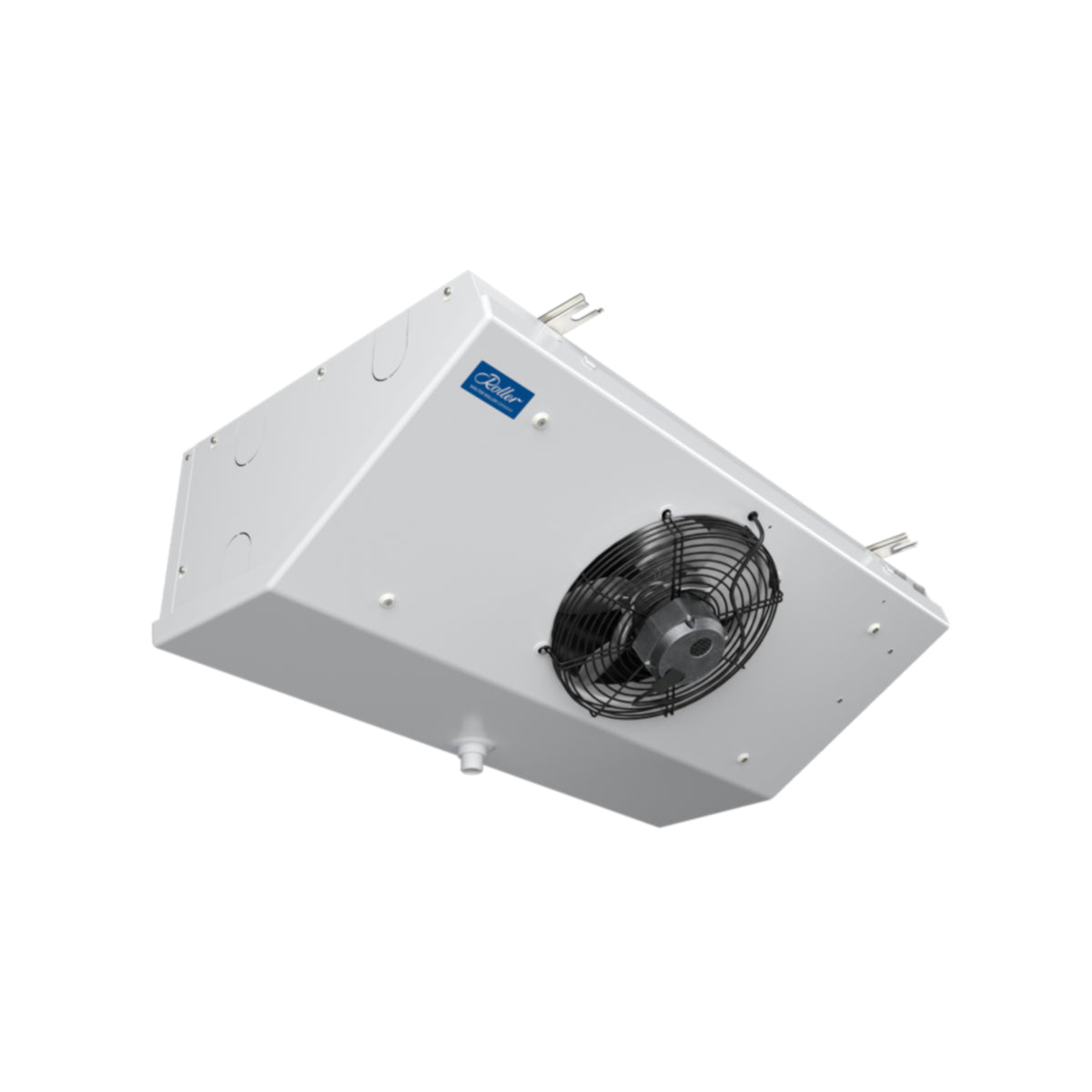

DLKT621EC Ceiling Evaporator Roller

Ceiling Evaporator DLKT621EC 230V 50/60Hz Series DLK/T flatline | with Defrost Heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles from a wide variety of goods, or temporarily different applications. With uniform air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.

Technical Data

• E2V05
• Capacity R134a: 0.810 kW at -5°C to 7K, 0.930 kW at -5°C to 8K, 1.06 kW at -5°C to 9K, 1.21 kW at -5°C to 10K
• Capacity R513A: 0.810 kW at -5°C to 7K, 0.920 kW at -5°C to 8K, 1.05 kW at -5°C to 9K, 1.21 kW at -5°C to 10K
• Capacity R449A: 0.850 kW at -5°C to 7K, 0.970 kW at -5°C to 8K, 1.10 kW at -5°C to 9K, 1.26 kW at -5°C to 10K
• Capacity R452A: 0.830 kW at -5°C to 7K, 0.950 kW at -5°C to 8K, 1.08 kW at -5°C to 9K, 1.23 kW at -5°C to 10K
• Capacity R134a: 0.590 kW at -30°C to 7K, 0.640 kW at -30°C to 8K, 0.700 kW at -30°C to 9K
• Capacity R513A: 0.580 kW at -30°C to 7K, 0.630 kW at -30°C to 8K, 0.690 kW at -30°C to 9K
• Capacity R449A: 0.690 kW at -30°C to 7K, 0.750 kW at -30°C to 8K, 0.810 kW at -30°C to 9K
• Capacity R452A: 0.670 kW at -30°C to 7K, 0.730 kW at -30°C to 8K, 0.790 kW at -30°C to 9K
• Fin spacing: 6mm
• Cooling surface: 4.0 m²
• Air flow: 940 m³/h
• Throw distance: 7m
• Connections Inlet/Outlet: 12 mm / 18 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Air current: 0.24 A
• Tube volume: 1.1 dm³
• Dimensions (H x L x D): 246 x 860 x 497 mm
• Sound pressure level: 46 dB(A)
• Sound power level: 67 dB(A)
