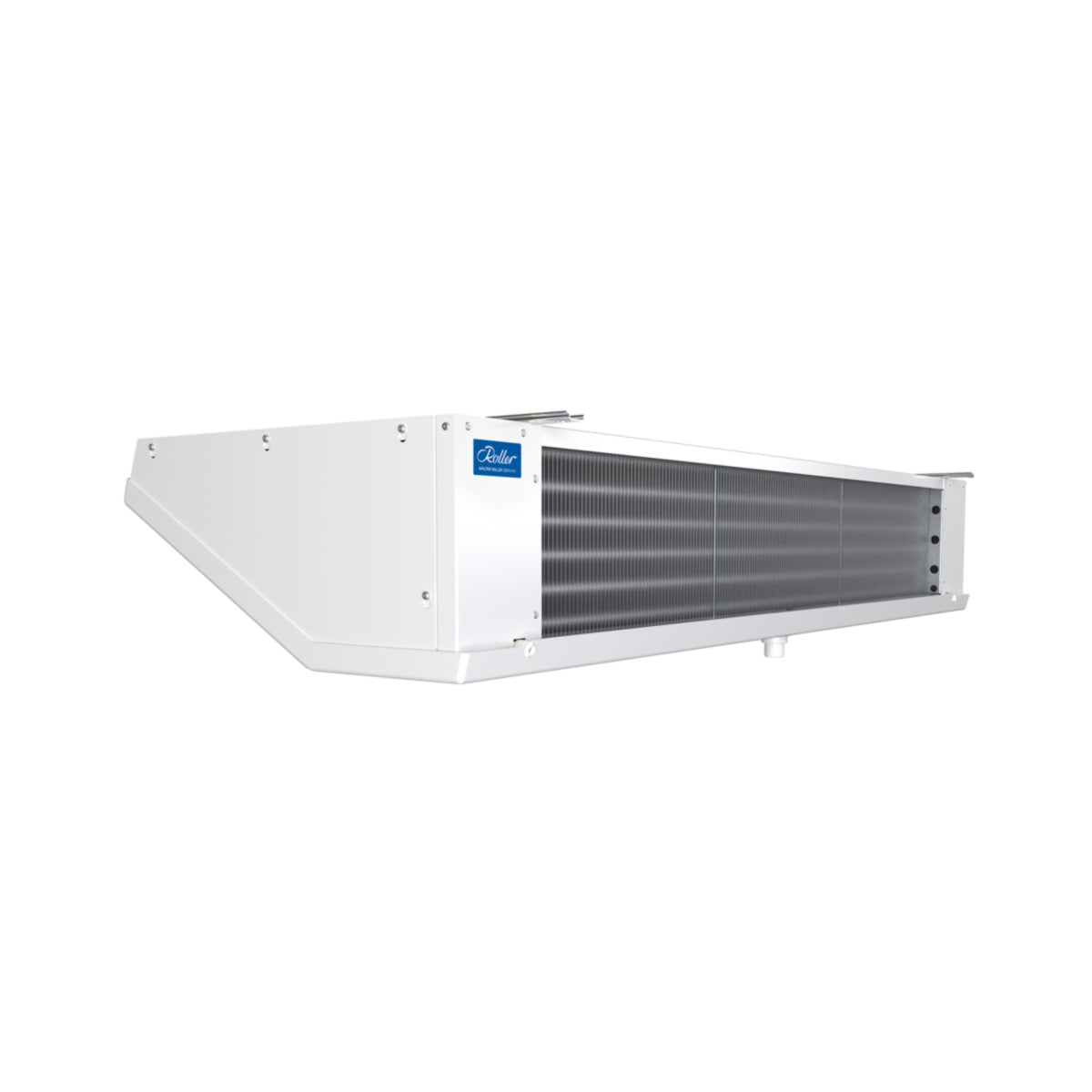

DLKT612EC Ceiling Evaporator Roller

Ceiling evaporator DLKT 612EC 230V with defrost heater Roller 0013724

Due to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles from various goods or temporarily different applications. With a uniform air distribution, it ensures a stable room temperature and withstands the highest hygiene requirements due to its corrosion resistance.

Technical data

• E2V09
• Capacity R134a: 1.48 kW at -5°C to 7K, 1.69 kW at -5°C to 8K, 1.92 kW at -5°C to 9K, 2.16 kW at -5°C to 10K
• Capacity R513A: 1.48 kW at -5°C to 7K, 1.68 kW at -5°C to 8K, 1.91 kW at -5°C to 9K, 2.15 kW at -5°C to 10K
• Capacity R449A: 1.55 kW at -5°C to 7K, 1.77 kW at -5°C to 8K, 2.01 kW at -5°C to 9K, 2.27 kW at -5°C to 10K
• Capacity R452A: 1.52 kW at -5°C to 7K, 1.73 kW at -5°C to 8K, 1.97 kW at -5°C to 9K, 2.22 kW at -5°C to 10K
• Capacity R134a: 1.07 kW at -30°C to 7K, 1.17 kW at -30°C to 8K, 1.27 kW at -30°C to 9K
• Capacity R513A: 1.06 kW at -30°C to 7K, 1.15 kW at -30°C to 8K, 1.25 kW at -30°C to 9K
• Capacity R449A: 1.25 kW at -30°C to 7K, 1.36 kW at -30°C to 8K, 1.48 kW at -30°C to 9K
• Capacity R452A: 1.22 kW at -30°C to 7K, 1.33 kW at -30°C to 8K, 1.45 kW at -30°C to 9K
• Fin spacing: 6mm
• Cooling surface: 7.2 m²
• Air flow: 1560 m³/h
• Throw distance: 7m
• Connections Inlet/Outlet: 12 mm / 18 mm
• Number x Diameter Fans: 2 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Airflow: 0.24 A
• Tube content: 2.0 dm³
• Dimensions (H x L x D): 246 x 1062 x 497 mm
• Sound pressure level: 49 db(A)
• Sound power level: 70 db(A)
