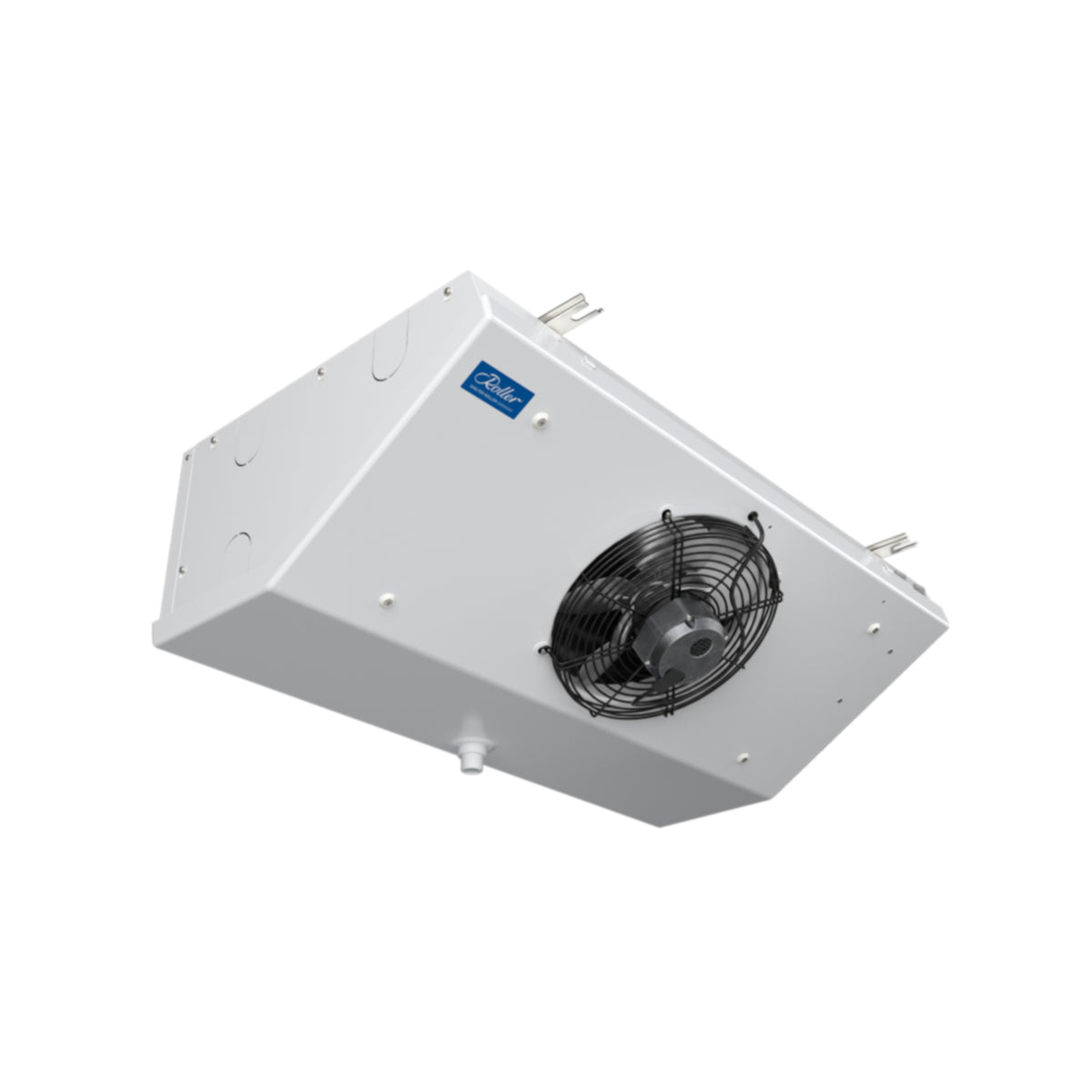

DLKT611EC Ceiling Evaporator Roller

Ceiling Evaporator DLKT611EC 230V with Defrost Heater Roller 0013721

Ceiling Evaporator DLKT 611EC | 0.89 kW DLK/T flatline series. The DLK, with its flat and robust design, is suitable for all cold rooms exposed to special requirements, be it frequent access, aggressive particles from various goods, or temporarily different uses. With uniform air distribution, it ensures a stable room temperature and, thanks to its corrosion resistance, meets the highest hygiene requirements.

Technical Data

• E2V05
• Capacity R134a: 0.740 kW at -5°C to 7K, 0.850 kW at -5°C to 8K, 0.970 kW at -5°C to 9K, 1.10 kW at -5°C to 10K
• Capacity R513A: 0.740 kW at -5°C to 7K, 0.840 kW at -5°C to 8K, 0.960 kW at -5°C to 9K, 1.10 kW at -5°C to 10K
• Capacity R449A: 0.770 kW at -5°C to 7K, 0.890 kW at -5°C to 8K, 1.01 kW at -5°C to 9K, 0.920 kW at -5°C to 10K
• Capacity R452A: 0.760 kW at -5°C to 7K, 0.870 kW at -5°C to 8K, 0.990 kW at -5°C to 9K, 1.13 kW at -5°C to 10K
• Capacity R134a: 0.530 kW at -30°C to 7K, 0.580 kW at -30°C to 8K, 0.630 kW at -30°C to 9K
• Capacity R513A: 0.530 kW at -30°C to 7K, 0.570 kW at -30°C to 8K, 0.620 kW at -30°C to 9K
• Capacity R449A: 0.620 kW at -30°C to 7K, 0.680 kW at -30°C to 8K, 0.740 kW at -30°C to 9K
• Capacity R452A: 0.610 kW at -30°C to 7K, 0.660 kW at -30°C to 8K, 0.720 kW at -30°C to 9K
• Fin spacing: 6mm
• Cooling surface: 3.6 m²
• Air flow: 780 m³/h
• Throw distance: 5m
• Connections Inlet/Outlet: 10 mm / 10 mm
• Number x Diameter of Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Air Flow: 0.24 A
• Tube Volume: 1.0 dm³
• Dimensions (H x L x D): 246 x 660 x 497 mm
• Sound Pressure Level: 46 db(A)
• Sound Power Level: 67 db(A)
