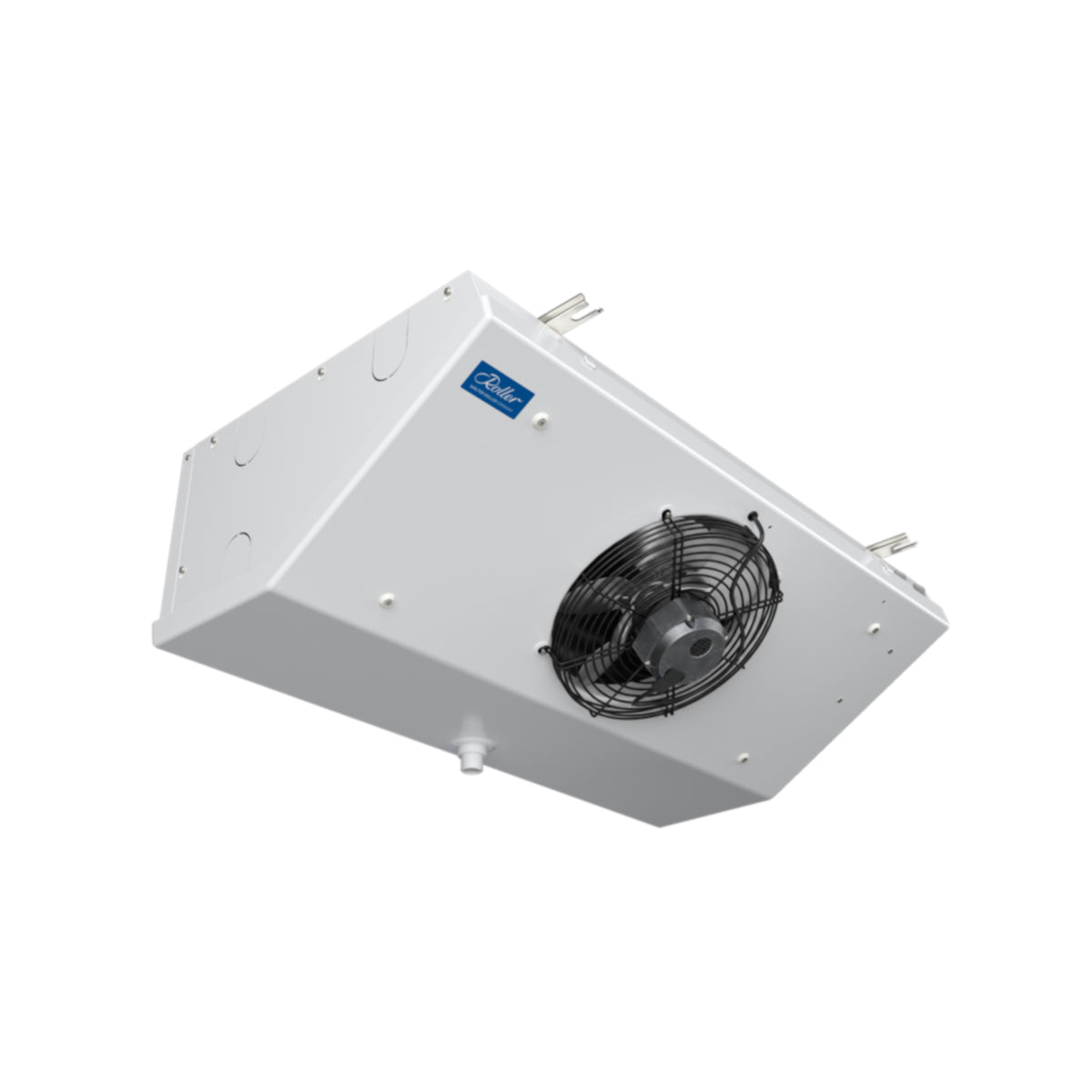

DLKT421EC Ceiling Evaporator Roller

Ceiling Evaporator DLKT 421EC 230V 50/60Hz DLK/T flatline series with defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms that are exposed to special demands. Be it frequent access, aggressive particles from various goods, or temporarily different uses. With even air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.

Technical data

• E2V09
• Capacity R134a: 1.04 kW at -5°C to 7K, 1.19 kW at -5°C to 8K, 1.36 kW at -5°C to 9K, 1.54 kW at -5°C to 10K
• Capacity R513A: 1.03 kW at -5°C to 7K, 1.18 kW at -5°C to 8K, 1.35 kW at -5°C to 9K, 1.54 kW at -5°C to 10K
• Capacity R449A: 1.08 kW at -5°C to 7K, 1.24 kW at -5°C to 8K, 1.42 kW at -5°C to 9K, 1.61 kW at -5°C to 10K
• Capacity R452A: 1.06 kW at -5°C to 7K, 1.22 kW at -5°C to 8K, 1.39 kW at -5°C to 9K, 1.58 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 5.9 m²
• Airflow: 890 m³/h
• Throw distance: 7m
• Connections Inlet/Outlet: 12 mm / 18 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Airflow: 0.24 A
• Tube volume: 1.1 dm³
