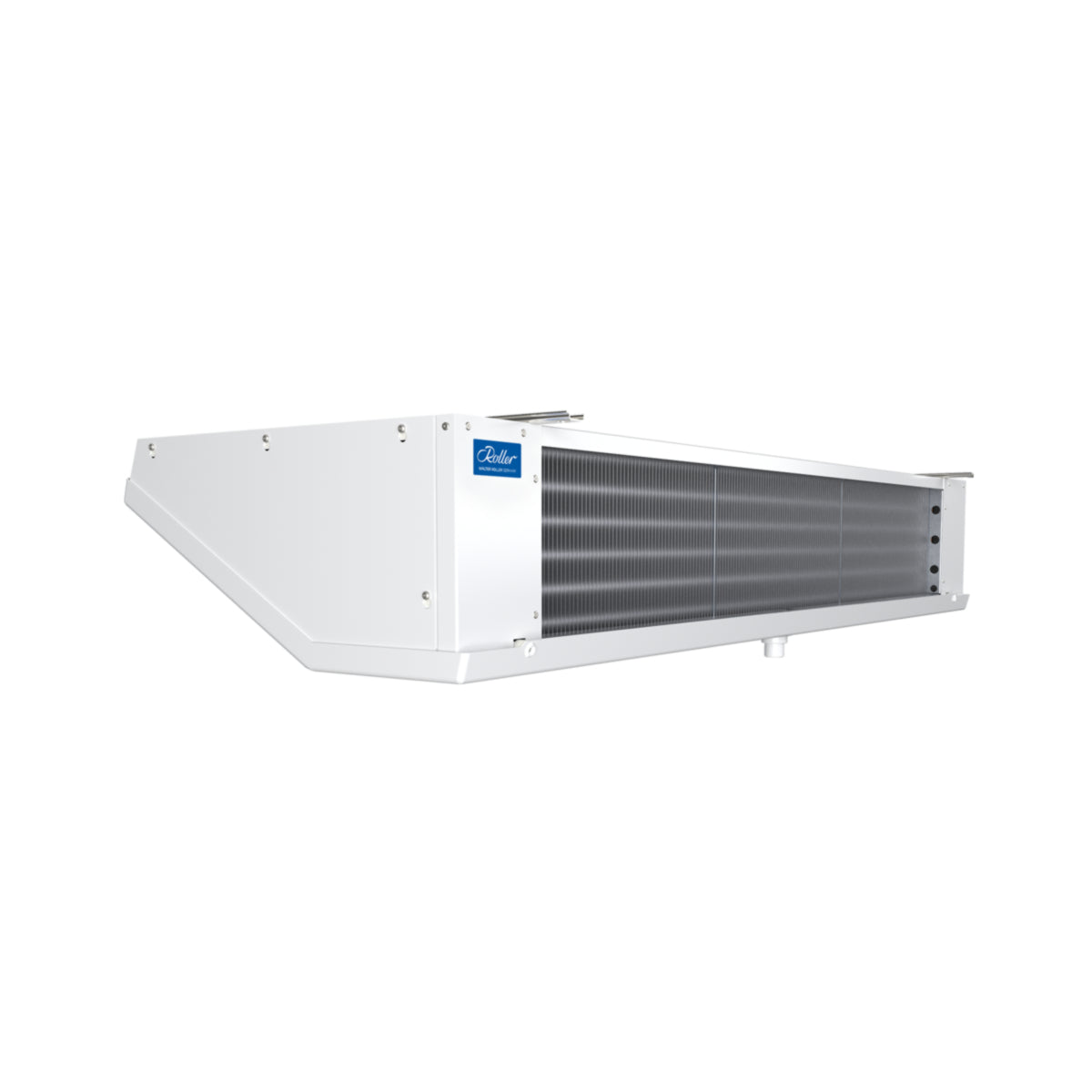

DLKT412EC Ceiling evaporator Roller

Ceiling Evaporator DLKT412EC 230V with Defrost Heater Roller 0013714

highly efficient heat transfer

particularly energy efficient

long throw

excl. VAT incl. VAT

1.210,30 € 1.440,26 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 1.210,30 € excl. VAT 1.440,26 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 4413059 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Roller Ceiling Evaporator DLKT412EC | 2.19 kW DLK/T flatline series with defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles due to various goods, or temporarily different uses. With uniform air distribution, it ensures a stable room temperature and withstands the highest hygiene requirements due to its corrosion resistance.

Technical data

E2V11
Capacity R134a: 1.82 kW at -5°C to 7K, 2.07 kW at -5°C to 8K, 2.35 kW at -5°C to 9K, 2.66 kW at -5°C to 10K
Capacity R513A: 1.81 kW at -5°C to 7K, 2.06 kW at -5°C to 8K, 2.34 kW at -5°C to 9K, 2.64 kW at -5°C to 10K
Capacity R449A: 1.91 kW at -5°C to 7K, 2.17 kW at -5°C to 8K, 2.46 kW at -5°C to 9K, 2.78 kW at -5°C to 10K
Capacity R452A: 1.87 kW at -5°C to 7K, 2.12 kW at -5°C to 8K, 2.41 kW at -5°C to 9K, 2.72 kW at -5°C to 10K
Fin spacing: 4mm
Cooling surface: 10.5 m²
Air flow: 1480 m³/h
Throw: 7m
Connections inlet/outlet: 12 mm / 18 mm
Number x Diameter fans: 2 x 250 mm
Fan voltage: 230V 50/60 Hz
Fan speed: 1400 rpm
Fan power: 31 W
Air current: 0.24 A
Tube volume: 2.0 dm³
Dimensions (H x L x D): 246 x 1062 x 497 mm
Sound pressure level: 49 db(A)
Sound power level: 70 db(A)
