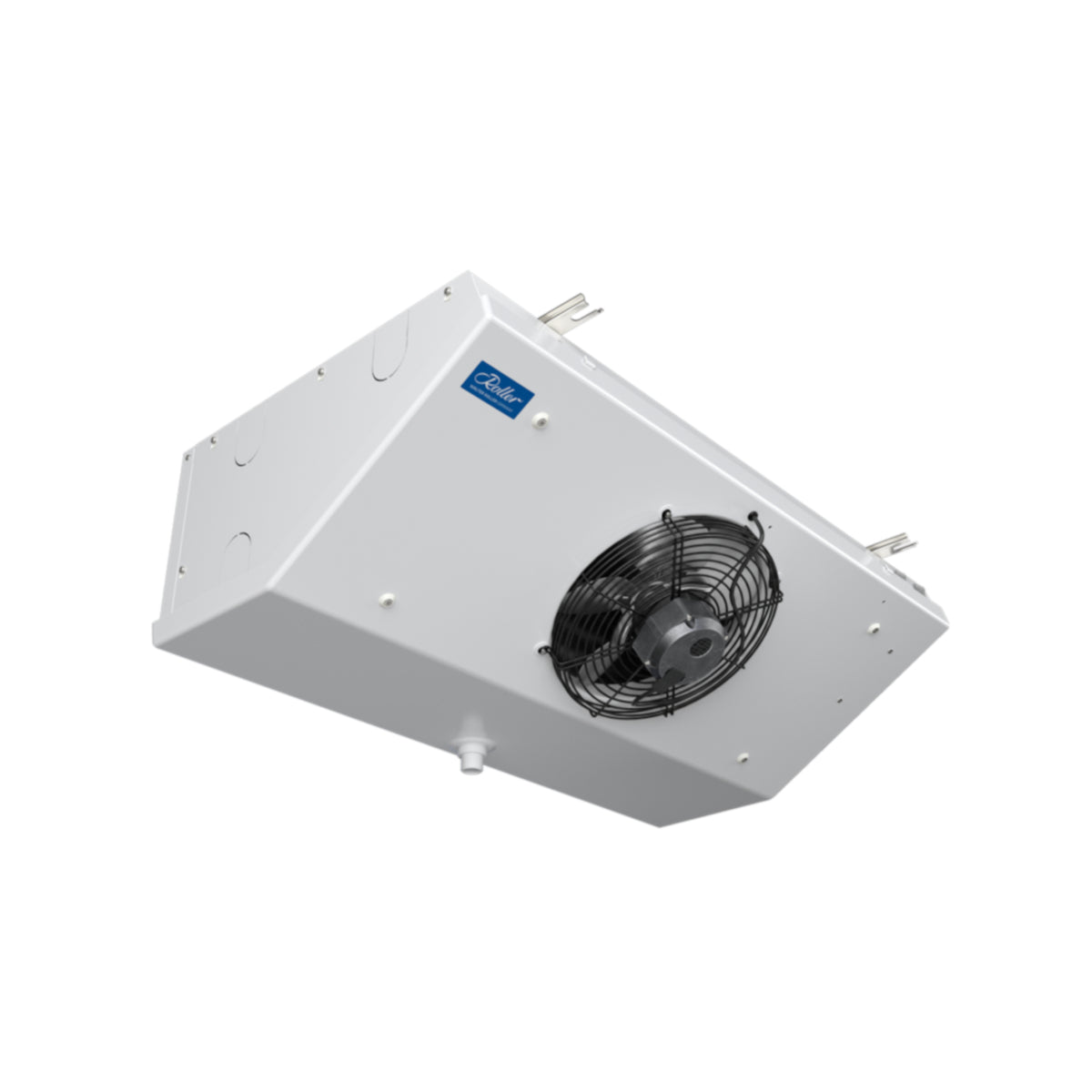

DLKT411 EC Ceiling Evaporator Roller

Ceiling Evaporator DLKT411EC | 1.10 kW DLK/T flatline series with defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles due to various goods, or temporarily different uses. With even air distribution, it ensures a stable room temperature and, thanks to its corrosion resistance, withstands the highest hygiene requirements.

Technical data

• E2V09
• Capacity R134a: 0.910 kW at -5°C to 7K, 1.04 kW at -5°C to 8K, 1.20 kW at -5°C to 9K, 1.36 kW at -5°C to 10K
• Capacity R513A: 0.910 kW at -5°C to 7K, 1.04 kW at -5°C to 8K, 1.19 kW at -5°C to 9K, 1.36 kW at -5°C to 10K
• Capacity R449A: 0.960 kW at -5°C to 7K, 1.09 kW at -5°C to 8K, 1.25 kW at -5°C to 9K, 1.43 kW at -5°C to 10K
• Capacity R452A: 0.940 kW at -5°C to 7K, 1.07 kW at -5°C to 8K, 1.22 kW at -5°C to 9K, 1.40 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 5.2 m²
• Air flow: 740 m³/h
• Throw distance: 5m
• Connections inlet/outlet: 10 mm / 10 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 U/min
• Fan Power: 31 W
• Air flow: 0.24 A
• Tube volume: 1.0 dm³
