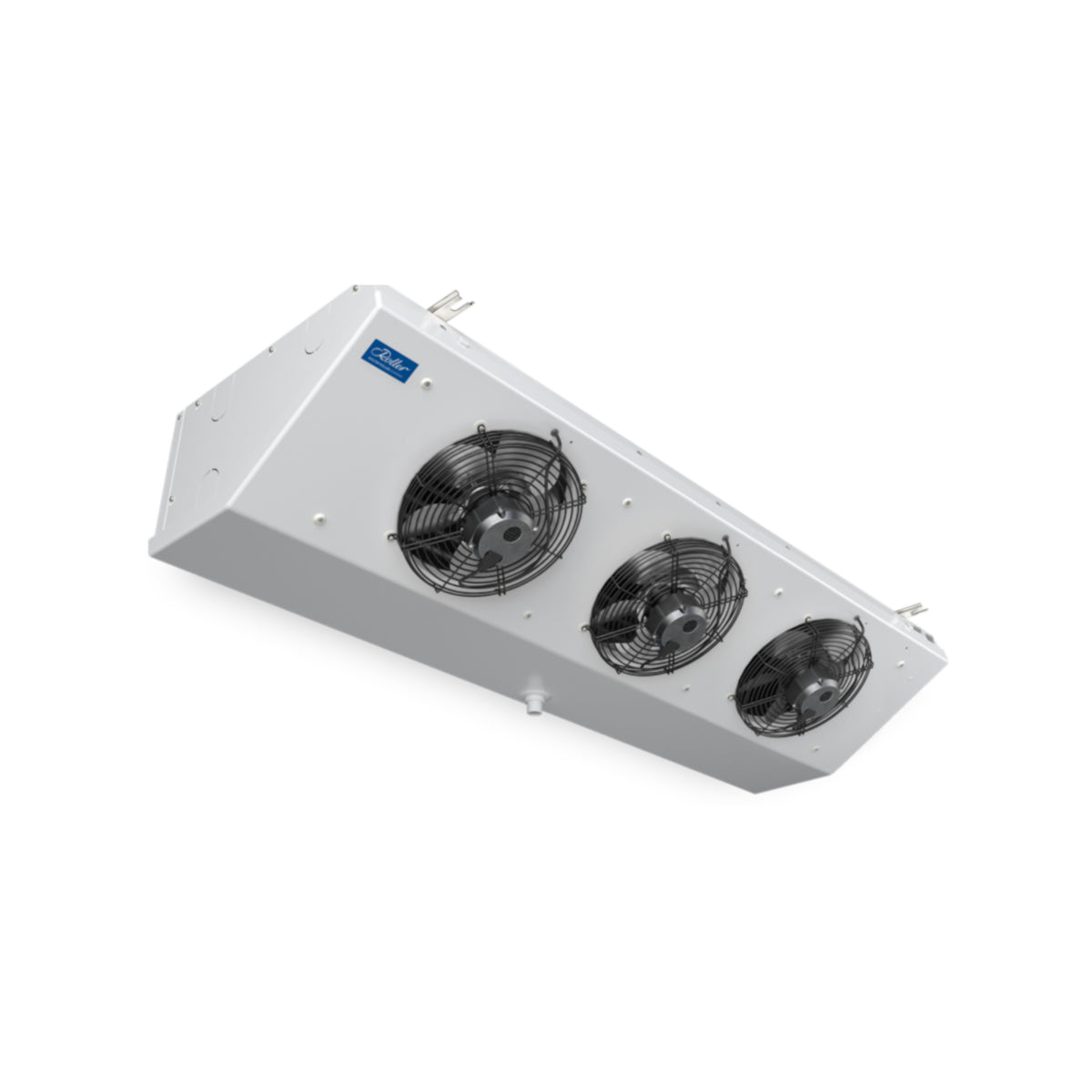

DLKT 613 EC Ceiling Evaporator Roller

Küba Ceiling Air Cooler DLKT 413EC | 3.89 kW Series DLK/T flatline | with Defrost Heater

Technical Data

• E2V11
• Capacity R134a: 2.53 kW at -5°C to 7K, 2.92 kW at -5°C to 8K, 3.35 kW at -5°C to 9K, 3.79 kW at -5°C to 10K
• Capacity R513A: 2.52 kW at -5°C to 7K, 2.91 kW at -5°C to 8K, 3.33 kW at -5°C to 9K, 3.78 kW at -5°C to 10K
• Capacity R449A: 2.65 kW at -5°C to 7K, 3.06 kW at -5°C to 8K, 3.50 kW at -5°C to 9K, 3.97 kW at -5°C to 10K
• Capacity R452A: 2.59 kW at -5°C to 7K, 3.00 kW at -5°C to 8K, 3.43 kW at -5°C to 9K, 3.89 kW at -5°C to 10K
• Capacity R134a: 1.75 kW at -30°C to 7K, 1.95 kW at -30°C to 8K, 2.15 kW at -30°C to 9K
• Capacity R513A: 1.73 kW at -30°C to 7K, 1.92 kW at -30°C to 8K, 2.12 kW at -30°C to 9K
• Capacity R449A: 2.04 kW at -30°C to 7K, 2.27 kW at -30°C to 8K, 2.50 kW at -30°C to 9K
• Capacity R452A: 2.00 kW at -30°C to 7K, 2.22 kW at -30°C to 8K, 2.45 kW at -30°C to 9K
• Fin spacing: 6mm
• Cooling surface: 10.8 m²
• Airflow: 2340 m³/h
• Air throw: 9m
• Connections inlet/outlet: 12 mm / 22 mm
• Number x Diameter Fans: 3 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 U/min
• Fan Power: 31 W
• Airflow: 0.24 A
• Tube volume: 3.1 dm³
