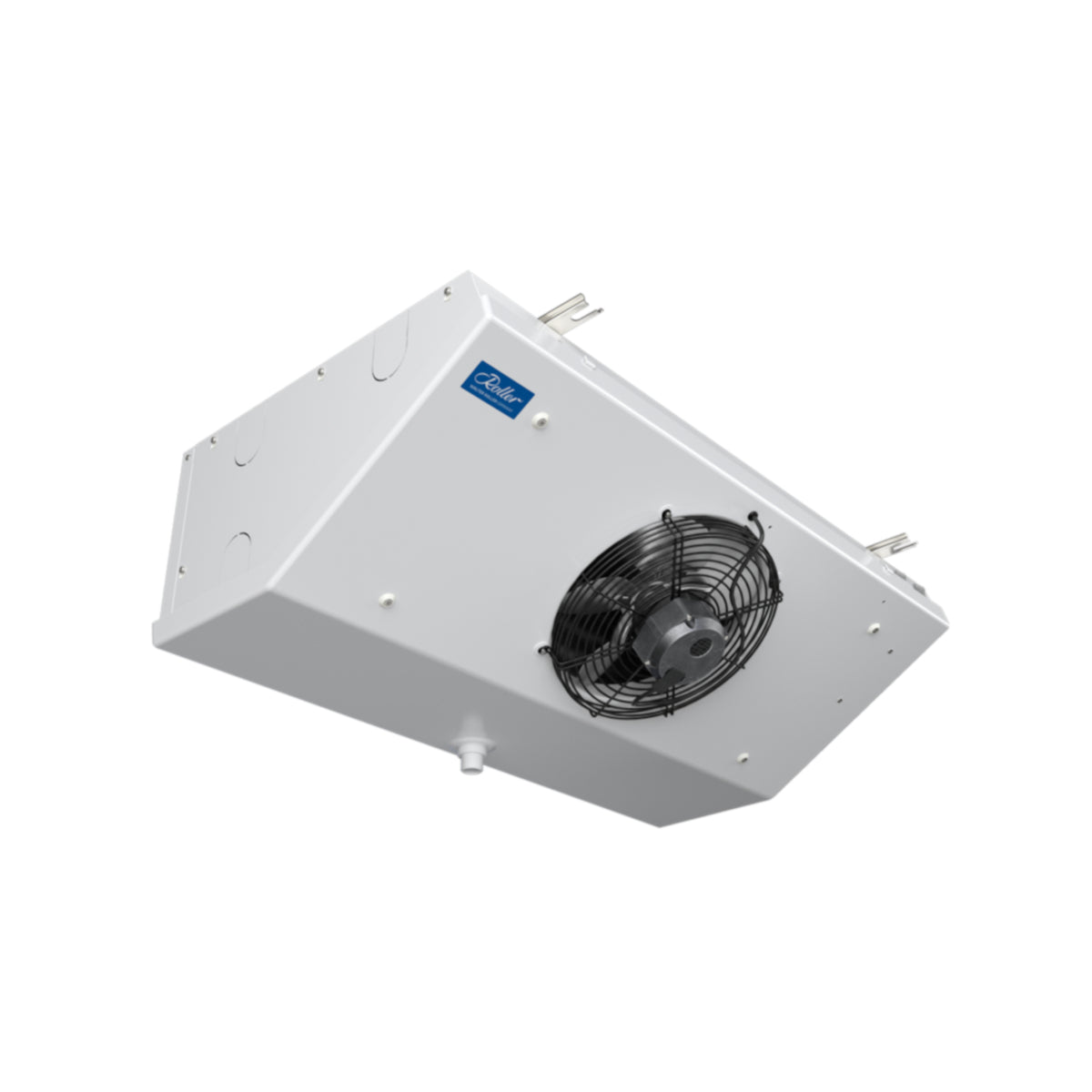

DLKT 601EC Ceiling Air Cooler Roller

Ceiling Air Cooler DLKT 601EC flatline series DLK/T | with Defrost Heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles due to various goods, or temporarily different uses. With even air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.

Technical Data

• E2V05
• Capacity R134a: 0.540 kW at -5°C to 7K, 0.650 kW at -5°C to 8K, 0.760 kW at -5°C to 9K, 0.880 kW at -5°C to 10K
• Capacity R513A: 0.540 kW at -5°C to 7K, 0.650 kW at -5°C to 8K, 0.760 kW at -5°C to 9K, 0.880 kW at -5°C to 10K
• Capacity R449A: 0.570 kW at -5°C to 7K, 0.680 kW at -5°C to 8K, 0.800 kW at -5°C to 9K, 0.920 kW at -5°C to 10K
• Capacity R452A: 0.560 kW at -5°C to 7K, 0.670 kW at -5°C to 8K, 0.780 kW at -5°C to 9K, 0.900 kW at -5°C to 10K
• Capacity R134a: 0.350 kW at -30°C to 7K, 0.400 kW at -30°C to 8K, 0.460 kW at -30°C to 9K
• Capacity R513A: 0.340 kW at -30°C to 7K, 0.400 kW at -30°C to 8K, 0.450 kW at -30°C to 9K
• Capacity R449A: 0.410 kW at -30°C to 7K, 0.470 kW at -30°C to 8K, 0.530 kW at -30°C to 9K
• Capacity R452A: 0.400 kW at -30°C to 7K, 0.460 kW at -30°C to 8K, 0.520 kW at -30°C to 9K
• Fin spacing: 6mm
• Cooling surface: 2.7 m²
• Airflow: 820 m³/h
• Throw distance: 6m
• Connections Inlet/Outlet: 10 mm / 10 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Airflow: 0.24 A
• Pipe Volume: 0.8 dm³
• Dimensions (H x L x D): 246 x 660 x 497 mm
• Sound Pressure Level: 46 db(A)
• Sound Power Level: 67 db(A)
