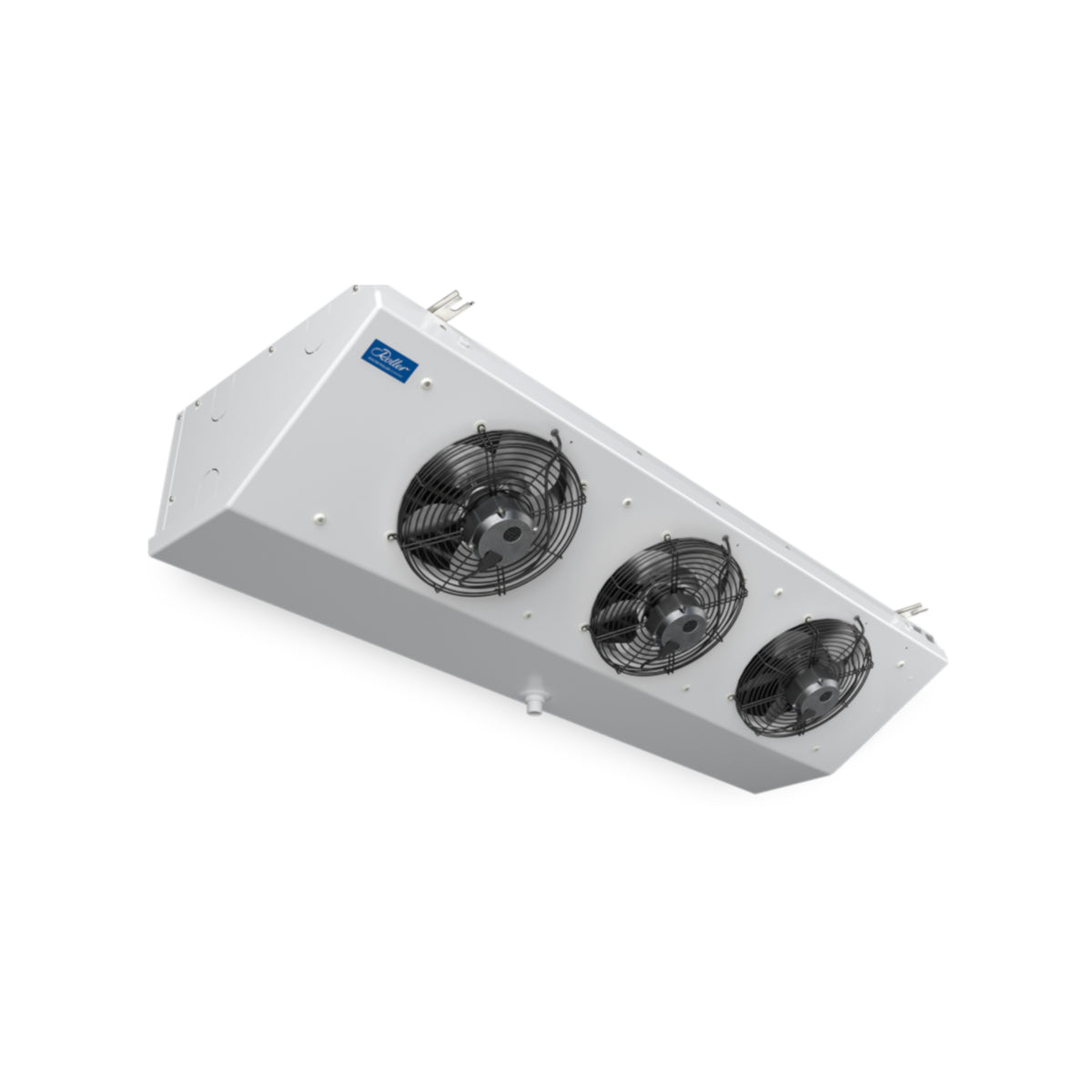

Ceiling Air Cooler DLK 7863 EC Next 5.44 kW / 230V without Defrost Heater Roller 0015499
Replaces the ceiling air cooler DLK 763EC series DLK/T flatline Thanks to its flat and robust design, the DLK is suitable for all cold rooms that are exposed to special requirements. Be it frequent traffic, aggressive particles from various goods, or temporarily different applications. With even air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.Technical Data
- Capacity R134a: 6.58 kW at -8°C to 8K, 4.38 kW at -25°C to 7K
- Capacity R513A: 6.58 kW at -8°C to 8K, 4.38 kW at -25°C to 7K
- Capacity R449A: 6.89 kW at -8°C to 8K, 4.86 kW at -25°C to 7K
- Capacity R452A: 6.81 kW at -8°C to 8K, 4.82 kW at -25°C to 7K
- Fin spacing: 7mm
- Cooling surface: 32.3 m²
- Air flow: 4200 m³/h
- Throw distance: 14m
- Inlet/outlet connections: 12 mm / 28mm
- Number x Diameter Fans: 3 x 300 mm
- Fan Voltage: 230V 50/60 Hz
- Fan Speed: 1410 U/min
- Fan Power: 60 W
- Air flow: 0.51 A
- Tube volume: 11.2 dm³
General characteristics
- Shipping class: Freight forwarder
- Brand: Roller
- Weight: 58.0 kg
