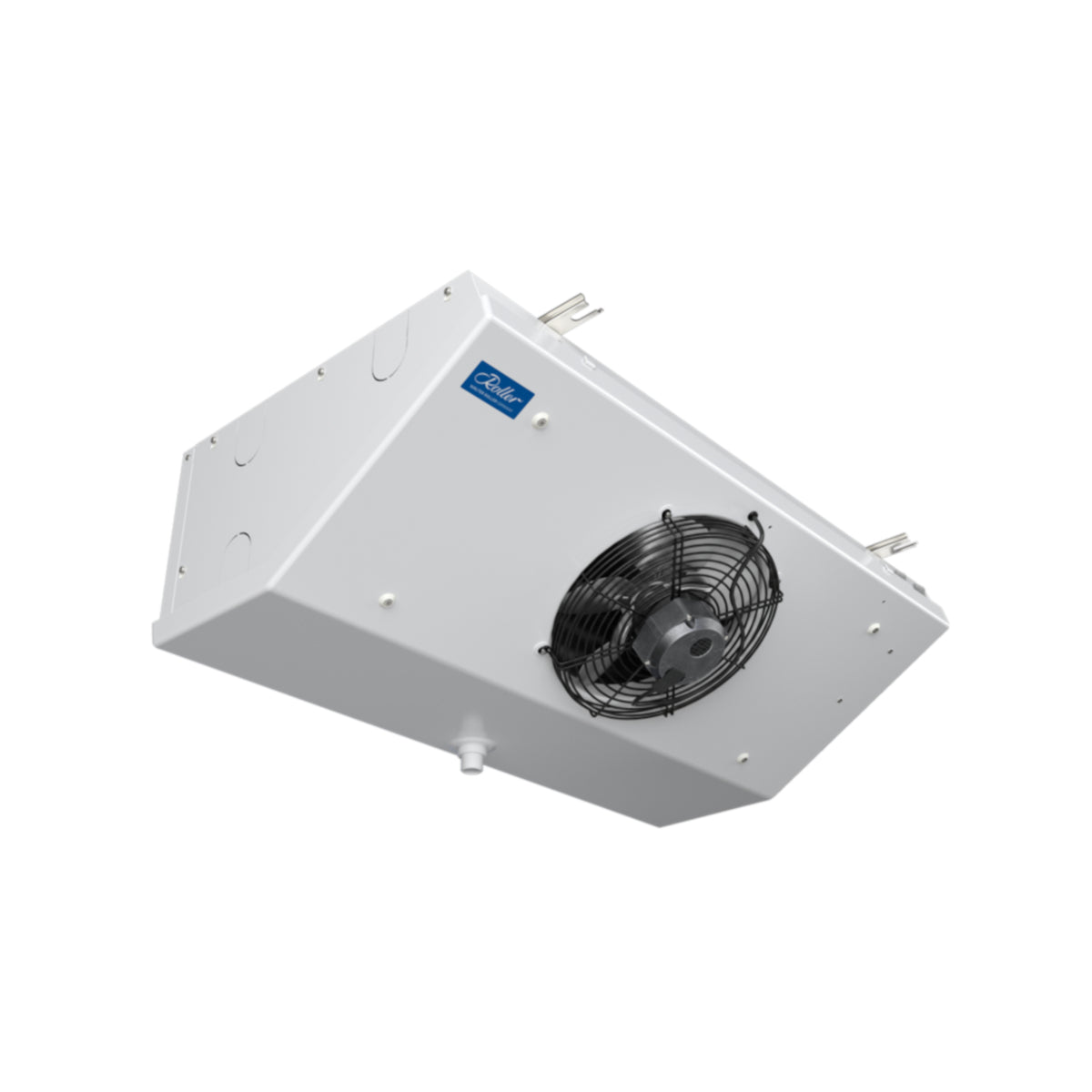

Ceiling Air Cooler DLK7861EC Next 1.90 kW / 230V without Defrost Heater Roller 0015497
Replaces the ceiling air cooler DLK761EC Series DLK/T flatline
Due to its flat and robust design, the DLK is suitable for all cold rooms that are subject to special requirements, be it frequent access, aggressive particles from various goods, or temporarily different applications. With uniform air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.
Technical Data
- Capacity R134a: 2.16 kW at -8°C to 8K, 1.56 kW at -25°C to 7K
- Capacity R513A: 2.16 kW at -8°C to 8K, 1.56 kW at -25°C to 7K
- Capacity R449A: 2.26 kW at -8°C to 8K, 1.74 kW at -25°C to 7K
- Capacity R452A: 2.23 kW at -8°C to 8K, 1.72 kW at -25°C to 7K
- Fin spacing: 7mm
- Cooling surface: 10.8 m²
- Air flow: 1400 m³/h
- Throw distance: 11m
- Connections Inlet/Outlet: 12 mm / 15 mm
- Number x Diameter Fans: 1 x 300 mm
- Fan Voltage: 230V 50/60 Hz
- Fan Speed: 1410 U/min
- Fan Power: 60 W
- Air current: 0.51 A
- Pipe volume: 4.1 dm³
