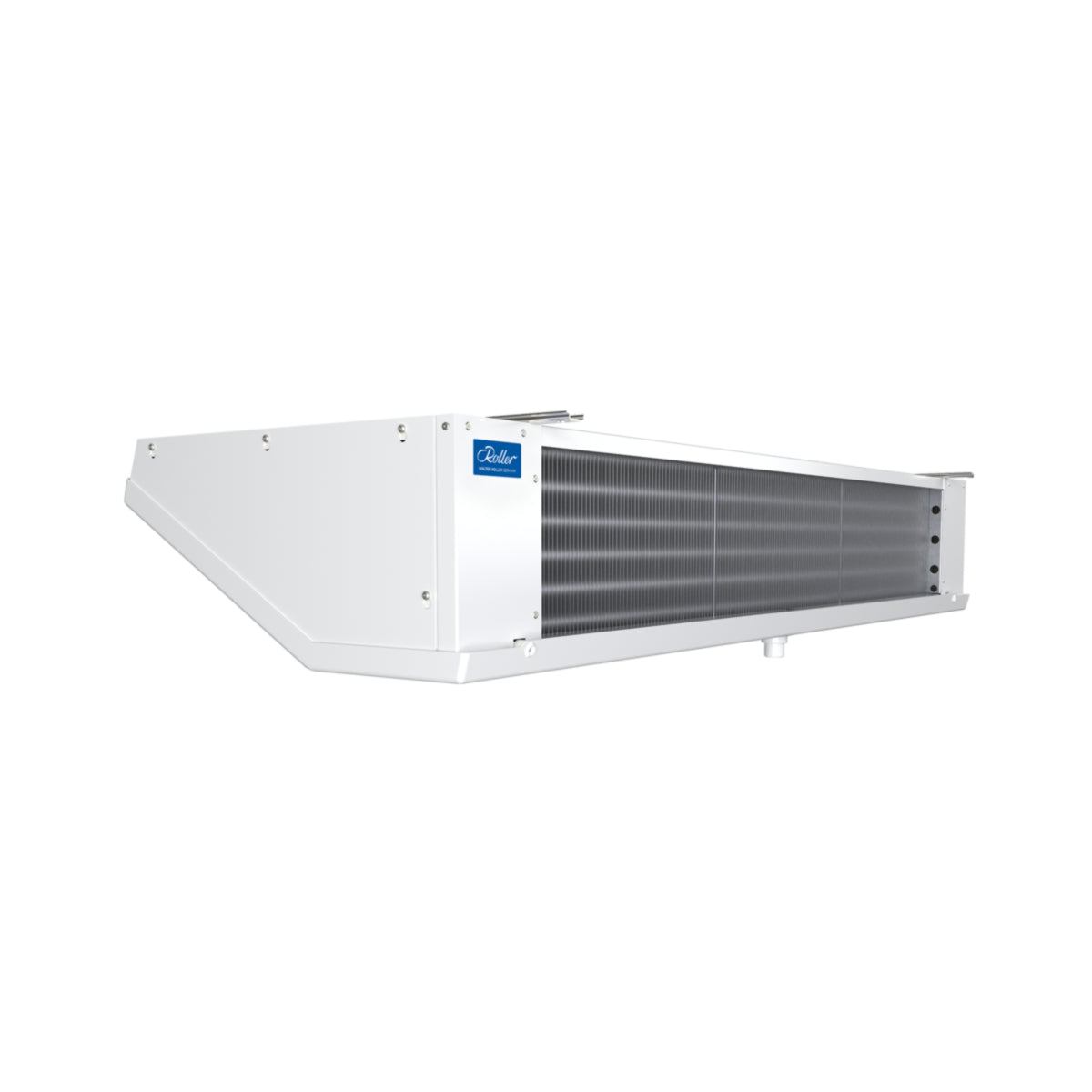

DLK432EC Roller Ceiling Evaporator

Ceiling evaporator DLK432EC 230V without defrost heater 0013685

highly efficient heat transfer

particularly energy efficient

high air throw

excl. VAT incl. VAT

1.402,20 € 1.668,62 € incl. VAT

1.402,20 € excl. VAT 1.668,62 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

SKU 4413076 Manufacturer Roller Datasheet

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Ceiling Evaporator DLK432EC | 3.11 kW DLK/T flatline series without defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles from various goods, or temporarily different uses. With uniform air distribution, it ensures a stable room temperature and, thanks to its corrosion resistance, meets the highest hygiene requirements.

Technical data

E2V14
Capacity R134a: 2.56 kW at -5°C to 7K, 2.96 kW at -5°C to 8K, 3.39 kW at -5°C to 9K, 3.84 kW at -5°C to 10K
Capacity R513A: 2.54 kW at -5°C to 7K, 2.94 kW at -5°C to 8K, 3.37 kW at -5°C to 9K, 3.82 kW at -5°C to 10K
Capacity R449A: 2.68 kW at -5°C to 7K, 3.09 kW at -5°C to 8K, 3.55 kW at -5°C to 9K, 4.01 kW at -5°C to 10K
Capacity R452A: 2.62 kW at -5°C to 7K, 3.03 kW at -5°C to 8K, 3.47 kW at -5°C to 9K, 3.93 kW at -5°C to 10K
Fin spacing: 4mm
Cooling surface: 15.7 m²
Airflow: 1700 m³/h
Throw distance: 8m
Connections Inlet/Outlet: 12 mm / 22 mm
Number x Diameter Fans: 2 x 250 mm
Fan Voltage: 230V 50/60 Hz
Fan Speed: 1400 rpm
Fan Power: 31 W
Airflow: 0.24 A
Pipe volume: 2.9 dm³
Dimensions (H x L x D): 246 x 1462 x 497 mm
Sound pressure level: 49 db(A)
Sound power level: 70 db(A)
