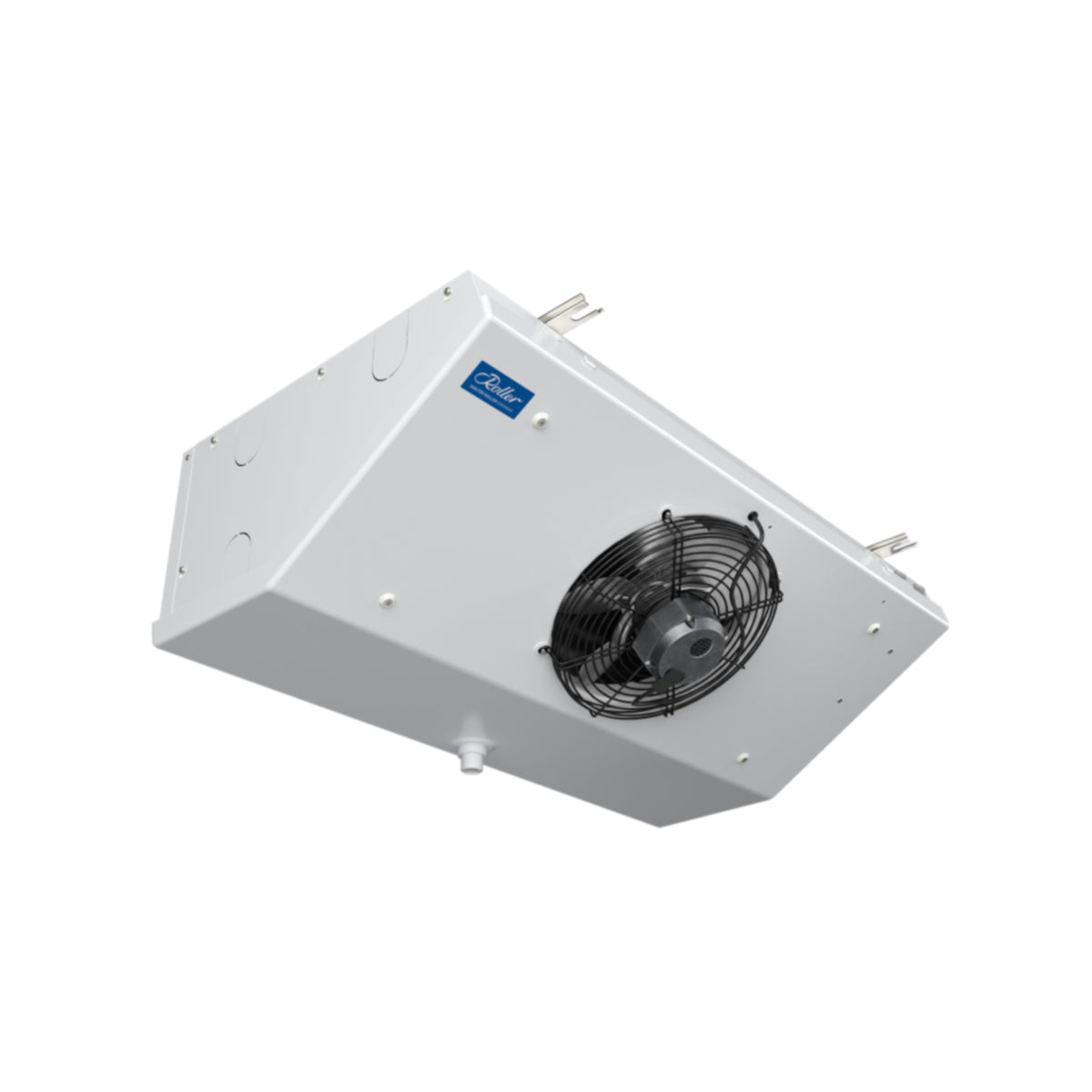

DLK431EC Ceiling Evaporator Roller

Ceiling Evaporator DLK431EC | 1.54 kW Series DLK/T flatline without defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles from various goods, or temporarily different uses. With even air distribution, it ensures a stable room temperature and withstands the highest hygiene requirements due to its corrosion resistance.

Technical Data

• E2V09
• Capacity R134a: 1.26 kW at -5°C to 7K, 1.46 kW at -5°C to 8K, 1.68 kW at -5°C to 9K, 1.90 kW at -5°C to 10K
• Capacity R513A: 1.25 kW at -5°C to 7K, 1.45 kW at -5°C to 8K, 1.67 kW at -5°C to 9K, 1.89 kW at -5°C to 10K
• Capacity R449A: 1.32 kW at -5°C to 7K, 1.53 kW at -5°C to 8K, 1.75 kW at -5°C to 9K, 1.99 kW at -5°C to 10K
• Capacity R452A: 1.29 kW at -5°C to 7K, 1.50 kW at -5°C to 8K, 1.72 kW at -5°C to 9K, 1.95 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 7.8 m²
• Airflow: 850 m³/h
• Throw distance: 6m
• Connections Inlet/Outlet: 12 mm / 18 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 U/min
• Fan Power: 31 W
• Air current: 0.24 A
• Tube volume: 1.6 dm³
• Dimensions (H x L x D): 246 x 860 x 497 mm
• Sound pressure level: 46 db(A)
• Sound power level: 67 db(A)
