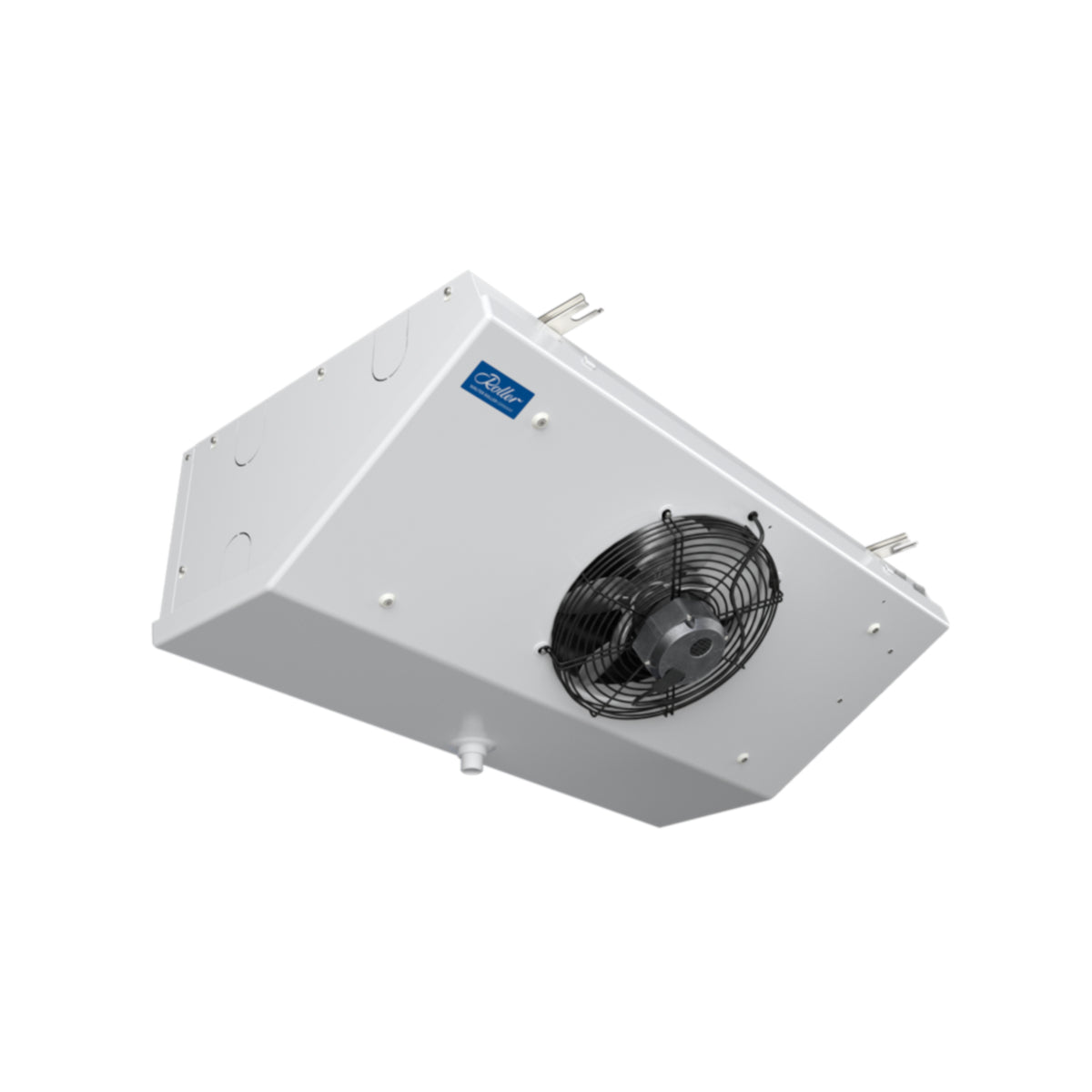

DLK421EC Ceiling Evaporator Roller

Ceiling Evaporator DLK421EC | 1.25 kW DLK/T flatline series without defrost heating

Thanks to its flat and robust design, the DLK is suitable for all cold rooms that are exposed to special requirements. Be it frequent access, aggressive particles from various goods or temporarily different uses. With even air distribution, it ensures a stable room temperature and meets the highest hygiene requirements due to its corrosion resistance.

Technical data

• E2V09
• Capacity R134a: 1.04 kW at -5°C to 7K, 1.19 kW at -5°C to 8K, 1.36 kW at -5°C to 9K, 1.54 kW at -5°C to 10K
• Capacity R513A: 1.03 kW at -5°C to 7K, 1.18 kW at -5°C to 8K, 1.35 kW at -5°C to 9K, 1.54 kW at -5°C to 10K
• Capacity R449A: 1.08 kW at -5°C to 7K, 1.24 kW at -5°C to 8K, 1.42 kW at -5°C to 9K, 1.61 kW at -5°C to 10K
• Capacity R452A: 1.06 kW at -5°C to 7K, 1.22 kW at -5°C to 8K, 1.39 kW at -5°C to 9K, 1.58 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 5.9 m²
• Air flow: 890 m³/h
• Throw distance: 7m
• Connections Inlet/Outlet: 12 mm / 18 mm
• Number x Diameter of Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 U/min
• Fan Power: 31 W
• Air flow: 0.24 A
• Tube volume: 1.1 dm³
• Dimensions (H x L x D): 246 x 860 x 497 mm
• Sound pressure level: 46 db(A)
• Sound power level: 67 db(A)
