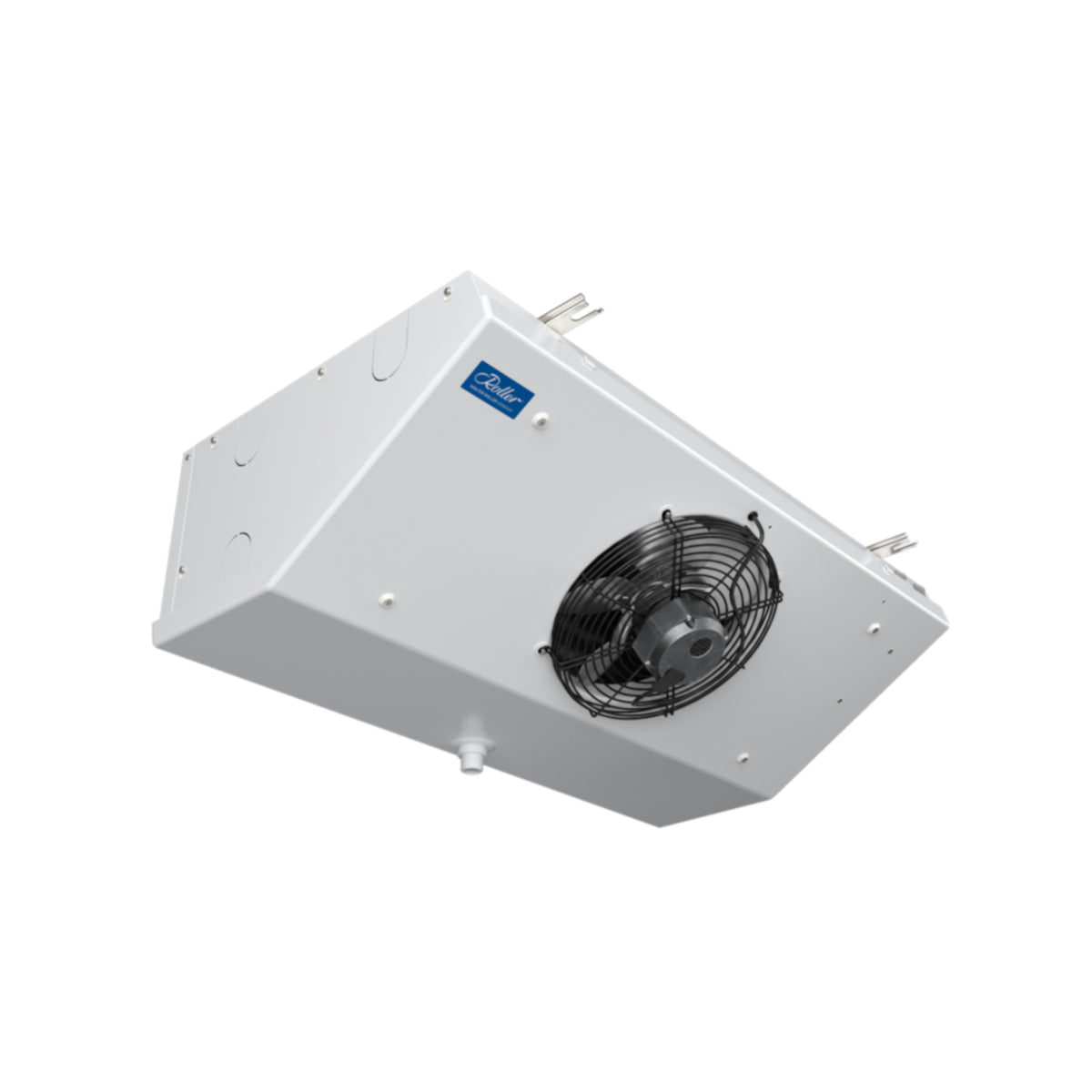

DLK412EC Ceiling Evaporator Roller

Ceiling Evaporator DLK412EC | 2.19 kW DLK/T flatline series without defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles from various goods, or temporarily different applications. With uniform air distribution, it ensures a stable room temperature and, thanks to its corrosion resistance, meets the highest hygiene requirements.

Technical Data

• E2V11
• Capacity R134a: 1.82 kW at -5°C to 7K, 2.07 kW at -5°C to 8K, 2.35 kW at -5°C to 9K, 2.66 kW at -5°C to 10K
• Capacity R513A: 1.81 kW at -5°C to 7K, 2.06 kW at -5°C to 8K, 2.34 kW at -5°C to 9K, 2.64 kW at -5°C to 10K
• Capacity R449A: 1.91 kW at -5°C to 7K, 2.17 kW at -5°C to 8K, 2.46 kW at -5°C to 9K, 2.78 kW at -5°C to 10K
• Capacity R452A: 1.87 kW at -5°C to 7K, 2.12 kW at -5°C to 8K, 2.41 kW at -5°C to 9K, 2.72 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 10.5 m²
• Air flow: 1480 m³/h
• Air throw: 7m
• Connections inlet/outlet: 12 mm / 18 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Airflow: 0.24 A
• Pipe content: 2.0 dm³
• Dimensions (H x L x D): 246 x 1062 x 497 mm
• Sound pressure level: 49 db(A)
• Sound power level: 70 db(A)
