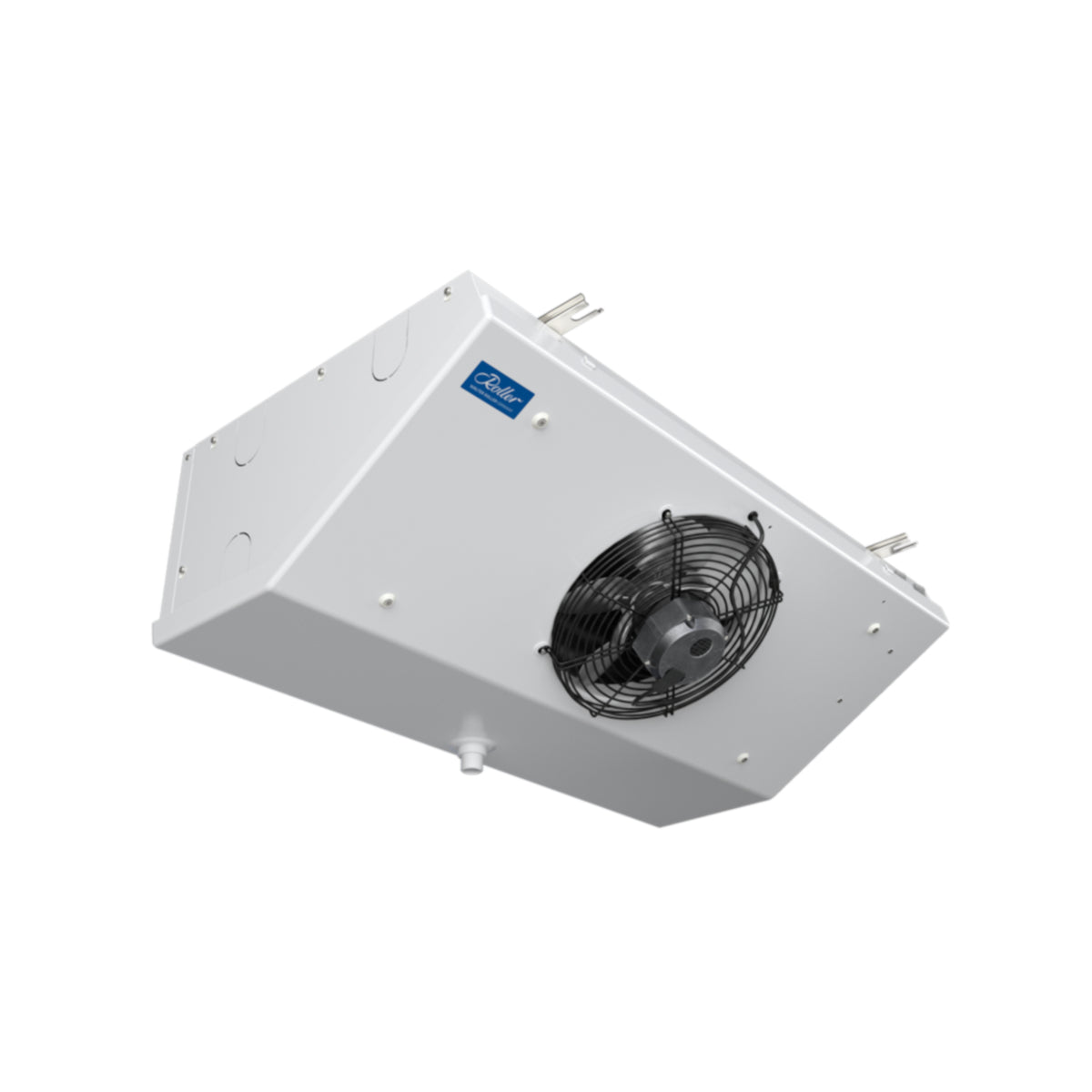

DLK411EC Ceiling Evaporator Roller

Ceiling Evaporator DLK411EC | 1.10 kW Series DLK/T flatline without defrost heater Roller

Due to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements. Be it frequent access, aggressive particles due to various goods, or temporarily different uses. With uniform air distribution, it ensures a stable room temperature and withstands the highest hygiene requirements due to its corrosion resistance.

Technical Data

• E2V09
• Capacity R134a: 0.910 kW at -5°C to 7K, 1.04 kW at -5°C to 8K, 1.20 kW at -5°C to 9K, 1.36 kW at -5°C to 10K
• Capacity R513A: 0.910 kW at -5°C to 7K, 1.04 kW at -5°C to 8K, 1.19 kW at -5°C to 9K, 1.36 kW at -5°C to 10K
• Capacity R449A: 0.960 kW at -5°C to 7K, 1.09 kW at -5°C to 8K, 1.25 kW at -5°C to 9K, 1.43 kW at -5°C to 10K
• Capacity R452A: 0.940 kW at -5°C to 7K, 1.07 kW at -5°C to 8K, 1.22 kW at -5°C to 9K, 1.40 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 5.2 m²
• Air flow: 740 m³/h
• Throw distance: 5m
• Connections inlet/outlet: 10 mm / 10 mm
• Number x Diameter Fans: 1 x 250 mm
• Fan Voltage: 230V 50/60 Hz
• Fan Speed: 1400 rpm
• Fan Power: 31 W
• Air current: 0.24 A
• Pipe content: 1.0 dm³
• Dimensions (H x L x D): 246 x 660 x 497 mm
• Sound pressure level: 46 db(A)
• Sound power level: 67 db(A)
