DLK401EC Ceiling evaporator Roller

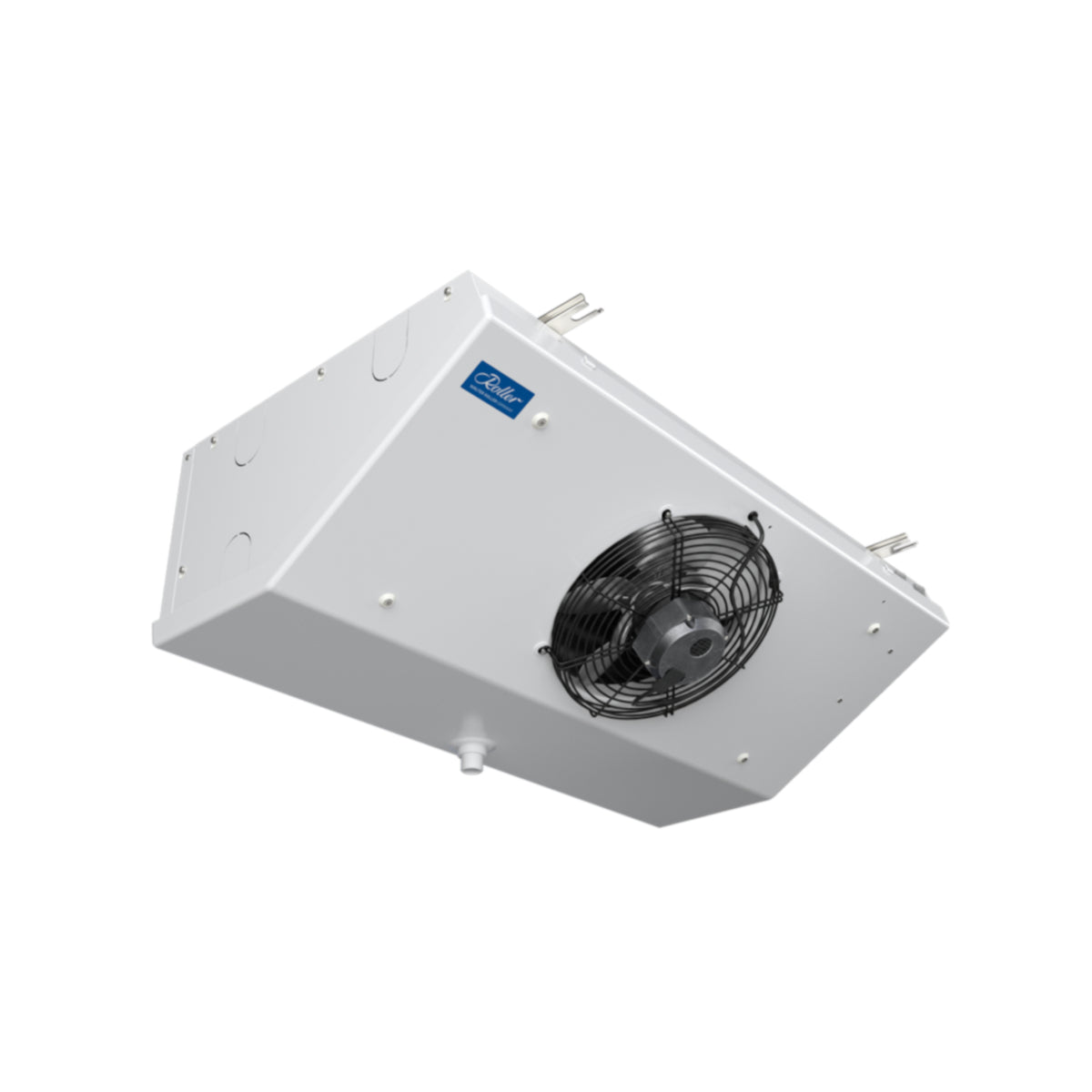

Ceiling Evaporator DLK401EC | 0.86 kW DLK/T flatline series without defrost heater

Thanks to its flat and robust design, the DLK is suitable for all cold rooms exposed to special requirements, be it frequent access, aggressive particles from various goods, or temporarily different uses. With uniform air distribution, it ensures a stable room temperature and, thanks to its corrosion resistance, meets the highest hygiene requirements.

Technical data

• E2V05
• Capacity R134a: 0.700 kW at -5°C to 7K, 0.820 kW at -5°C to 8K, 0.950 kW at -5°C to 9K, 1.09 kW at -5°C to 10K
• Capacity R513A: 0.700 kW at -5°C to 7K, 0.810 kW at -5°C to 8K, 0.950 kW at -5°C to 9K, 1.09 kW at -5°C to 10K
• Capacity R449A: 0.730 kW at -5°C to 7K, 0.860 kW at -5°C to 8K, 1.00 kW at -5°C to 9K, 1.14 kW at -5°C to 10K
• Capacity R452A: 0.720 kW at -5°C to 7K, 0.840 kW at -5°C to 8K, 0.970 kW at -5°C to 9K, 1.12 kW at -5°C to 10K
• Fin spacing: 4mm
• Cooling surface: 3.9 m²
• Airflow: 780 m³/h
• Throw: 6m
• Connections inlet/outlet: 10 mm / 10 mm
• Number x Diameter fans: 1 x 250 mm
• Fan voltage: 230V 50/60 Hz
• Fan speed: 1400 rpm
• Fan power: 31 W
• Airflow: 0.24 A
• Tube volume: 0.8 dm³
• Dimensions (H x L x D): 246 x 660 x 497 mm
• Sound pressure level: 46 dB(A)
• Sound power level: 67 dB(A)
