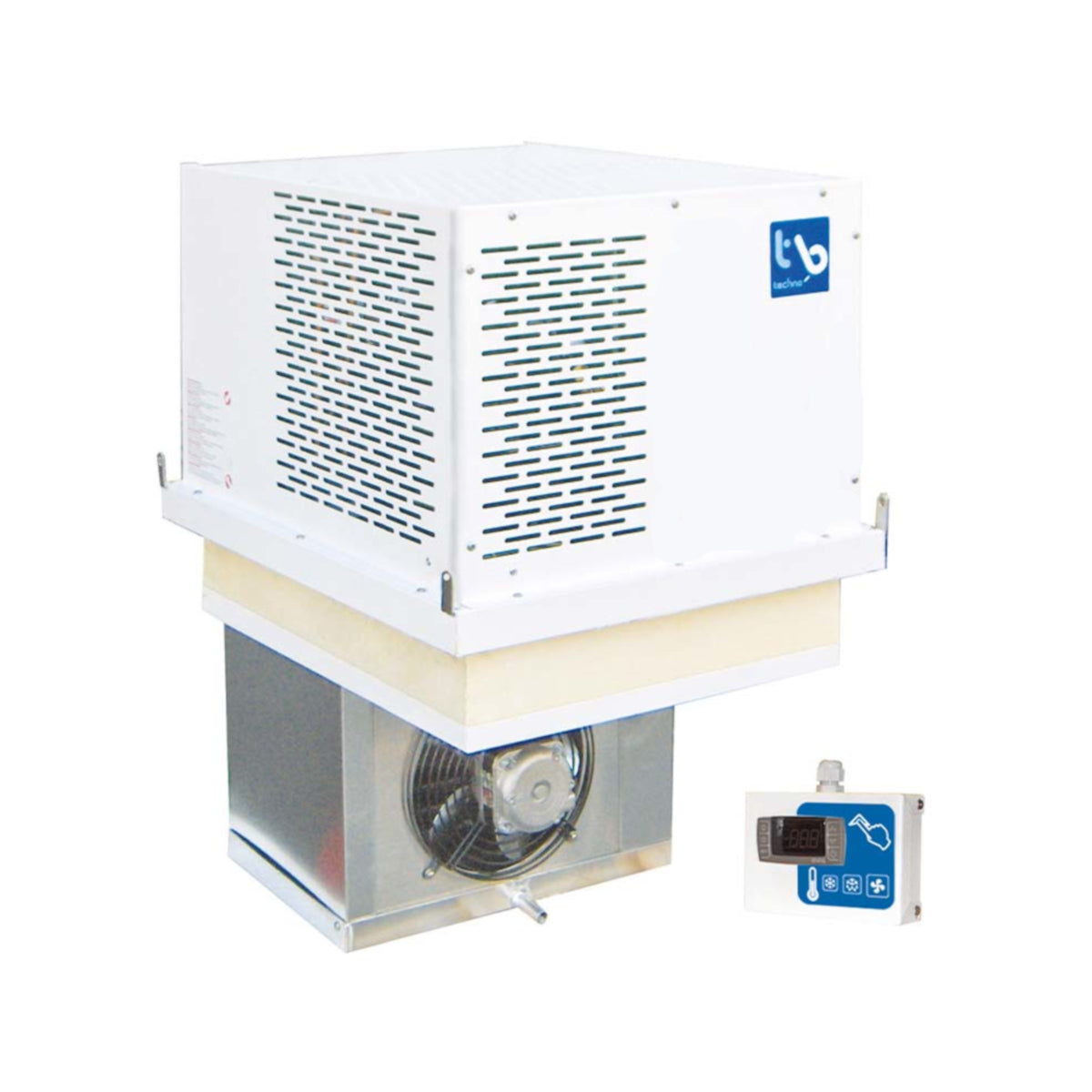

Chiller PTW030 Ceiling Plug

Ceiling Mounted Refrigeration Unit PTW030

Ready-to-install ceiling-mounted refrigeration unit PTW030 from Technoblock for normal cooling with energy-saving hot gas defrost, high-pressure switch, and remote control panel with a cable length of 5m. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is hung into a prepared opening in the ceiling, so that the evaporator with fan is inside the cold room and the unit is positioned on top of the cold room ceiling (see installation diagram). Replaces models PTX030, SFN030, SFN1030.

The unit is suitable for cold rooms:

• up to 9.2 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 5.8 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 4.0 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

Detailed performance data can be found in the technical data sheet.

General Features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 0.68 kW
• Displacement: 1.54 m³/h
• Ceiling cutout: 440 x 520 mm
• Injection system: Capillary
• Preset temperature range: +5°C to -5°C
