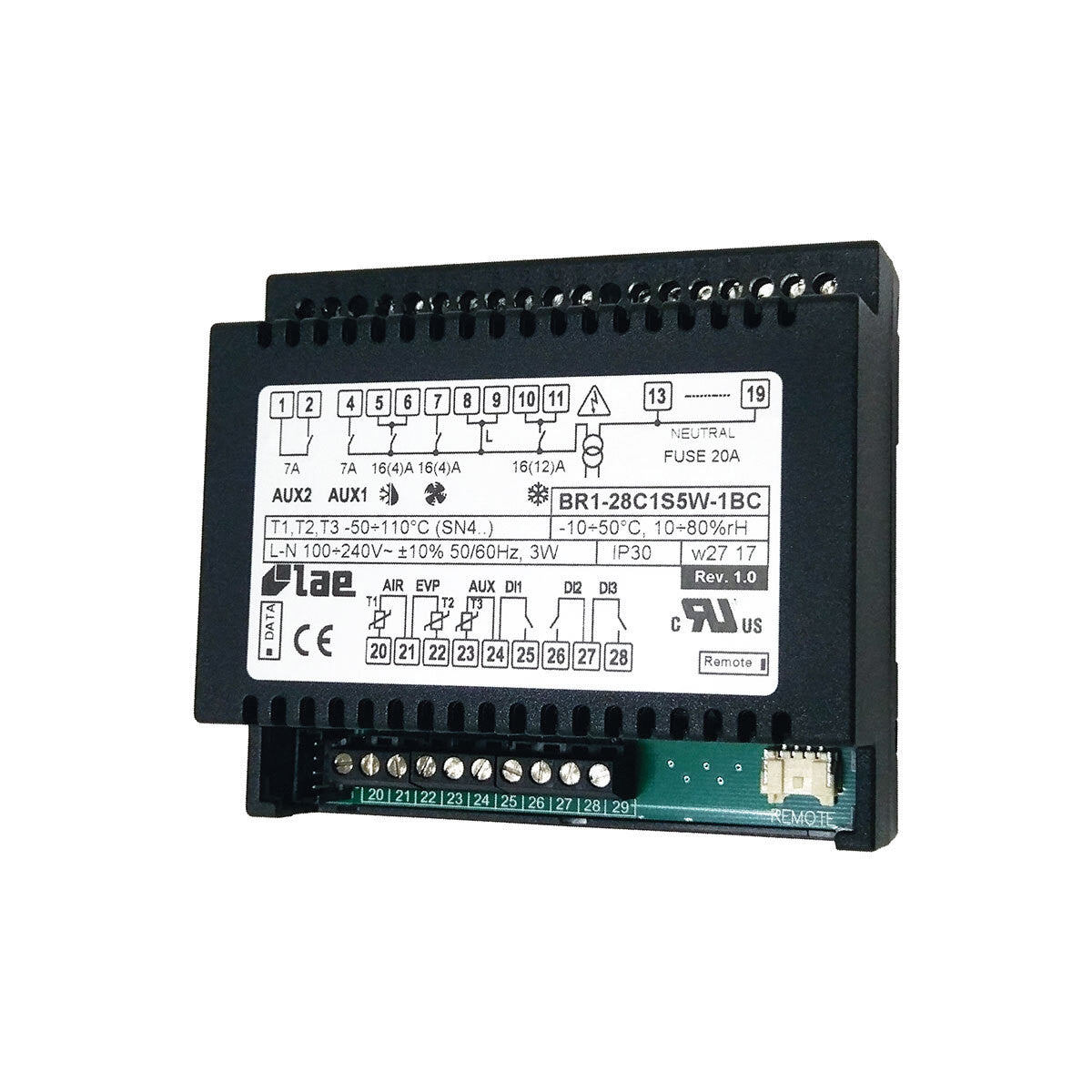

BR1-28C1S5W-2BC Cold Store Power Module Lae

BR1-28C1S5W-2BC COOLcon cold room module for replacement without sensor Lae

Lae BR1-28C1S5W-2B Intelligent Split Cold Room Power Module with Real-time Defrost for DIN Rail Mounting / Connection for DU5-S or Touch Display incl. 3x Sensors. The BR1 modules, due to their high performance, are used for on-site control of cold rooms. They are also used by many OEMs and are therefore often required as a replacement type in service operations.

Technical Data

• Recording according to TK regulation via sensor T3
• Optimized defrosting of 2 evaporators
• Time-delayed start of 2 compressors
• Defrosting via 6 adjustable times or by interval
• Defrost synchronization between multiple controllers
• Two freely configurable AUX outputs
• Universal power supply 100 to 230 V AC
• Integration into LAE monitoring systems - wired or wireless (RF module)
• 16A relay evaporator sensor especially for the use of EC motors
• Door contact
• 1 relay output magnetic valve for valve
• 1 relay output 16(4) A defrost
• 1 relay output 16(4) A evaporator fan
• 1 relay output 7 A cold room light
• 1 relay output 7 A AUX potential-free
• Release for Sanden CDU
• Input: DI1 ... DI3 (configurable)
• Sensor inputs: SN4B20P1...3 / NTC10K
• Defrosting via real-time with up to 6 times, via interval.
• Optimized defrosting of 2 evaporators possible
• Dimensions: 105 x 91.3 x 55 mm
• RS485 interface for integration into monitoring systems
• Front protection type: IP40
• Resolution: 0.1°
• Wall mounting / DIN rail
• Certification: CE

Areas of application: switchgear construction, cold room control, cold rooms, refrigerators, refrigerated counters, refrigerated wall display units, etc.
