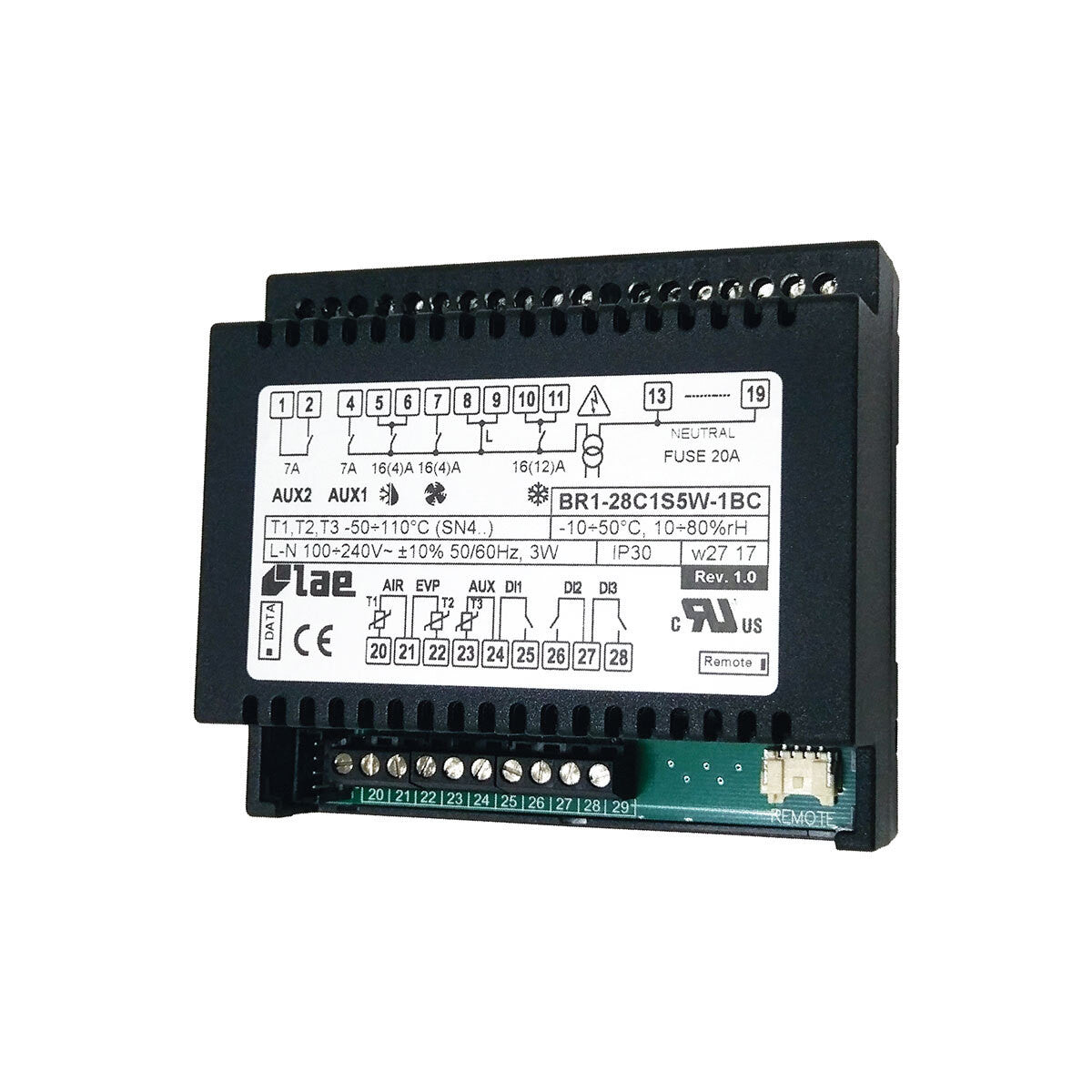

BR1-28C1S5W-2B Refrigeration Unit Performance Module Lae

BR1-28C1S5W-2B Intelligent Split Refrigeration Power Module with Real-time Defrost for DIN Rail Mounting Lae

Lae BR1-28C1S5W-2B Intelligent split refrigeration power module with real-time defrost for DIN rail mounting / connection for DU5-S or touch display including 3x sensors. Thanks to their high performance, BR1 modules are used in the on-site control of cold rooms. They are also used by many OEMs and are therefore often needed as a replacement type in service operations.

Technical Data

• Recording according to TK regulation via sensor T3
• Optimized defrosting of 2 evaporators
• Delayed start of 2 compressors
• Defrosting via 6 adjustable times or by interval
• Defrost synchronization between multiple controllers
• Two freely configurable AUX outputs
• Universal power supply 100 to 230 V AC
• Integration into LAE monitoring systems - wired or wireless (RF module)
• 16A relay evaporator sensor especially for the use of EC motors
• Door contact
• 1 relay output 16 (12) A compressor
• 1 relay output 16 (4) A defrost
• 1 relay output 16 (4) A evaporator fan
• 1 relay output 7 A AUX 1
• 1 relay output 7 A AUX 2
• Input: DI1 ... DI3 (configurable)
• 3 NTC 10k sensors (included) SN4B20P1...3
• Resolution: 0.1°
• Dimensions: 105 x 91.3 x 55 mm
• RS485 interface for integration into monitoring systems
• Front protection class: IP40
• Input: DI1 ... DI3 (configurable)
• Wall mounting / DIN rail
• Certification: CE

Areas of application: Switchgear construction, cold room control, cold rooms, refrigerators, refrigerated counters, refrigerated wall shelves, etc.
