Cooling Unit ATF170 Piggyback

Huckepack ATF170

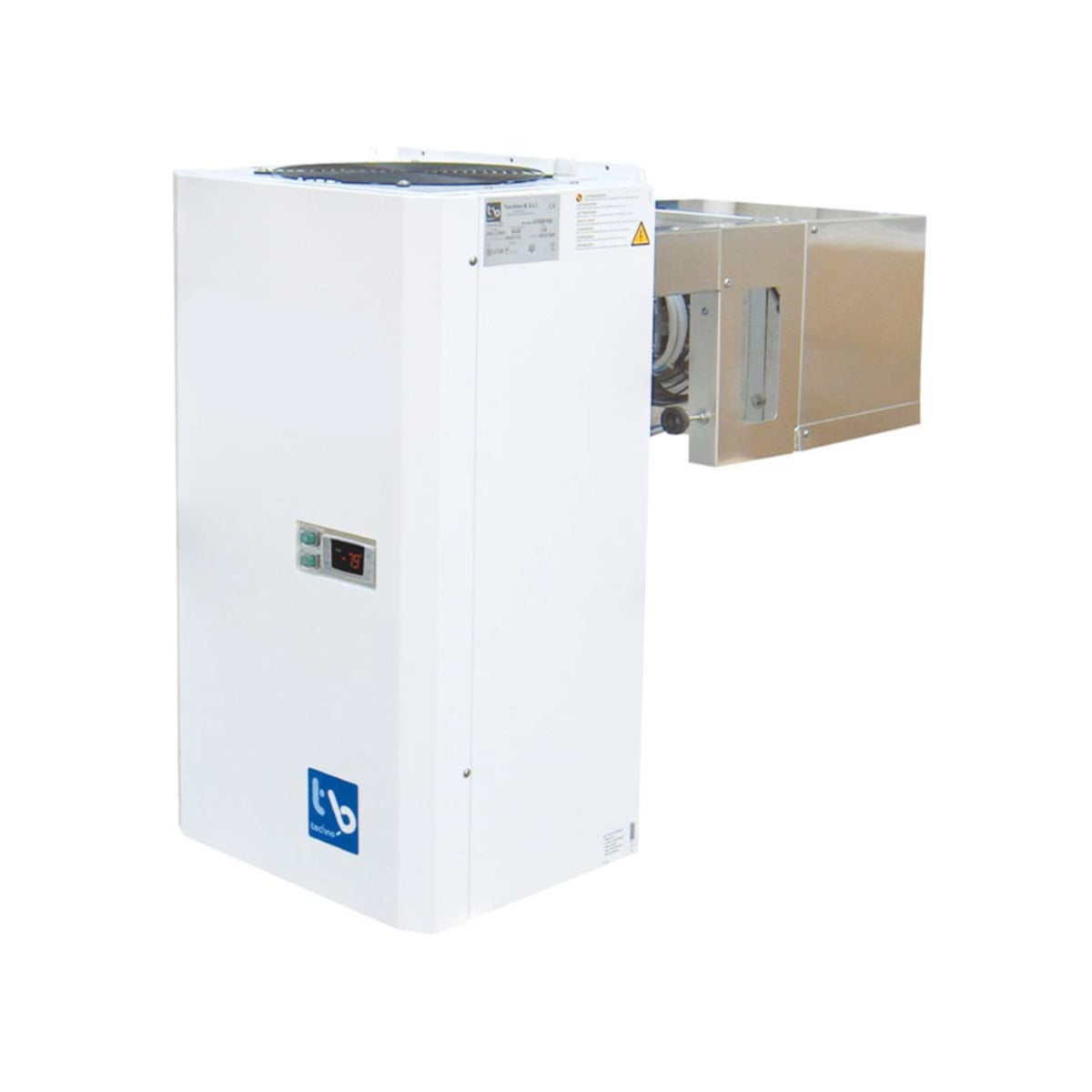

Ready-to-use Huckepack ATF170 refrigeration unit from Technoblock for deep freezing with energy-saving hot gas defrosting and high-pressure pressostat. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is hung into a prepared opening in the cold room wall, so that the evaporator with fan is inside the cell and the unit is on the outside of the wall. Replaces models ATZ170, AK170 and ACK170.

The unit is suitable for cold rooms:

• up to 7.1 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = -18°C
• up to 4.7 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = -22°C
• up to 3.6 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = -25°C

The exact performance data can be found in the technical data sheet.

General Features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 1.35 kW
• Displacement: 5.99 m³/h
• Dimensions (H x W): 767 x 485 mm
• Injection system: Capillary
• Preset temperature range: -18°C to -25°C
