Cooling unit ATTW250 Huckepack

Huckepack ATTW250

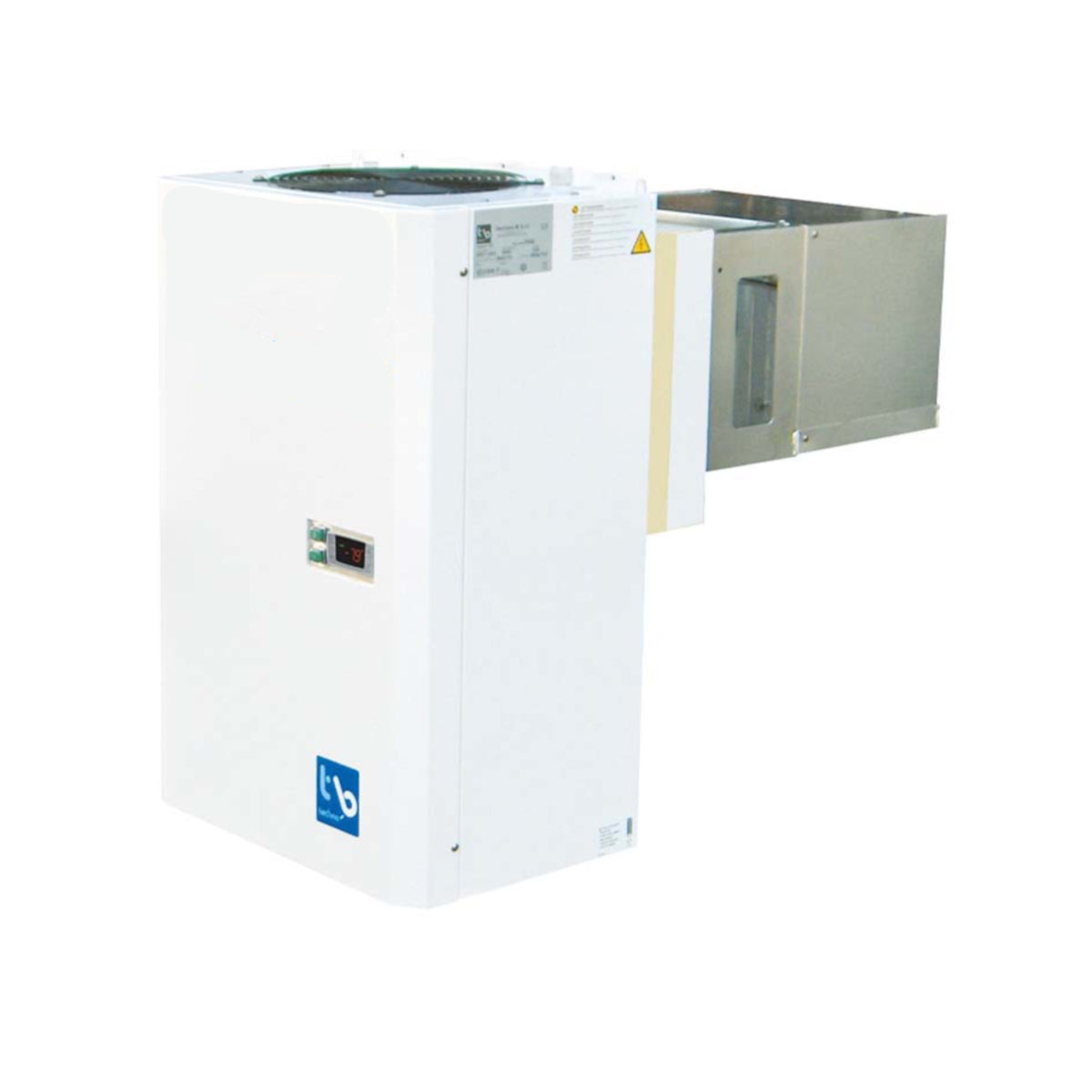

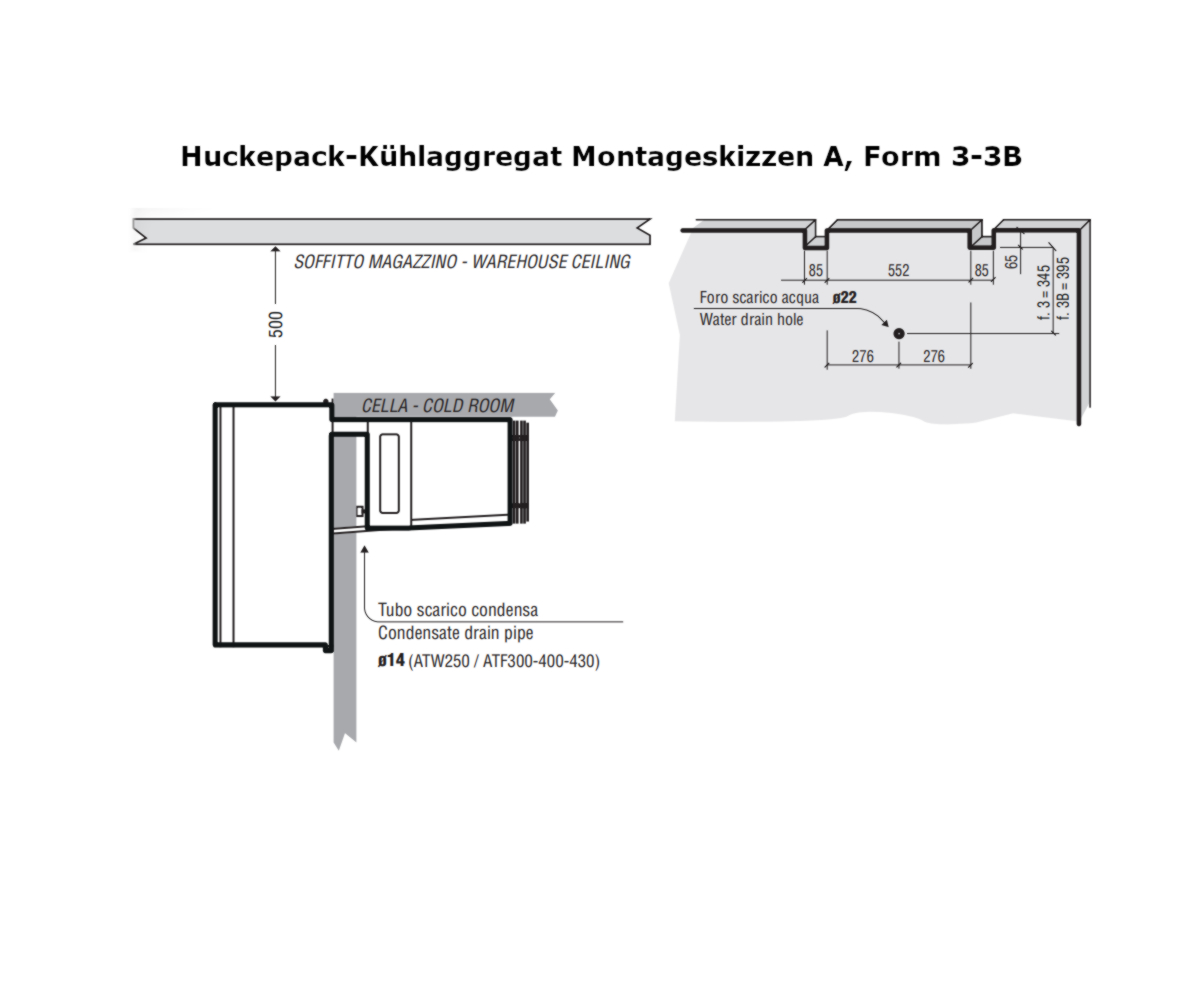

Technoblock ATTW250 plug-and-play monoblock refrigeration unit for normal cooling with energy-saving hot gas defrost and high-pressure switch. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is suspended in a prepared opening in the cold room wall, so that the evaporator with fan is inside the cell and the unit is on the outside of the wall. Replaces models ATN4250, ATN250 & ACN250.

The unit is suitable for cold rooms:

• up to 85.4 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 59.1 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 32.5 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

with a maximum wall thickness of 122 mm.

The exact performance data can be found in the technical data sheet.

General features:

• Mains voltage: 400V/3/50Hz
• Refrigerant: R449A
• Max. power consumption: 3.08 kW
• Displacement: 9.27 m³/h
• Dimensions (H x W): 860 x 770 mm
• Injection system: capillary
• Pre-set temperature range: +5°C to -5°C
• Max. wall thickness: 122 mm
