Cooling unit ATTW120V628 wall plug

Wall plug unit ATTW120V628

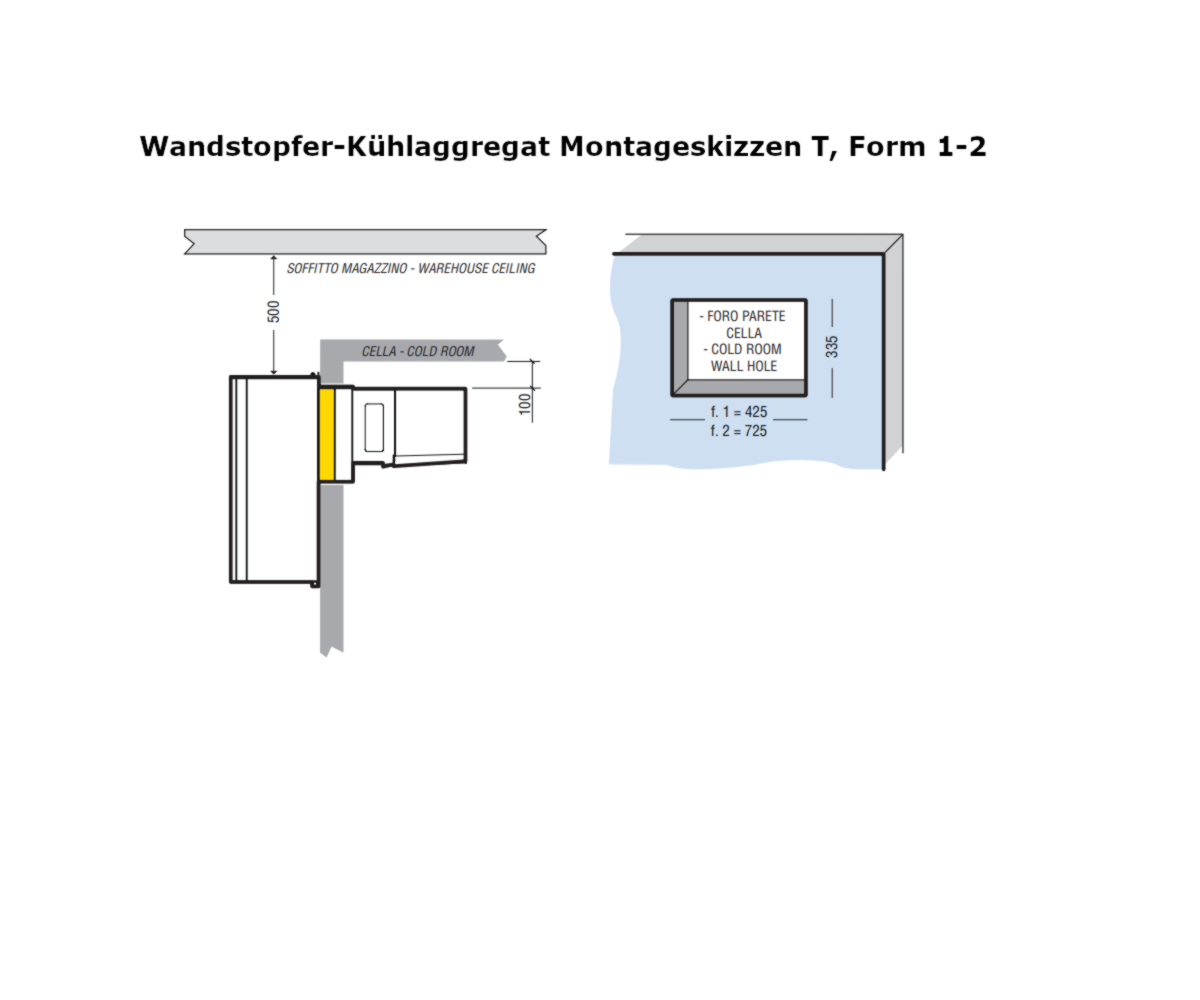

Plug-in wall plug refrigeration unit ATTW120V628 from Technoblock for normal cooling. The unit is pre-filled with refrigerant. For assembly, it is hung in a prepared opening in the cold room wall, so that the evaporator with fan is located inside the cell and the unit is on the outside of the wall (see assembly diagram). Replaces models ATTW120, VN120 and VTN120,

The unit is suitable for cold rooms:

• up to 28.1 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 19.3 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 14.0 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

with a maximum wall thickness of 122 mm.

The exact performance data can be found in the technical data sheet.

General features:

• Mains voltage: 400V/3/50Hz
• Refrigerant: R449A
• Max. power consumption: 1.62 kW
• Swept volume: 4.51 m³/h
• Evaporator airflow: 1070 m³/h
• Throw: 5 m
• Injection system: Capillary
• Preset temperature range: +5°C to -5°C
• Wall opening: 725 x 335 mm
• Dimensions (W x D x H): 785 x 831 x 767 mm
• Max. wall thickness: 122 mm
