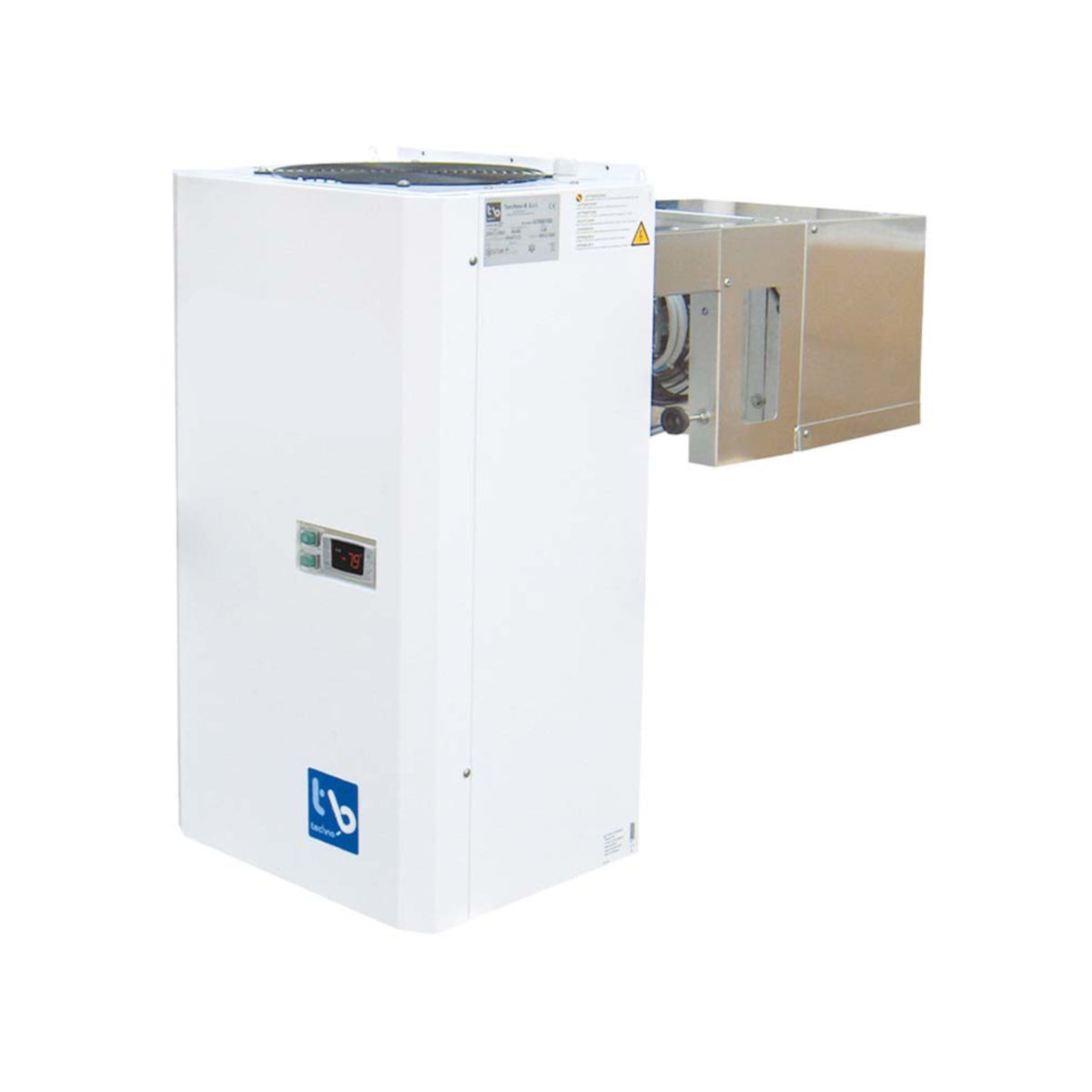

Refrigeration Unit ATW050 Piggyback

Huckepack ATW050

Ready-to-use Huckepack ATW050 refrigeration unit from Technoblock for normal cooling with energy-saving hot gas defrost and high-pressure presostat. The unit is pre-filled with refrigerant. During installation, the refrigeration unit is hung in a pre-prepared opening in the cold room wall, so that the evaporator with fan is inside the cell and the unit is on the outside of the wall. Replaces models ACN050, ATTW050 and ATX050.

The unit is suitable for cold rooms:

• up to 12.2 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 7.7 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 5.3 cubic meters room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

The exact performance data can be found in the technical data sheet.

General features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 0.71 kW
• Displacement: 2.09 m³/h
• Dimensions (H x W): 767 x 485 mm
• Injection system: Capillary
• Preset temperature range: +5°C to -5°C
