Cooling Unit ATTW030V628 Wall Plug

Thru-wall unit ATTW030V628

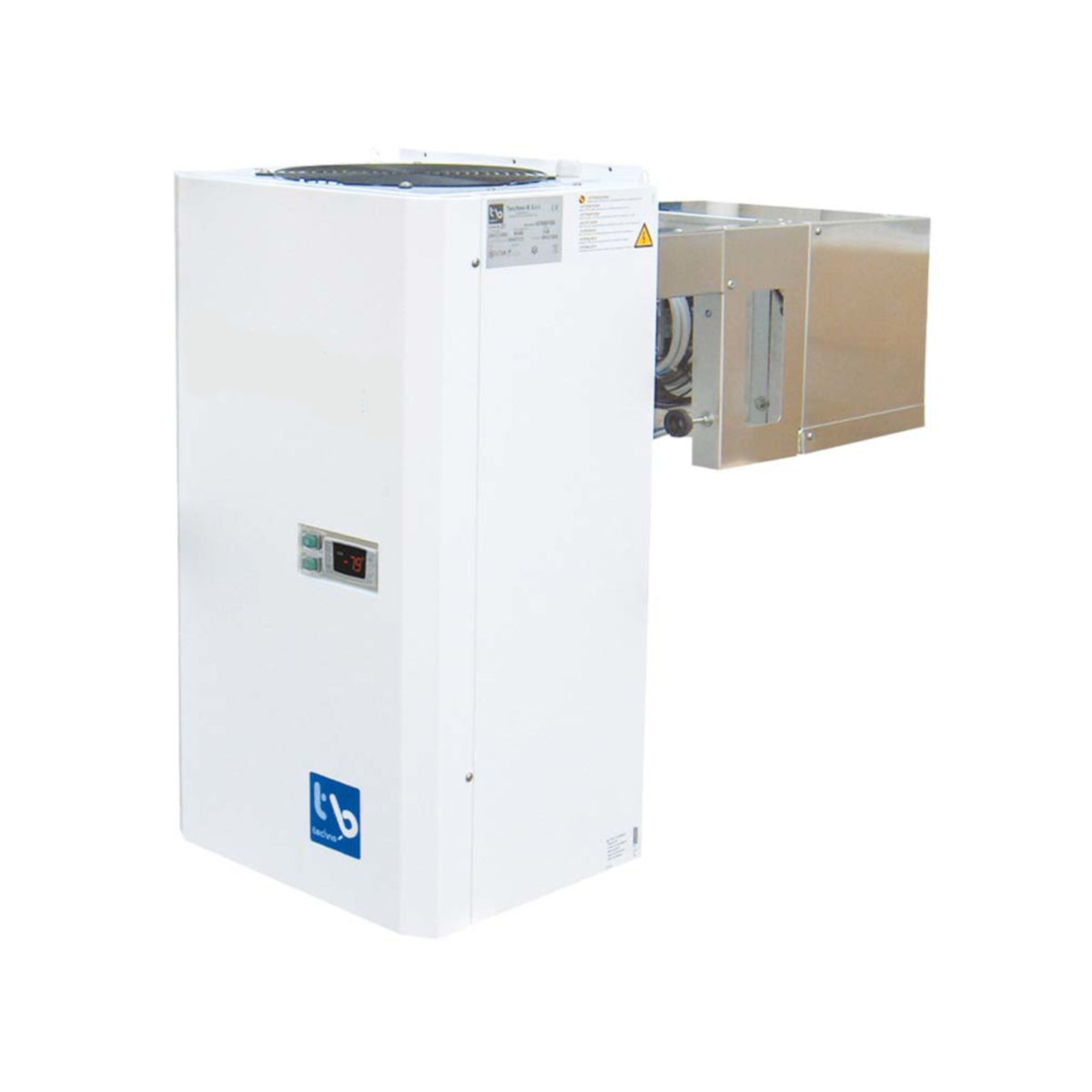

Plug-and-play thru-wall refrigeration unit ATTW030V628 from Technoblock for normal cooling. The unit is pre-filled with refrigerant. For installation, it is hung in a prepared opening in the cold room wall, so that the evaporator with fan is inside the cell and the unit is on the outside of the wall (see installation diagram). Replaces models ATTW030, VN030 and VTN030.

The unit is suitable for cold rooms:

• up to 9.2 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = +5°C
• up to 5.8 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = 0°C
• up to 4.0 cbm room size at an ambient temperature Ta = +32°C and room temperature Ti = -5°C

with a maximum wall thickness of 122 mm.

The exact performance data can be found in the technical data sheet.

General features:

• Mains voltage: 230V/1/50Hz
• Refrigerant: R449A
• Max. power consumption: 0.68 kW
• Displacement: 1.54 m³/h
• Evaporator air flow: 535 m³/h
• Throw distance: 5 m
• Injection system: Capillary
• Preset temperature range: +5°C to -5°C
• Wall opening: 425 x 335 mm
• Dimensions (W x D x H): 485 x 831 x 767 mm
• Max. wall thickness: 122 mm
