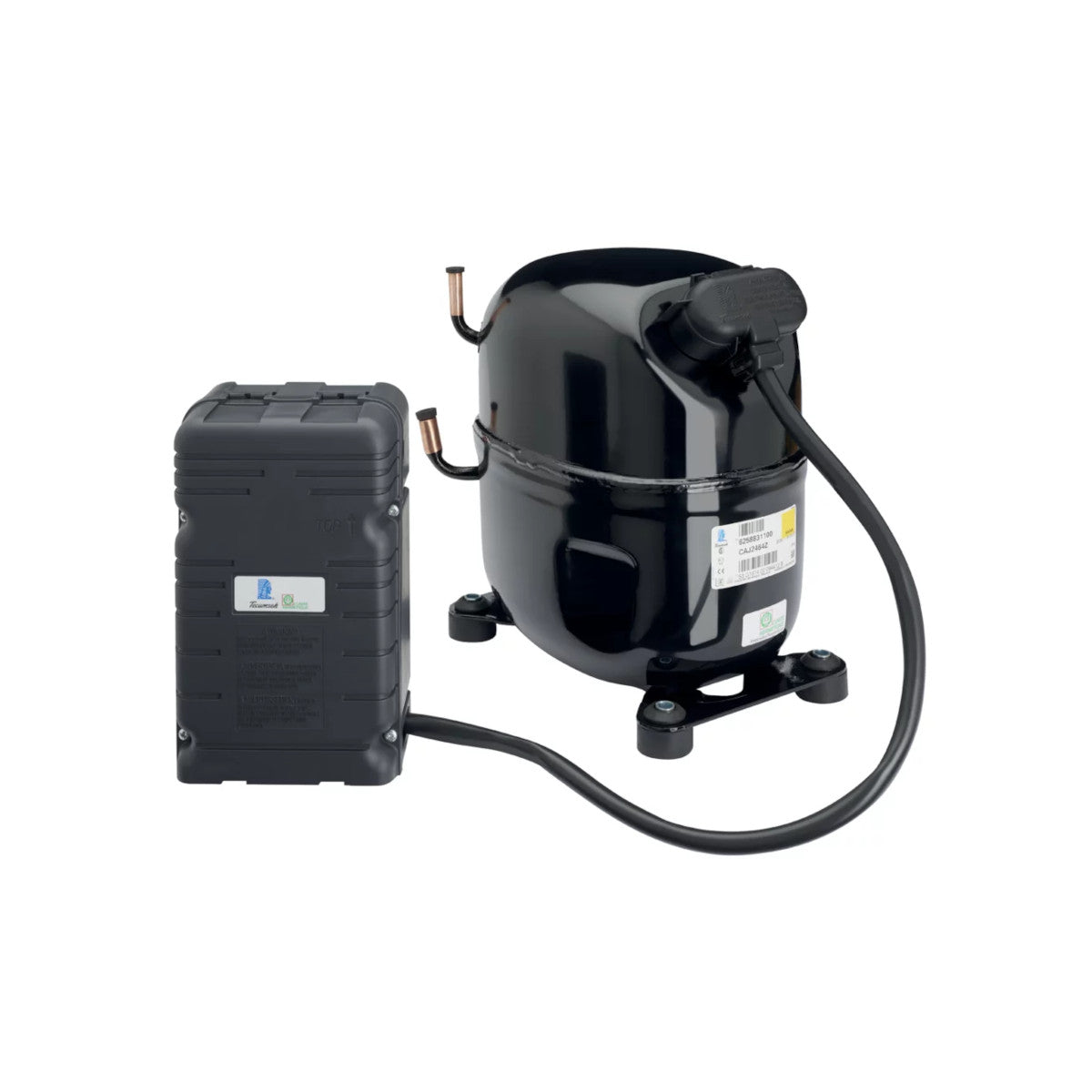

Compressor AJ4519P-FZ by Tecumseh
Fully hermetic reciprocating compressor AJ4519P-FZ for high-pressure applications by Tecumseh. Replaces models CAJ4519Z and CAJ4519X-FZ from Tecumseh L'Unité.
For exact performance data, please refer to the technical data sheet.
General features:
- Motor type: CSR
- Refrigerant: R404A, R452A, R448A, R449A, R455A, R454C
- Voltage: 220-240V/1/50Hz
- Max. current consumption: 16.8 A
- Displacement: 34.45 cm³
- Suction connection: 15.9 mm
- Discharge connection: 9.5 mm

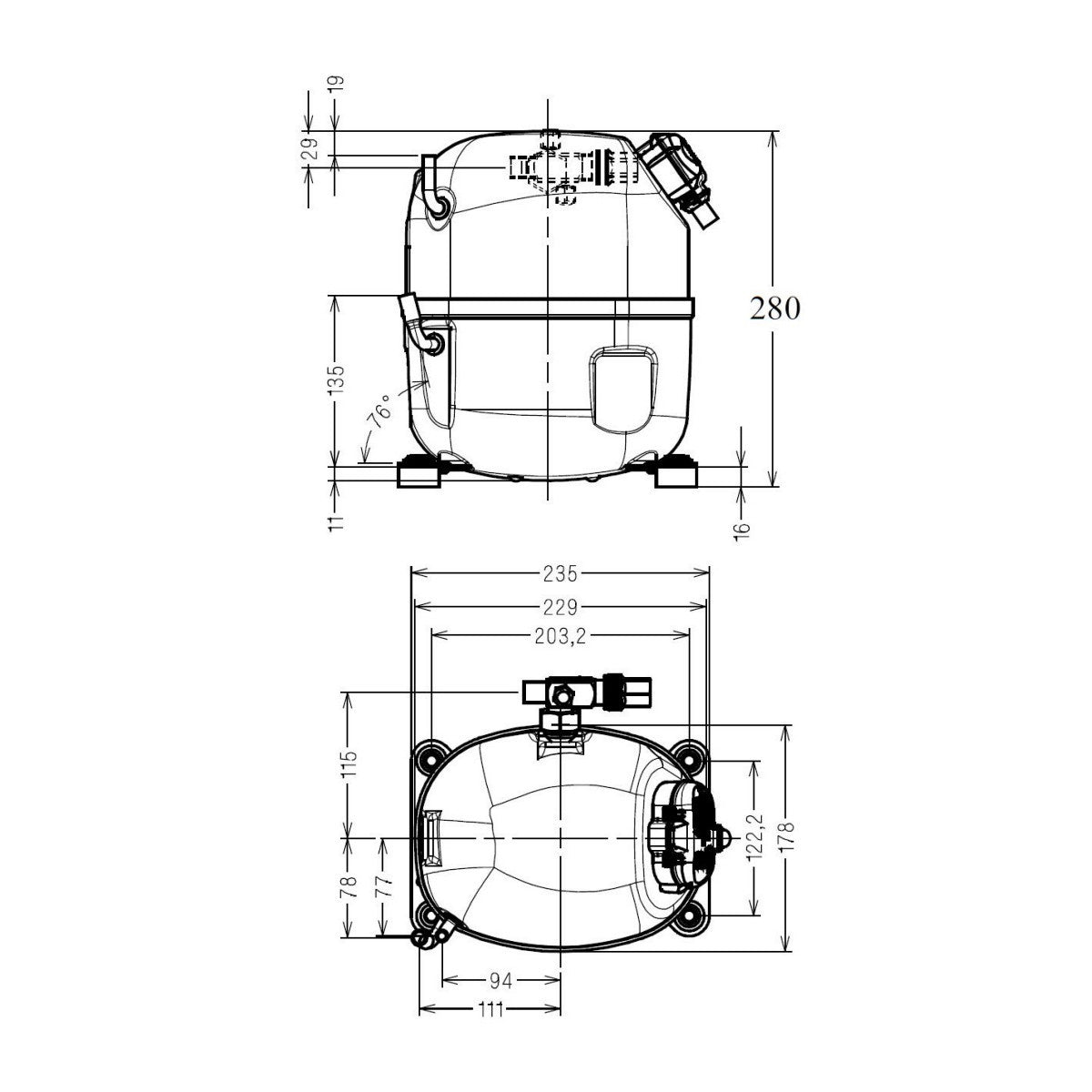

- Dimensions (LxWxH): 235 x 193 x 280mm
- high product quality
- high equipment and system robustness
- low energy consumption
