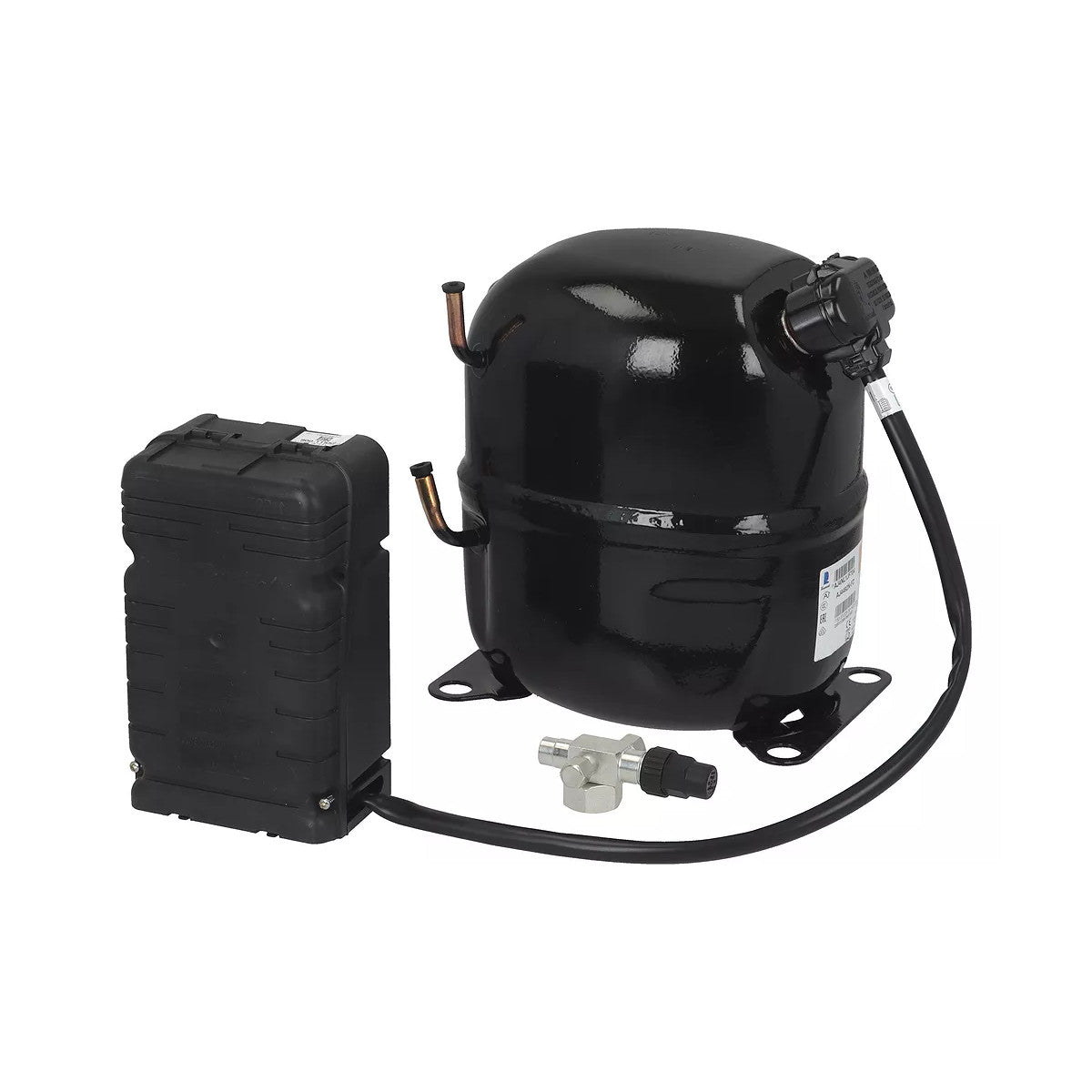

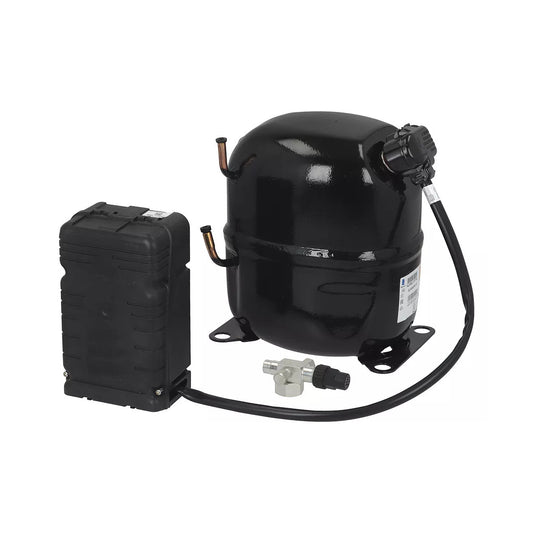

AJ4511N-TZ Compressor by Tecumseh
Fully hermetic reciprocating compressor AJ4511N-TZ for high-pressure applications by Tecumseh. Replaces model TAJ4511Y from Tecumseh L’Unité.
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: TRI
- Refrigerant: R134a, R513A, R1234yf
- Mains voltage: 400-440V/3/50-60Hz
- Max. current consumption: 4.2 A
- Displacement: 32.7 cm³
- Suction connection: 15.9 mm
- Discharge connection: 7.9 mm
- Dimensions (LxWxH): 235 x 178 x 280mm
- high product quality
- high equipment and system robustness
- low energy consumption
