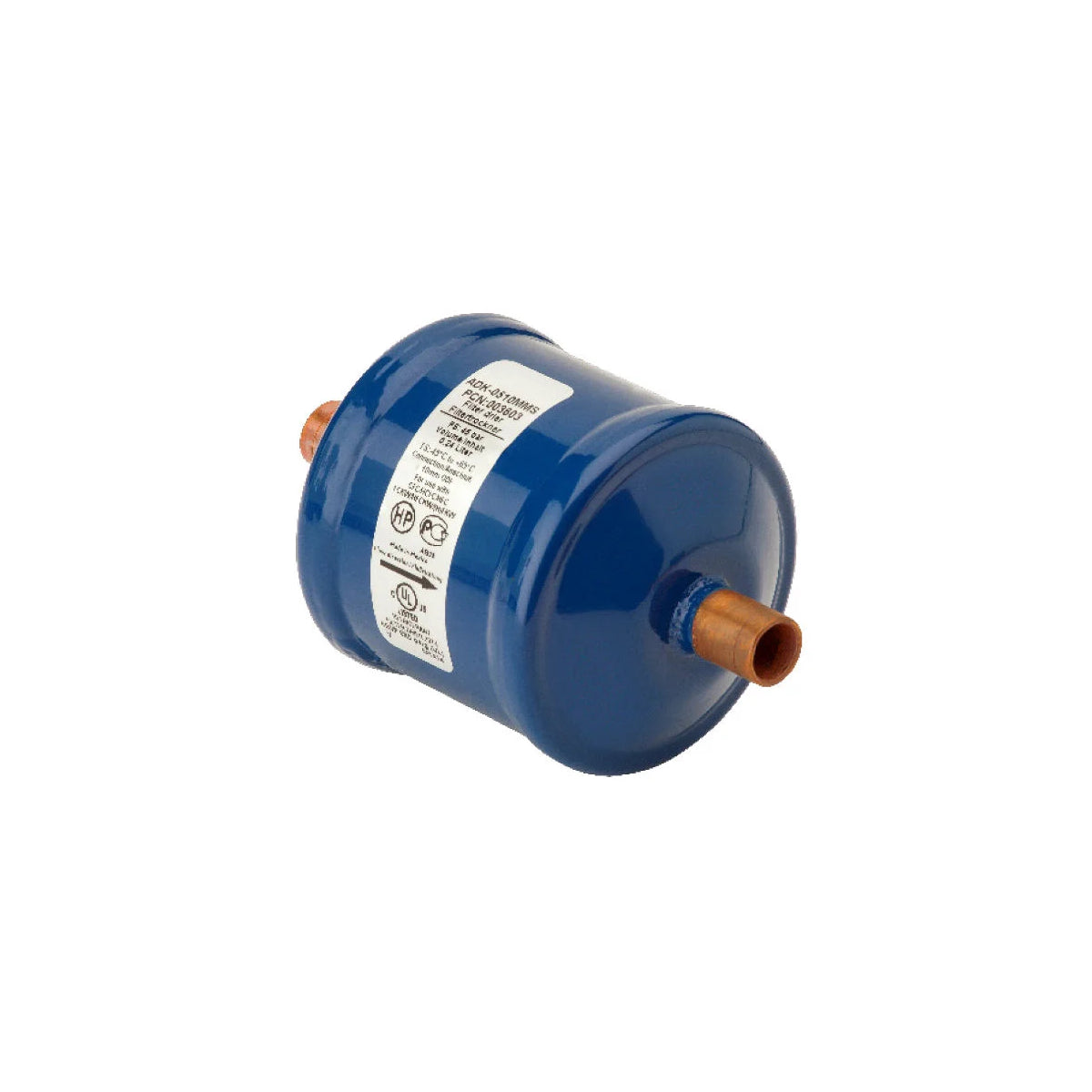

ADK165S Filter Drier 003621 Alco

Filter Drier ADK 305s solder 16 mm, 5/8" ODF Alco 003626

Filter Drier ADK165s / FDB165s Alco 003621 / 059323 ODF 5/8" (16 mm). Filter drier with 100% molecular sieve, for liquid refrigerants. Optimal mixture of molecular sieve and activated alumina.

Technical Data

• Connections: 5/8" ODF
• Length: 128 mm
• Outer diameter: 64 mm
• Drying capacity R134a: 24°C: 23 g, 52°C: 20.8 g
• Drying capacity R407C: 24°C: 16 g, 52°C: 13.8 g
• Liquid capacity: R134a: 45.6 kW, R454C: 36.8 kW, R407C: 47.4 kW, R455A: 39.0 kW, R1234yf: 32.8 kW, R744: 72.3 KW
• Temperature range: -40°C - +65°C
• Max. operating pressure: 45 bar
• High water absorption capacity
• High acid absorption capacity
• Fine filtration down to 20 micron
• Closed design
• CE marking according to PED 97/23 EC not required
• HP marking according to Pressure Equipment Directive
