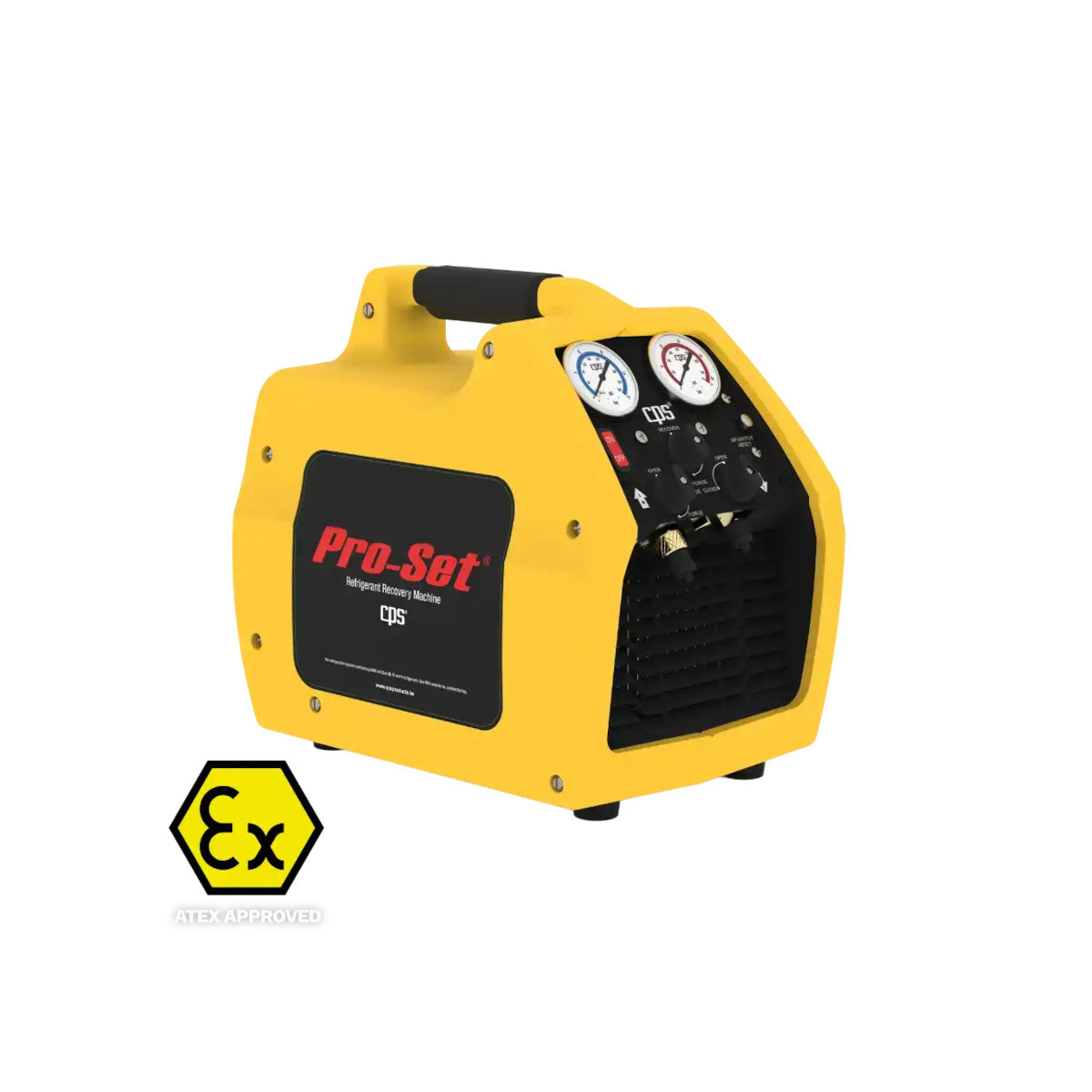

Recovery Machine TRS500E cps products

Recovery Unit Pro-Set TRS500E 220-240V/50Hz Safety Group A1, A2, A2L, A3 (ATEX approved)

Powerful, oil-free premium recovery unit, TR600E disposal unit from CPS, refrigerant disposal unit for private and commercial refrigerant systems. With improved airflow and improved compression, it maximizes recovery speed.

Technical data

• Compressor type: oil-free 1 cylinder compressor
• BLDC motor, Innovative wobble piston design
• Voltage: 220-240V/50Hz 115 /60Hz
• Motor power: 3/4 HP
• Operating temperature range: 0 °C to 50 °C
• Housing: double-walled, very robust
• Dual fan for extremely cool operation
• High pressure cut-off: at 38 bar
• Refrigerants: R134a, R404A, R410A, R22, R407C etc.
• Simple inlet and outlet valve blocks
• Dimensions: 350 x 22 x 30 cm

The TRS500E recovery unit is specifically designed for peak performance while meeting stringent ANSI 12.12.01 standards. Equipped with a BLDC motor and an innovative wobble piston design, it provides smooth, efficient operation without 50Hz degradation, ensuring consistent performance across all frequencies. Weighing just 9.5 kg, the TRS500E offers the ability to vent. With dual voltage (110–240 V), sealed crank and start relay construction, and its robust single-piston compressor, the TRS500E is versatile, durable, and safe in any recovery situation.
