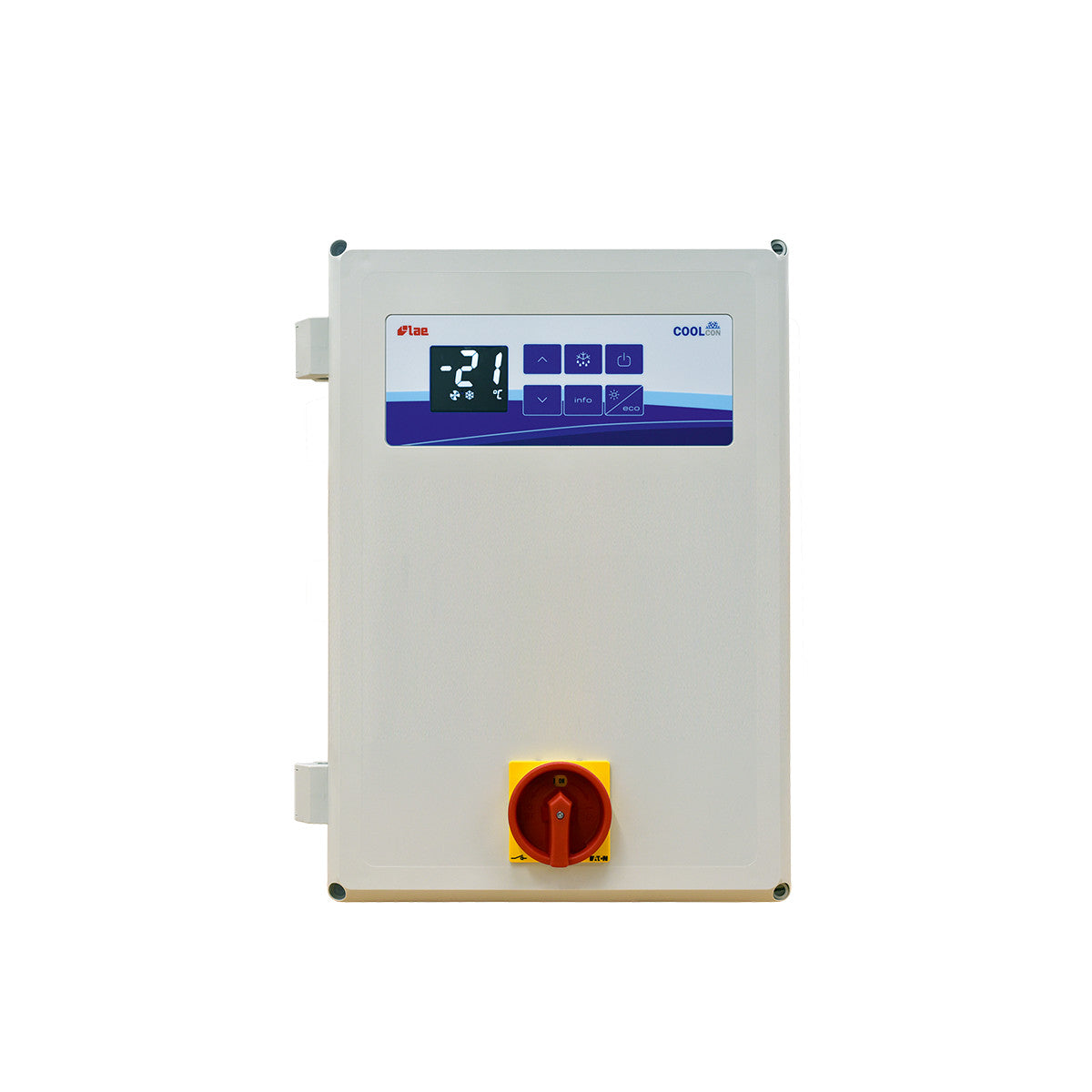

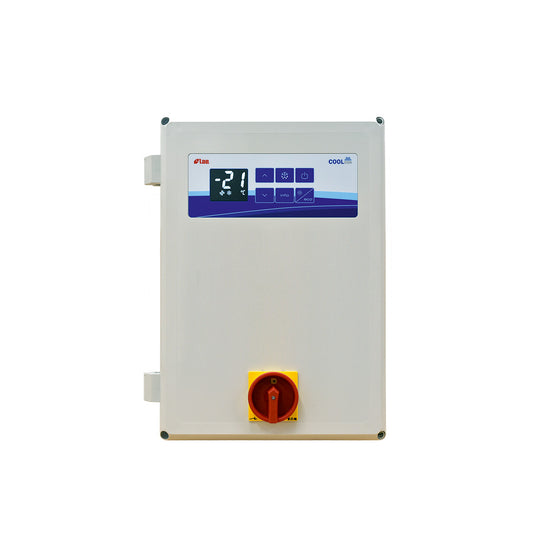

14DVA 400V without data logger COOLcon control cabinet

COOLcon Refrigeration Control 14DVA 400V / 10-14A. Defrost heater 400V /3A without data logger and 2 sensors

Technical Data

• Main switch: 32 A
• Sensor measuring range: - 40°C to + 105°C
• Electronics control range: - 50°C to + 110°C
• Resolution: 0.1°
• Sensor inputs: 3 x NTC 10k
• Screw terminals
• RS485
• Protection class: IP 65
• Voltage: 400V/3/50Hz
• max. operating current compressor 400V: 10 - 14 A
• max. power consumption defrost heater 400V: 5700 A
• max. operating current evaporator fan 230V: 3 A
• Dimensions (H x W x D): 450 x 315 x 145 mm

Function Temperature, fan operation, defrosting and alarm are controlled by the integrated power module BR1-28C1S5W-1BC. The use of new LCD technology offers you a large display with enormously high contrast. The integrated main switch switches on the system and controls it according to the parameter settings on the controller. Connections for safety chain (HP/LP etc.) and "pump-down" operation are available. Usage All refrigeration controls are equipped with an intelligent power module which has a real-time clock (6 defrost times, optimized evaporator fan control, START/STOP parameters for controlling timed actions, and a second parameter group). Whether it's for positive or deep-freeze systems, with the Coolcon refrigeration control, you always have the option of optimally adapting your systems to the needs and energy requirements on site.
