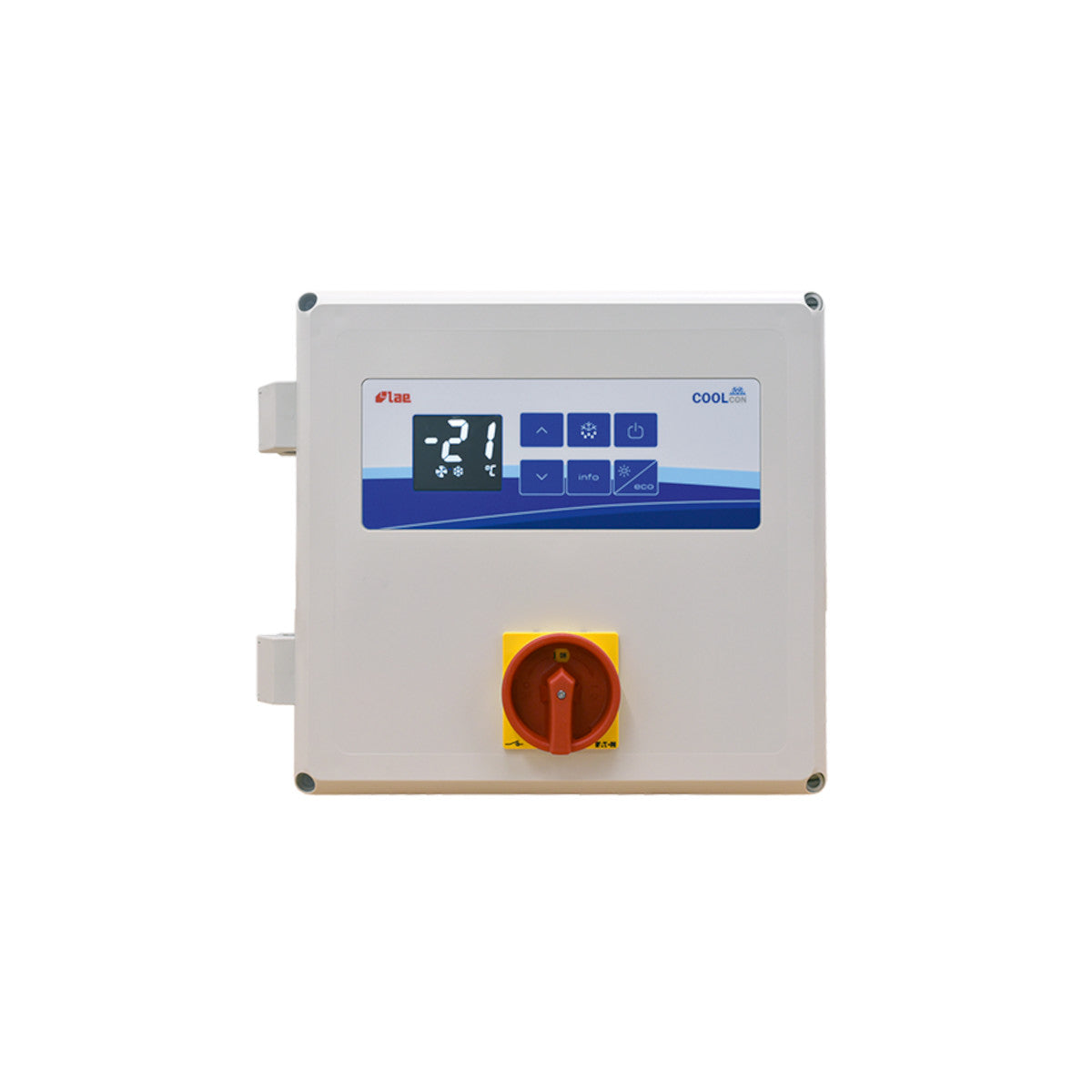

14DV 400V without data logger control cabinet COOLcon

COOLcon Refrigeration Control 14DV 400V / 10-14A. Defrost heater 230V /3A without data logger and 2 sensors

Technical Data

• Main switch: 32 A
• Sensor measuring range: - 40°C to + 105°C
• Electronic control range: - 50°C to + 110°C
• Resolution: 0.1°
• Sensor inputs: 3 x NTC 10k
• Screw terminals
• RS485
• Protection class: IP 65
• Voltage: 400V/3/50Hz
• Max. operating current compressor 400V: 10 - 14 A
• Max. power consumption defrost heater 230V: 3500 A
• Max. operating current evaporator fan 230V: 3 A
• Dimensions (H x W x D): 300 x 315 x 145 mm

Function Temperature, fan operation, defrosting and alarm are controlled via the integrated power module BR1-28C1S5W-1BC. The use of new LCD technology offers a large display with enormously high contrast. The integrated main switch turns on the system, which then regulates according to the parameter settings on the controller. Connections for safety chain (HP/LP etc.) and "pump-down" operation are available. Usage All refrigeration controls are equipped with an intelligent power module that features a real-time clock (6 defrost times, optimized evaporator fan control, START/STOP parameters for controlling timed actions, and a 2nd parameter group). Whether it's positive or deep-freeze systems, with the Coolcon refrigeration control, you always have the option to optimally adapt your systems to on-site needs and energy requirements.
