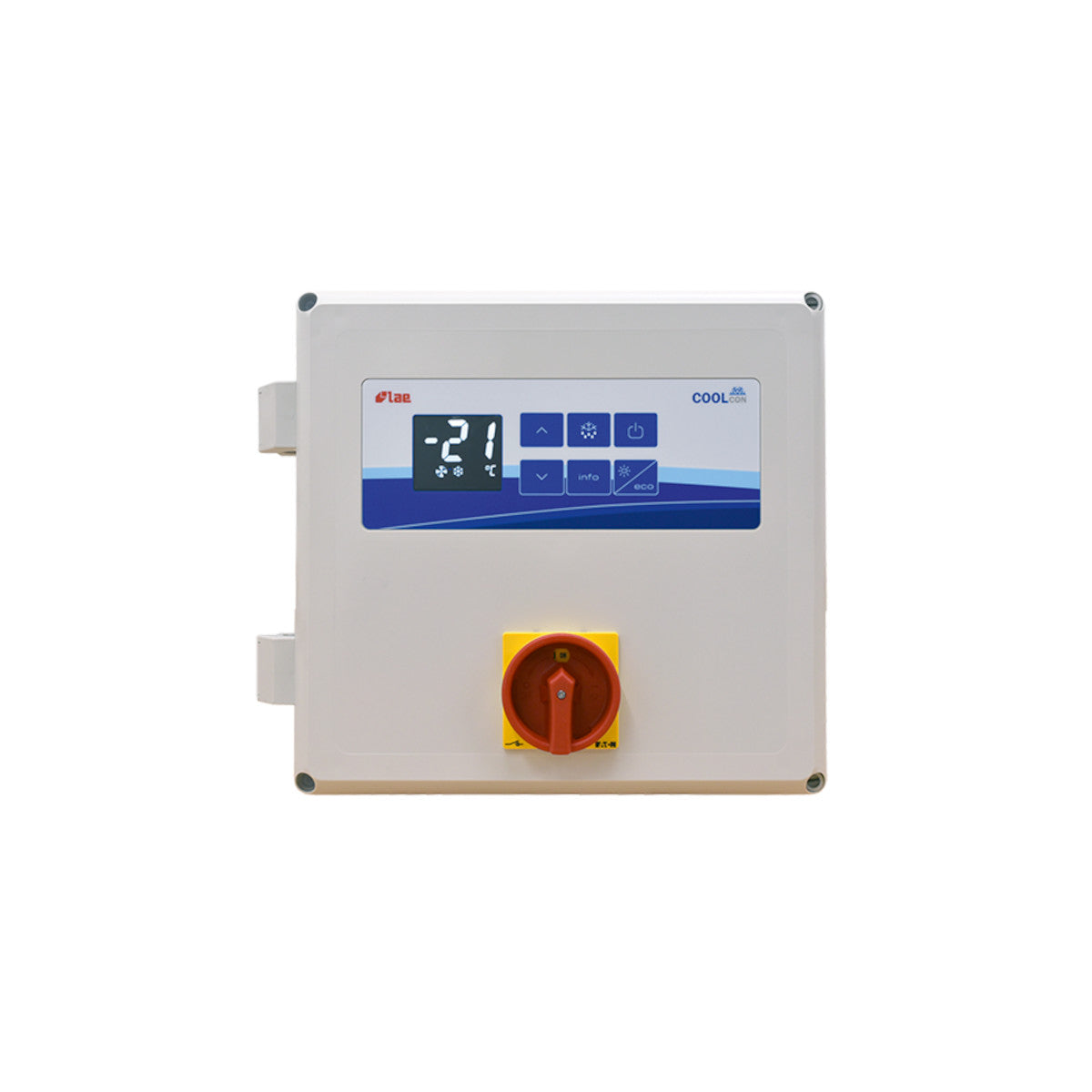

12W 230V without Data Logger Control Cabinet COOLcon

COOLcon Refrigeration Control 12W 230V / 12A. Defrost heater 230V /3A without data logger and 2 sensors

Temperature control, fan operation, defrosting and alarms are handled by the integrated power module BR1-28C1S5W-1BC. The use of new LCD technology offers you a large display with enormously high contrast. The integrated main switch turns on the system, and it regulates according to the parameter settings on the controller. Connections for safety chain (HP/LP, etc.) and "pump-down" operation are available.

Technical data

• Main switch: 25 A
• Sensor measuring range: - 40°C to + 105°C
• Electronics control range: - 50°C to + 110°C
• Resolution: 0.1°
• Sensor inputs: 3 x NTC 10k
• Screw terminals
• RS485
• Protection class: IP 65
• Voltage: 230V/1/50Hz
• Max. operating current compressor 230V: 12 A
• Max. power consumption defrost heater 230V: 1500 A
• Max. operating current evaporator fan 230V: 4 A
• Dimensions (H x W x D): 300 x 315 x 145 mm

Usage All refrigeration controls are equipped with an intelligent power module, which features a real-time clock (6 defrost times, optimized evaporator fan control, START/STOP parameters for controlling timed actions, and a second parameter group). Whether positive or deep-freeze systems, with the Coolcon refrigeration control, you always have the option to optimally adapt your systems to local needs and energy requirements.
