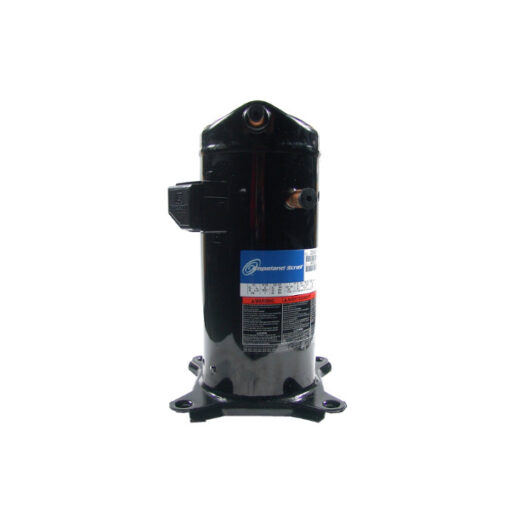

Scroll- Verdichter Copeland ZR34K3E-TFD-522, R134a, R407C, R22, 380-420V/3/50Hz | Scroll- Kompressor ZR34K3E-TFD-522 / ZR34K3E-TFD-930 Copeland.
Allgemeine Merkmale des Kompressors:
- Kältemittel: R134 / R407C / R22
- Netzspannung: 380-420V/3/50Hz
- Kälteleistung: 2,86 kW bei To = -10 °C (R134a)
- Max. Betriebsstrom:: 6,3 A
- Hubvolumen: 8,03 cm³
- Sauganschluss 3/4″
- Druckanschluss 1/2″
- Abmessungen (L X B x H): 246 x 246 x 400 mm
- Nettogewicht: 26 kg
Kälteleistung bei nominalen EN 12900 Bedingungen – Verflüssigungstemp. +40 °C, Unterkühlung 0,0 K, Sauggasüberhitz. 10,0 K.
English description:
Scroll-Compressor ZR34K3E-TFD-522 Copeland. Can be applied with several refrigerants like R134a, R407C, R22.
- refrigerant: R134 / R407C / R22
- voltage: 380-420V/3/50Hz
- refrigerating capacity: 2,86 kW at To = -10 °C (R134a)
- max. working current: 6,3 A
- displacement: 8,03 cm³
- suction: 3/4″
- discharge: 1/2″
- dimensions (L X B x H): 246 x 246 x 400 mm
- weight: 26 kg
Refrigerating capacity at nominally conditions EN 12900 – condensation temp. +40 °C, undercooling 0,0 K, suction gas overheat. 10,0 K.
