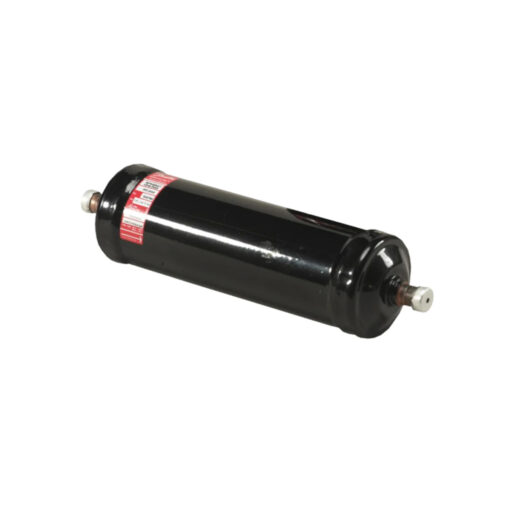

Sammlertrockner Danfoss DMC 2032s 6mm Löt, Danfoss
Filtertrockner Kombi Trockner+Sammler in einem DMC 2032S Danfoss 023Z7007 6 mm Löt ODS , Eliminator 100% Molekularsieb, optimiert für HFKW Kältemittel und POE oder PAG Ölen.
Technische Details des Filtertrockners:
- Filterfläche: 083 cm²
- Nettovolumen: 0,301 L
- Anschlüsse: 6 mm Löt ODF
- Temperaturbereich: -40°C – +70°C
- max. Betriebsdruck: 46 bar
- hohe Trockenleistung
- hohes Rückhaltevermögen bei minimalem Druckverlust
- Zulassungen: UL, PED
- thermisch stabil bis 120 °C
- Anwendung: Kälte-, Klima- und Transportkälteanlagen
- Gehäusematerial: Stahl
- Gewicht: 0,7 kg
English description:
Filter dryer 023Z7007, combined filterdrier and receiver Danfoss DMC 2032S, solid core, 100% molecular sieve, connection: solder 6 mm ODS, filtering surface: 83 cm2, volume: 0,301 L, absorption capacity: 0,71 g, temperature range: -40 – +70 °C, max. working pressure: 46 bar, weight: 0,7 kg, suitable expecially for A/C systems with HFC refrigerant and polyester oil with additives, DMC is optimized to systems where the condenser is incapable of containing the total quantity of refrigerants
